I 625 CD (UT-20718) - Homelite String Trimmer Muffler - Air Cleaner Parts Diagram

String Trimmer

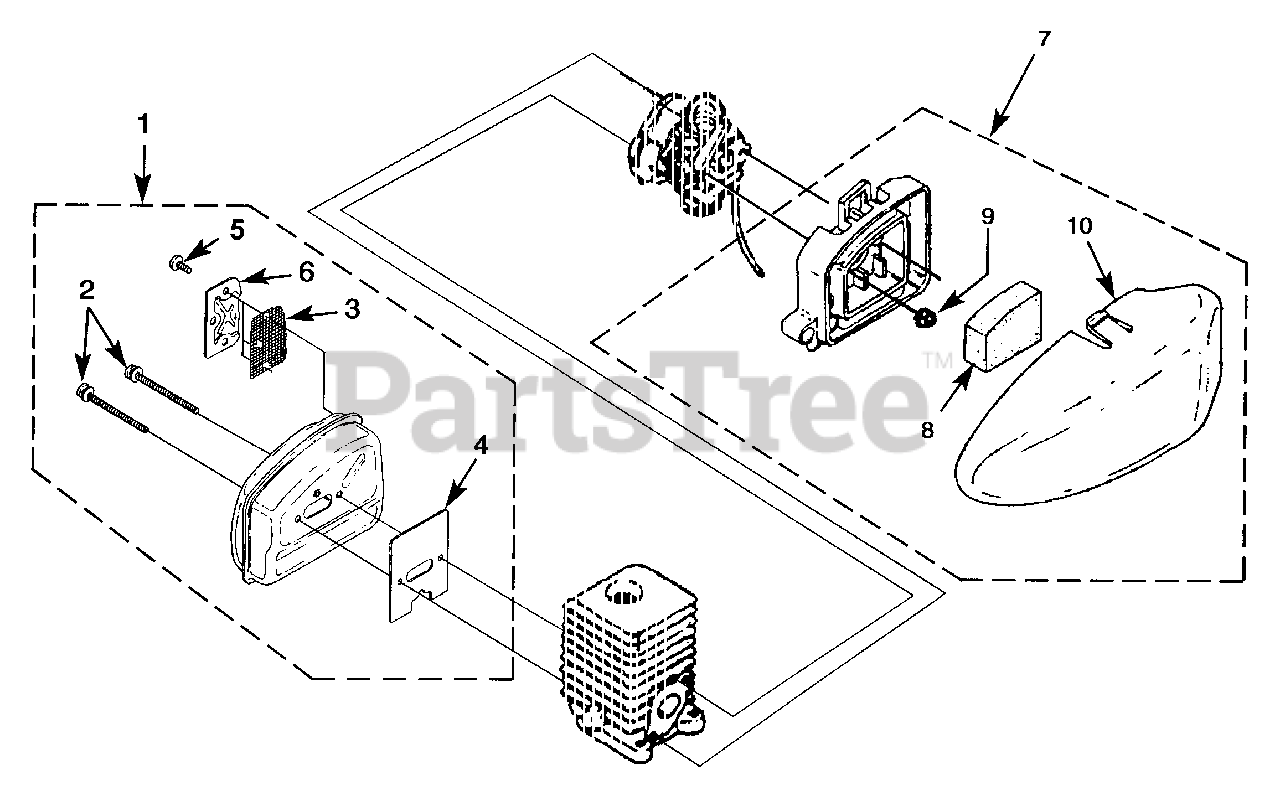

Muffler - Air Cleaner Parts Diagram

  • Title

1

Homelite A07142A

MUFFLER KIT
(Superseded to PA01073)

$35.99

$

Usually ships in 3-7 days

0

2

Homelite 88083

SCREW-Truss Hd. (#10-24 X 2.188")
(Superseded to PS03999)

Note: Torque Specs 50-60 In/Lbs; 5.6-6.8 Nm

$

$

Not available

3

Homelite 06502

SCREEN-Spark

$

$

Not available

4

Homelite 98786C

GASKET-Muffler

Note: Also included with Short block & Cylinder Kits.

$

$

Not available

5

Homelite 82600

SCREW-Truss Hd. (10-24 X .375)

Note: Torque Specs 25-35 In/Lbs; 2.8-4.0 Nm

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 065011

Cover

$

$

Currently unavailable

7

Homelite A07157

AIR FILTER KIT

$

$

Not available

8

Homelite D06615

FILTER-Air
(Superseded to 06615)

$

$

Not available

9

Homelite 81208

NUT-Hex (10-24)

Note: Torque Specs 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available

10

Homelite 070512A

COVER-Air Filter
(Superseded to UP04633)

$

$

Not available
