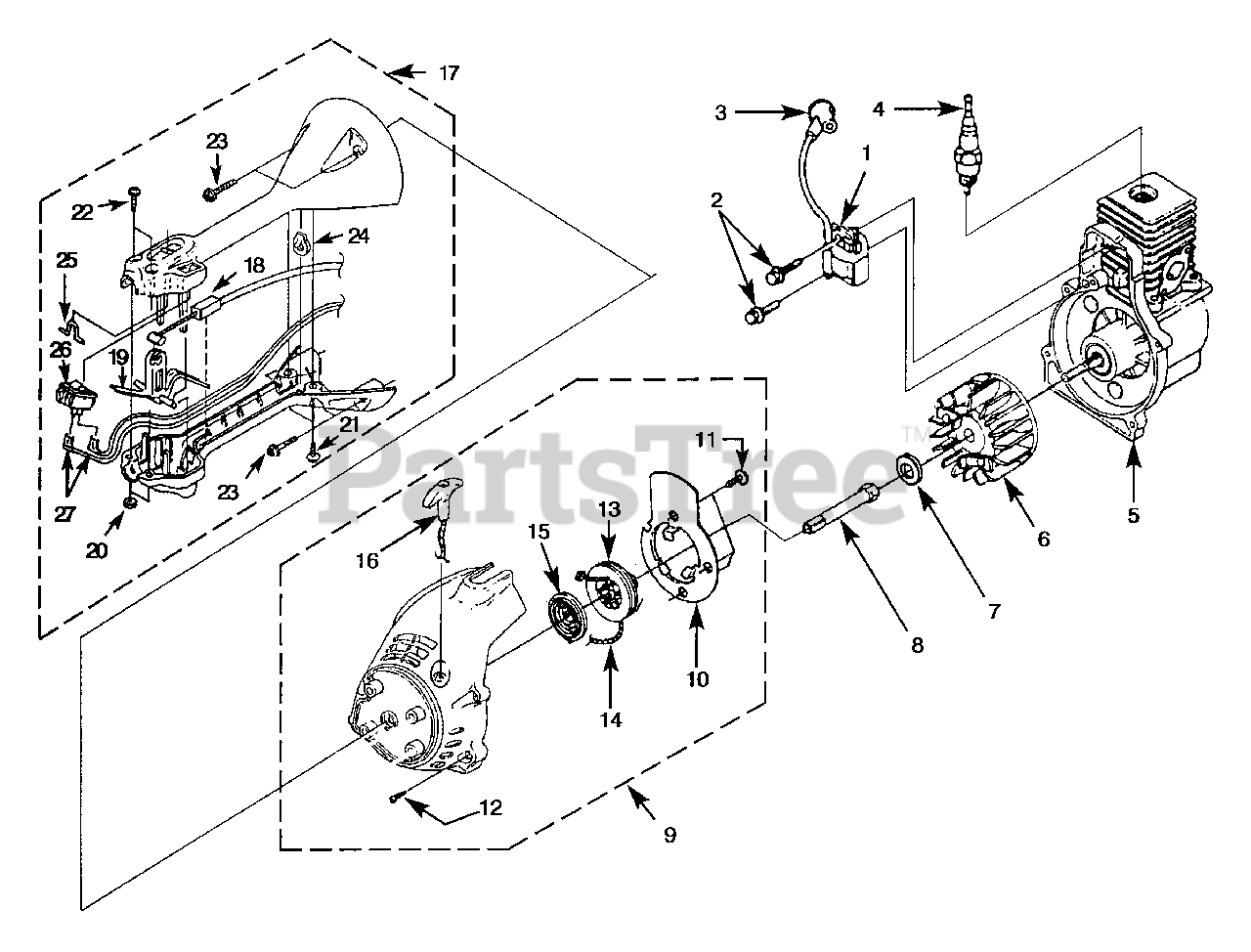

I 625 CD (UT-20718) - Homelite String Trimmer Ignition - Rotor - Starter Parts Diagram

String Trimmer

Ignition - Rotor - Starter Parts Diagram

  • Title

1

Homelite 94711CS

MODULE-Ignition

$

$

Not available

2

Homelite A33055

TERMINAL & COVER

$

$

Not available

3

Homelite 82540

SCREW-Taptite (8-32 X 1")

Note: Torque Specs 30-40 In/Lbs; 3.4-4.5 Nm

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 79252

SPARK PLUG
(Superseded to UP03883)

Note: Torque Specs 120-180 In/Lbs; 13.6-28.4 Nm

$3.49

$

In Stock, only 3 left!

0

5

SHORT BLOCK

Note: (Ref. "Carburetor - Fuel Tank" illustration and parts list)

$

$

Not available

6

Homelite A04158S

ROTOR w/Starter Pawls
(Superseded to UP03856A)

$

$

Not available

7

Homelite PS84065

WASHER-Flat (5/16)

$

$

Not available

8

Homelite 98795A

CONNECTOR-Drive

$

$

Not available

9

Homelite A066012

STARTER ASSEMBLY

$

$

Currently unavailable

10

Homelite 06541A

PLATE-Baffle
(Superseded to UP04630)

$

$

Not available

11

Homelite 82546

SCREW-Plastite (8-16 X 5/8")
(Superseded to 660675001)

Note: Torque Specs 20-40 In/Lbs; 2.3-4.5 Nm

$1.99

$

In Stock, only 1 left!

0

12

Homelite 82538

SCREW-Thread Form. (10-24 X 3/4")

Note: Torque Specs 30-50 In/Lbs; 3.4-5.6 Nm

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 98770A

PULLEY-Starter

$3.99

$

Usually ships in 3-7 days

0

14

Homelite 9789902

ROPE-Starter (42")
(Superseded to 900849002)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$5.49

$

In Stock, only 4 left!

0

16

Homelite PS06598

GRIP-Starter

$

$

Currently unavailable

17

Homelite A07158

CONTROL HANDLE

$

$

Currently unavailable

18

Homelite 06603A

CABLE-Throttle

$

$

Not available

19

Homelite 06605C

TRIGGER
(Superseded to UP04134)

$

$

Not available

20

Homelite 81208

NUT-Hex (#10-24)

$

$

Not available

21

Homelite 82537

SCREW-Plastite (#10-14 X 7/8")

Note: Torque Specs 30-50 In/Lbs; 3.4-5.6 Nm

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 825561

SCREW-Machine (#10-24 X 1 1/4")
(Superseded to UP04113)

Note: Torque Specs 40-50 In/Lbs; 4.5-5.6 Nm

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 82558

SCREW-Plastite (#10-14 X 1 1/8")

Note: Torque Specs 30-40 In/Lbs; 3.4-4.5 Nm

$

$

Not available

24

Homelite 06620

STOP-Drive Shaft

$

$

Not available

25

Homelite 06802

HOOK-Strap

$

$

Not available

26

Homelite 07385

SWITCH-Rocker
(Superseded to 760661001)

$

$

Not available

27

Homelite A07149A

LEADS-Electrical

$

$

Not available
