I 625 CD (UT-20718) - Homelite String Trimmer Carburetor - Fuel Tank Parts Diagram

String Trimmer

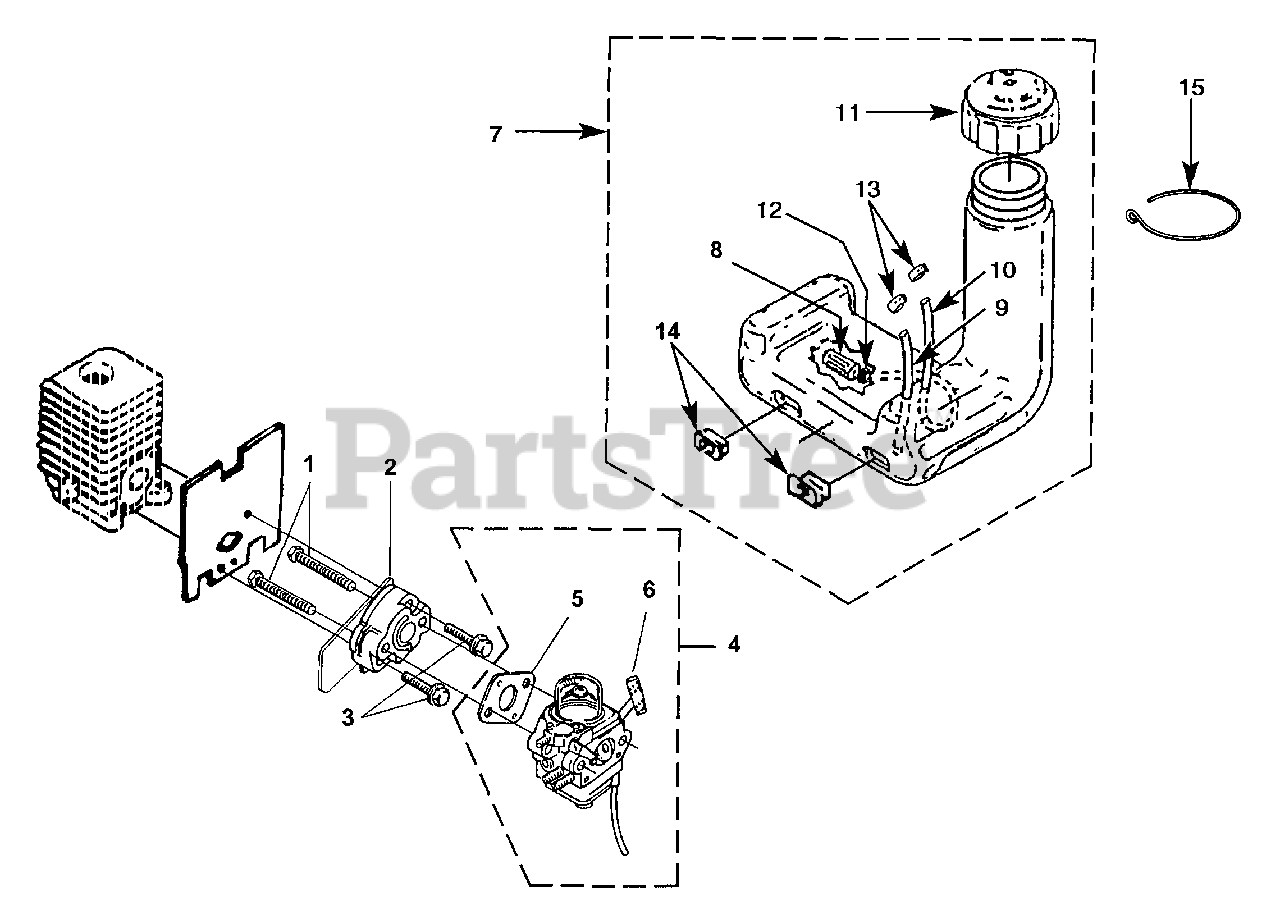

Carburetor - Fuel Tank Parts Diagram

  • Title

1

Homelite 04474

SCREW-Machine (10-24 X 2 1/4")

$

$

Not available

2

Homelite 06900A

HEAT DAM

$

$

Not available

3

Homelite 093221

SCREW-Sems (10-24 X 1.110")
(Superseded to 660662001)

Note: Torque Specs 40-50 In/Lbs; 4.5-5.6 Nm; Red 262 Required Loctite; Also included with Short block & Cylinder Kits

$

$

Not available

4

Homelite UP00608

CARBURETOR
(Superseded to UP00608A)

$

$

Not available

5

Homelite 98766A

GASKET-Carburetor
(Superseded to 900994004)

$

$

Not available

6

Homelite PS00236

LEVER-Choke Rod (ZAMA)
(Superseded to UP04278)

$

$

Not available

7

Homelite A07141C

FUEL TANK COMPLETE

$

$

Not available

8

Homelite 49422

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

9

Homelite 9477222

TUBING-Rubber (5 1/2")

$

$

Not available

10

Homelite 0745428

TUBING-Rubber (7")
(Superseded to UP04694)

$

$

Not available

11

Homelite UP00106

FUEL CAP
(Superseded to 300758006)

$

$

Not available

12

Homelite 98268

CLAMP
(Superseded to 690765001)

$1.99

$

In Stock, Qty 7

0

13

Homelite 93426

CLAMP

$

$

Not available

14

Homelite 98792

BUMPER-Rubber

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 07183

SUPPORT-Wire
(Superseded to UP04635)

$

$

Not available
