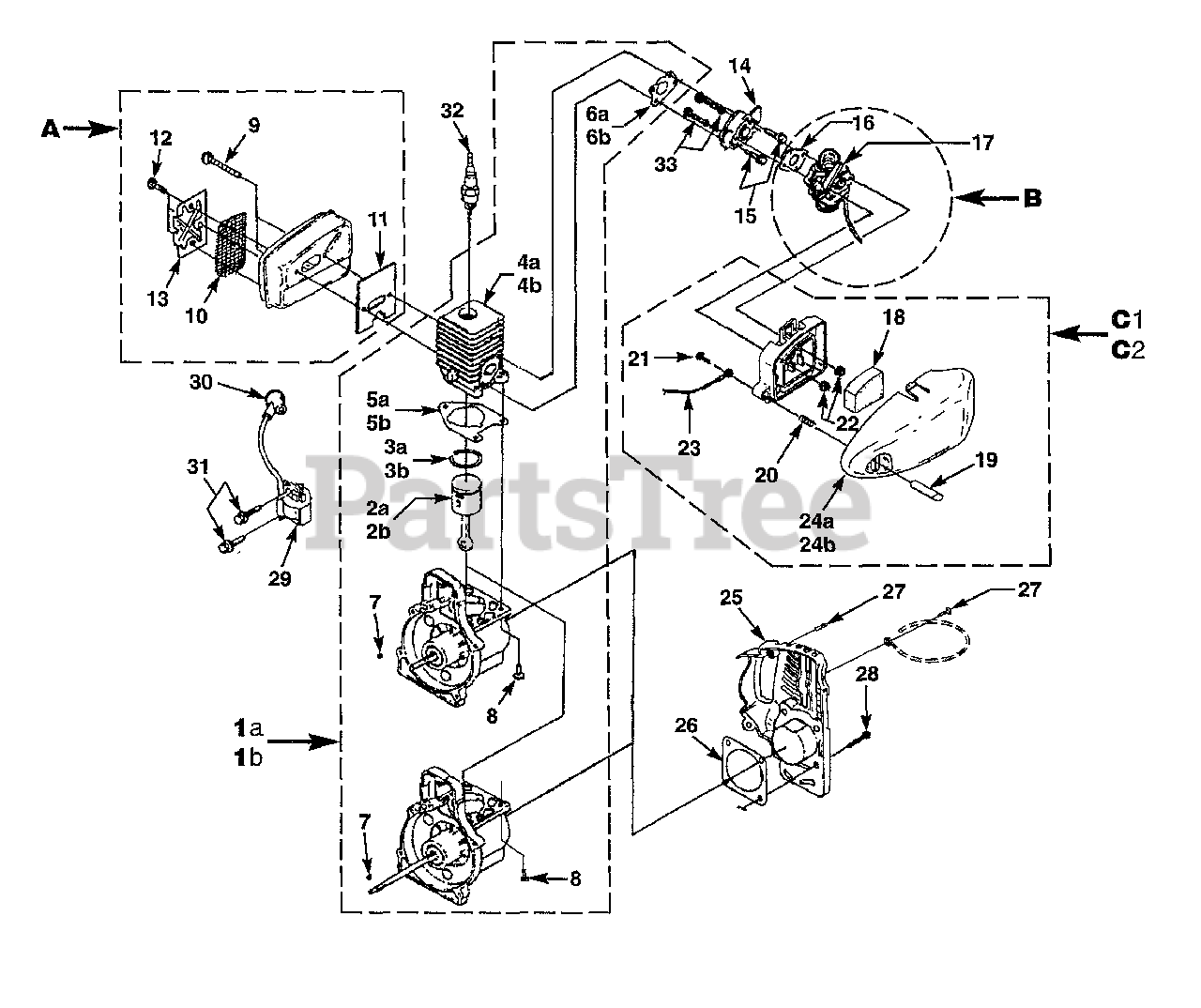

I 625 CD (UT-20624) - Homelite String Trimmer Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1A

Homelite A07134

SHORT BLOCK (30CC Non-Clutch Models)
(Superseded to UP00386)

$

$

Not available

1B

Homelite A07135

SHORT BLOCK (30CC Clutch Models)
(Superseded to UP03121A)

$406.99

$

Usually ships in 3-7 days

0

2A

Homelite A03599

30CC PISTON ROD
(Superseded to UP03037)

$91.99

$

In Stock, only 1 left!

0

3A

Homelite 03379

RING-Piston

$

$

Currently unavailable

4A

Homelite A07146A

30CC CYLINDER KIT
(Superseded to UP07146)

$

$

Not available

5A

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

6A

Homelite 06900A

GASKET-Heat Dam

$

$

Not available

11

Homelite 98786C

GASKET-Muffler

$

$

Not available

26

Homelite 06443A

GASKET-Crankcase Cover
(Superseded to 900954001)

$

$

Not available

7

Homelite 69250

KEY-Woodruff

$

$

Not available

8

Homelite 825691

SCREW-Thread Form. (10-24 X 3/4")

$

$

Not available

4B

Homelite A07145

25CC CYLINDER KIT
(Superseded to UP07145)

$74.99

$

In Stock, only 1 left!

0

5B

Homelite 04388B

GASKET-Cylinder
(Superseded to 985259001)

$

$

Not available

6B

Homelite 06900A

GASKET-Heat Dam

$

$

Not available

11

Homelite 98786C

GASKET-Muffler

$

$

Not available

26

Homelite 06443

GASKET-Crankcase Cover

$

$

Currently unavailable

2B

Homelite A04258

25CC PISTON & ROD
(Superseded to UP00768)

$

$

Not available

3B

Homelite 96935

RING-Piston
(Superseded to UP03838)

$

$

Not available

A

Homelite A07142

MUFFLER KIT
(Superseded to UP04634)

$35.99

$

Usually ships in 3-7 days

0

9

Homelite 82613

SCREW-Machine (#10-24 X 2")

$4.99

$

Usually ships in 3-7 days

0

10

Homelite 06502

SCREEN-Spark

$

$

Not available

11

Homelite 98786C

GASKET-Muffler

$

$

Not available

12

Homelite 80939

SCREW-Machine-Pan Slotted (8-32 X 3/4")
(Superseded to 82600)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 065011

COVER

$

$

Currently unavailable

14

Homelite 98768

HEAT DAM
(Superseded to 98768A)

$

$

Not available

15

Homelite 825491

SCREW-Taptite (10-24 X 1")
(Superseded to UP05542)

$

$

Not available

B

Homelite A07139

CARBURETOR
(Superseded to A04445A)

$

$

Not available

16

Homelite 987661

GASKET-Carburetor

$

$

Not available

17

Homelite 07377

LEVER-Choke Rod-(ZAMA)
(Superseded to UP04278)

$

$

Not available

Homelite 07376

LEVER-Choke Rod-(WALBRO)

$

$

Not available

C1

Homelite A07140

AIR FILTER KIT W/PUSH-BUTTON STOP

$

$

Currently unavailable

18

Homelite D06615

FILTER-Air
(Superseded to 06615)

$

$

Not available

19

Homelite 06618

BUTTON-Switch
(Superseded to UP04687)

$

$

Not available

20

Homelite 95020

SPRING-Compression
(Superseded to UP04716)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 82513

SCREW-Plastite (#6-19 X 1/2")

$2.49

$

In Stock, Qty 5

0

22

Homelite 81208

NUT-HEX (10-24)

$

$

Not available

23

Homelite A07238

LEAD-Electrical
(Superseded to 290218001)

$

$

Not available

24A

Homelite 06622

COVER-Air Filter
(Superseded to UP04688)

$

$

Not available

C2

Homelite A07157

AIR FILTER KIT W/O PUSH-BUTTON STOP

$

$

Not available

18

Homelite D06615

FILTER-Air
(Superseded to 06615)

$

$

Not available

22

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

24B

Homelite 07051

COVER-Air Filter
(Superseded to UP04633)

$

$

Not available

25

Homelite A07138

CRANKCASE COVER

$

$

Not available

26

Homelite 06443A

GASKET-Crankcase Cover
(Superseded to 900954001)

$

$

Not available

27

Homelite 82563

SCREW-Plastite (#10 X 3/4")

$1.99

$

In Stock, Qty 6

0

28

Homelite 825491

SCREW-Taptite(10-24 X 5")
(Superseded to UP05542)

$

$

Not available

29

Homelite 94711CS

MODULE-Ignition

$

$

Not available

30

Homelite A33055

TERMINAL & COVER

$

$

Not available

31

Homelite 82540

SCREW-Taptite (8-32 X 1")

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 79252

SPARK PLUG
(Superseded to UP03883)

$3.49

$

In Stock, only 3 left!

0

33

Homelite 04474

SCREW-Machine (50-24 X 2 1/4")

$

$

Not available
