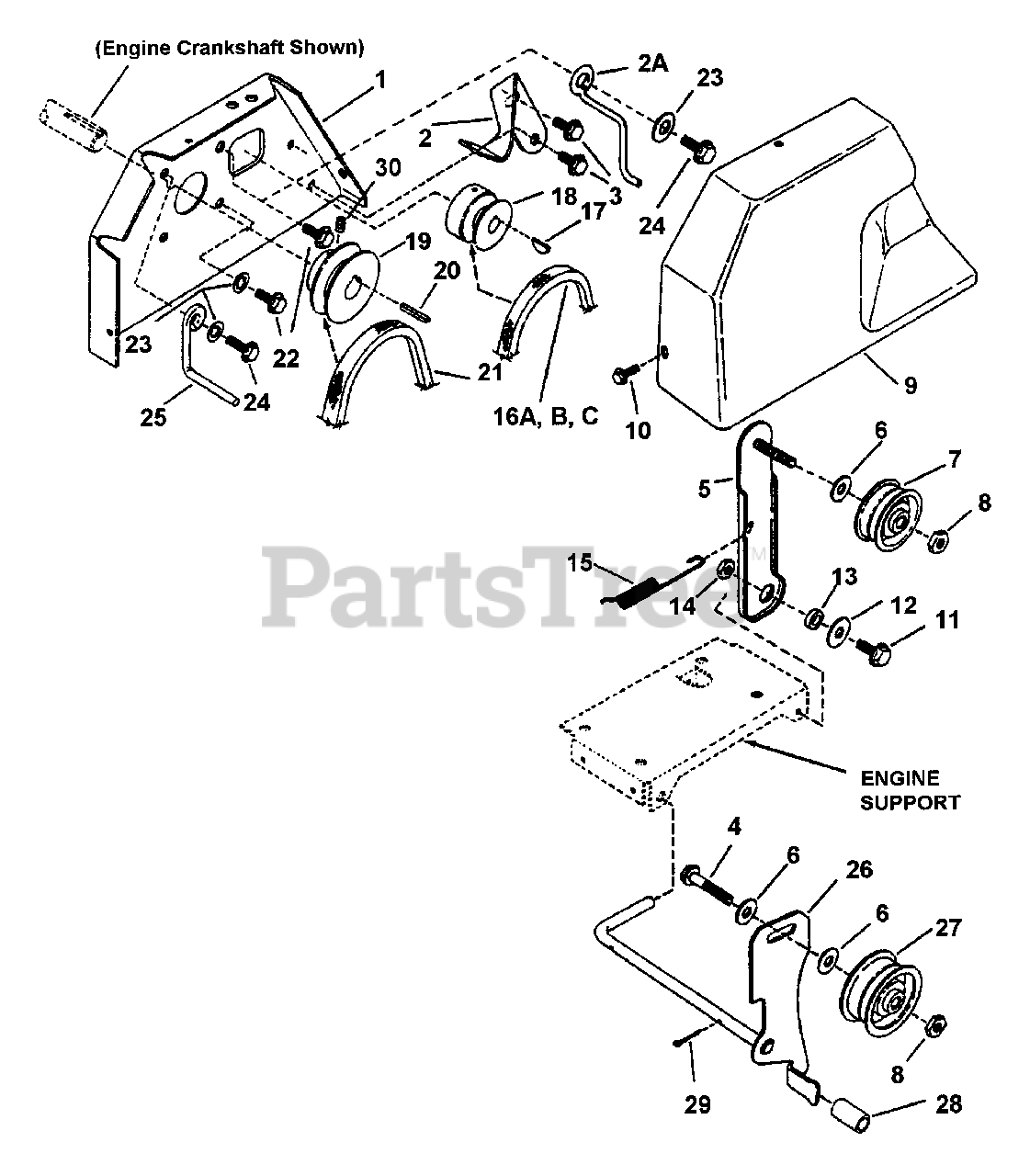

I 6223 (80589) - Snapper 22" Snow Thrower, 6hp Engine, Pulley, Idler, Clutch System Parts Diagram

22" Snow Thrower, 6hp

Engine, Pulley, Idler, Clutch System Parts Diagram

  • Title

1

Snapper 7045185

PLATE, Engine
(Superseded to 7045185YP)

$39.99

$

Usually ships in 2-12 days

0

2

Snapper 7038521

GUIDE, Belt

Note: (I4223 & I5223)

$

$

Not available

Snapper 7045186

GUIDE, Belt
(Superseded to 7045186YP)

Note: (I5225 & EI5223); (Looks similar to item 2)

$20.99

$

Usually ships in 2-12 days

0

2A

Snapper 7038534

GUIDE, Belt
(Superseded to 7038534YP)

Note: (I6223, I7243 & EI7243)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 7090322

SCREW, 5/16-18 x 1/2" Hex Head Cap

$2.99

$

In Stock, only 2 left!

0

4

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 704289)

Note: Was 90503

$4.99

$

In Stock, Qty 12

0

5

Snapper 7053875

BRACKET, Idler

Note: (I4223 & I5223)

$

$

Not available

Snapper 7058462

BRACKET, Idler
(Superseded to 7058462YP)

Note: (I55223, EI55223, I6223, I7243 & EI7243)

$29.99

$

Usually ships in 2-12 days

0

6

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7010948

IDLER, 2" O.D.
(Superseded to 1716615SM)

$22.99

$

Usually ships in 2-12 days

0

8

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, Grade B or 5
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

9

Snapper 7035083

COVER, Belt

$

$

Not available

10

Snapper 7091075

SCREW, #10-24 x 5/8" H. Wshr. Self-Tap, Gr. 5
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

11

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, Grade 5
(Superseded to 703585)

Note: Was 90636

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7014098

WASHER, 5/16" Flat
(Superseded to 7014098SM)

$16.99

$

In Stock, only 2 left!

0

13

Snapper 7015698

SPACER

$

$

Not available

Snapper 7072576

SPACER

Note: (I55223, EI55223, I7243 & EI7243)

$

$

Not available

14

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, Grade 8 or 5
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 17

0

15

Snapper 7015188

SPRING
(Superseded to 7015188YP)

$14.99

$

Usually ships in 2-12 days

0

16A

Snapper 7015151

BELT, Traction
(Superseded to 7015151YP)

Note: (I4223 & I5523)

$24.99

$

In Stock, Qty 5

0

16B

Snapper 7023416

BELT, Traction
(Superseded to 7023416YP)

Note: (I6223, I7243 & EI7243)

$26.99

$

In Stock, only 3 left!

0

16C

Snapper 7045214

BELT, Traction
(Superseded to 7045214YP)

Note: (I55223 & EI55223)

$26.99

$

In Stock, Qty 5

0

17

Snapper 7010614

KEY, 1/8 x 5/8" Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7015179

PULLEY, P.T.O.

Note: (I4223, I55223 & EI55223)

$

$

Not available

Snapper 7023622

PULLEY, P.T.O.
(Superseded to 7023622YP)

Note: (I6223, I7243 & EI7243)

$39.99

$

Usually ships in 2-12 days

0

19

Snapper 7015180

PULLEY, Auger Drive

$

$

Not available

20

Snapper 7010061

KEY, 3/16x3/16x1"
(Superseded to 7010061SM)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7015152

BELT, Blower
(Superseded to 7015152YP)

$28.99

$

In Stock, only 4 left!

0

22

Snapper 7090322

SCREW, 5/16-24 x 1/2" Hex Head Cap

$2.99

$

In Stock, only 2 left!

0

23

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7091021

SCREW, 5/16-24 x 3/4" Gr. 5
(Superseded to 703336)

Note: (I4223, I55223 & EI55223)

$4.49

$

In Stock, Qty 5

0

Snapper 7090233

SCREW, 5/16-24 x 3/4" Gr. 5
(Superseded to 703336)

Note: (I6223, I7243 & EI7243)

$4.49

$

In Stock, Qty 5

0

25

Snapper 7015226

GUIDE, Belt

$

$

Not available

26

Snapper 7047875

BRAKE ARM & ROD

$

$

Not available

27

Snapper 7014340

IDLER, 2-1/2" Flat
(Superseded to 7014340YP)

$19.99

$

In Stock, Qty 6

0

28

Snapper 7015177

TUBE, Brake
(Superseded to 7015177YP)

$15.99

$

Usually ships in 2-12 days

0

29

Snapper 7090360

PIN, 1/16 x 3/4" Cotter

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 7090471

SCREW, 1/4-20 x 5/16 Socket Set
(Superseded to 7090471YP)

$4.49

$

Usually ships in 2-12 days

0

31

Snapper 7041995

MUFFLER GUARD, Tecumseh 5.5 HP

Note: (Not shown)

$

$

Not available
