I 6223 (80589) - Snapper 22" Snow Thrower, 6hp Augers, Impeller, Gear Case, Shaft (Models Built 2000 And Later) Parts Diagram

22" Snow Thrower, 6hp

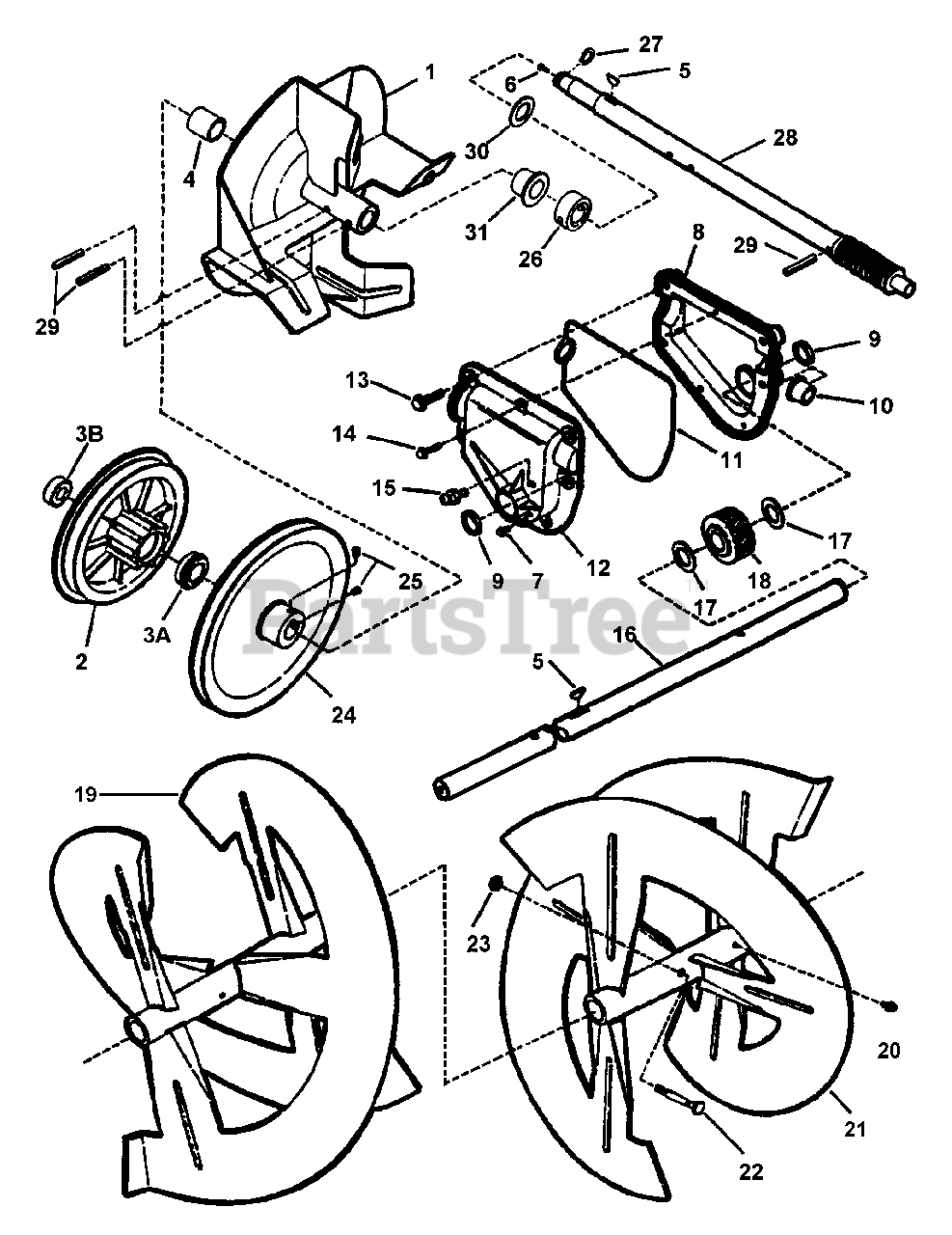

Augers, Impeller, Gear Case, Shaft (Models Built 2000 And Later) Parts Diagram

  • Title

1

Snapper 7072423

WELDMENT, Impeller (Fan)
(Superseded to 7063159YP)

$481.99

$

Usually ships in 2-12 days

0

2

Snapper 7051566

ASSEMBLY, Drive Plate
(Superseded to 7051566YP)

Note: (Includes Items 3A & 3B)

$159.99

$

Usually ships in 2-12 days

0

3A

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

3B

Snapper 7014295

BEARING, Ball
(Superseded to 7014295YP)

$16.99

$

Usually ships in 2-12 days

0

4

Snapper 7017865

SPACER, .76 I.D. x 1" O.D. x .25" Thick

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7010211

KEY, #9 (3/16 x 3/4") Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

6

Snapper 7090929

SCREW, 1/4-20 x 1/2" Truss Head Self-Tapping (Torx)

$3.49

$

In Stock, only 1 left!

0

7

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

8

Snapper 7019779

COVER, Gear Case (Left Hand)
(Superseded to 7019779YP)

$152.99

$

Usually ships in 2-12 days

0

9

Snapper 7015136

SEAL

$

$

Not available

10

Snapper 7015230

BUSHING
(Superseded to 7015230YP)

$5.49

$

In Stock, Qty 11

0

11

Snapper 7015137

"O" RING
(Superseded to 7015137YP)

$20.99

$

In Stock, Qty 5

0

12

Snapper 7019780

COVER, Gear Case (Right Hand)
(Superseded to 7019780YP)

$71.99

$

Usually ships in 2-12 days

0

13

Snapper 7090290

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tapping
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

14

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Self-Tap, Grade 5
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

15

Snapper 7014247

FITTING, Lube 1/4-28 Thread Forming
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

16

Snapper 7029554

SHAFT, Auger
(Superseded to 7029554YP)

$91.99

$

Usually ships in 2-12 days

0

17

Snapper 7013852

WASHER, Thrust
(Superseded to 7013852YP)

$8.99

$

Usually ships in 2-12 days

0

18

Snapper 7027652

GEAR, Worm
(Superseded to 7027652YP)

$106.99

$

In Stock, Qty 5

0

19

Snapper 7049969

AUGER, (Left Hand)

$

$

Not available

20

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

Note: (For 3/16" dia. hole)

$3.49

$

In Stock, Qty 12

0

21

Snapper 7049968

AUGER, (Right Hand)

$

$

Not available

22

Snapper 1668344

PIN, Shear, .248 ID. X 1.75 LG
(Superseded to 703063)

Note: was 7015257

$4.49

$

In Stock, Qty 20+

0

23

Snapper 1918447

COTTER PIN, .094 X0.750 BLK
(Superseded to 703312)

Note: was 7090372

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7013867

PULLEY, 8.36" O.D.
(Superseded to 7013867YP)

Note: (Includes Setscrews)

$82.99

$

Usually ships in 2-12 days

0

25

Snapper 7090201

SCREW, 5/16-18 x 5/16 Hex Socket Set
(Superseded to 7090201SM)

$

$

Not available

26

Snapper 7021961

COLLAR
(Superseded to 7021961YP)

$27.99

$

Usually ships in 2-12 days

0

27

Snapper 7010776

RING, 1/2" Heavy Duty External Retaining
(Superseded to 7010776YP)

$3.99

$

In Stock, only 2 left!

0

28

Snapper 7019783

SHAFT, Pinned Impeller (Worm)
(Superseded to 7019783YP)

$95.99

$

In Stock, only 1 left!

0

29

Snapper 7090842

ROLL-PIN, 1/4 x 1-1/4"
(Superseded to 7090842YP)

$4.49

$

In Stock, only 2 left!

0

30

Snapper 7032479

WASHER, Thrust
(Superseded to 7032479YP)

$

$

Not available

31

Snapper 7015363

BEARING
(Superseded to 7015363SM)

$

$

Not available
