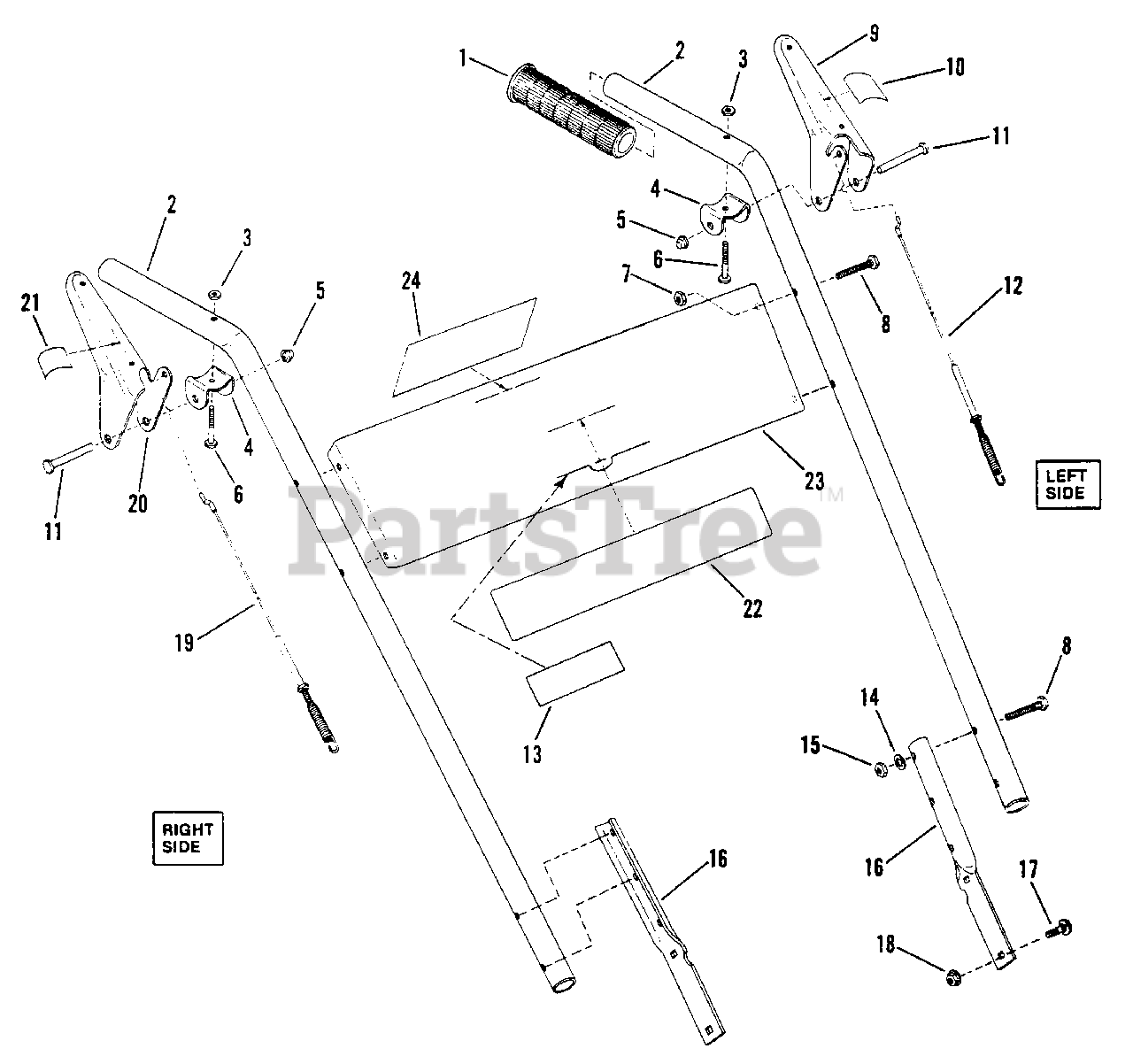

I 5240 (86518) - Snapper 24" Snow Thrower, 5hp Handles, Controls Parts Diagram

24" Snow Thrower, 5hp

Handles, Controls Parts Diagram

  • Title

1

Snapper 7011870

GRIP, Handle
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

2

Snapper 7033340

BAR, Handle (SERIES 0)
(Superseded to 7033340YP)

Note: Was 36147

$36.99

$

Usually ships in 2-12 days

0

Snapper 7032921

BAR, Handle (SERIES 2)
(Superseded to 7032921YP)

$11.99

$

Usually ships in 2-12 days

0

Snapper 7033340

BAR, Handle (I5222 & '92 - I7222)
(Superseded to 7033340YP)

$36.99

$

Usually ships in 2-12 days

0

3

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

4

Snapper 7032921

BRACKET, Handle
(Superseded to 7032921YP)

Note: Was 32119

$11.99

$

Usually ships in 2-12 days

0

Snapper 7032921

BRACKET, Handle
(Superseded to 7032921YP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 7091020

NUT, 1/4 Push
(Superseded to 7091020YP)

Note: Was 90489

$4.49

$

In Stock, Qty 20+

0

Snapper 7091020

NUT, 1/4 Push
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7090552

SCREW, 1/4-28 x 1-3/8" Hex Head Cap
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

Snapper 7091025

SCREW, 1/4-28 x 1-3/8" Hex Head Cap
(Superseded to 7091025YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 19

0

8

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap
(Superseded to 703906)

Note: Was 90211

$4.99

$

In Stock, only 4 left!

0

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap
(Superseded to 703906)

Note: Was 91066

$4.99

$

In Stock, only 4 left!

0

9

Snapper 7032907

HANDLE, Left Side
(Superseded to 7032907YP)

Note: Was 39771

$29.99

$

Usually ships in 2-12 days

0

Snapper 7032907

HANDLE, Left Side
(Superseded to 7032907YP)

$29.99

$

Usually ships in 2-12 days

0

10

Snapper 7013925

DECAL, Traction Clutch (SERIES 0)

$

$

Not available

Snapper 7016573

DECAL, Traction Clutch (SERIES 2)

$

$

Currently unavailable

11

Snapper 7015167

PIN, 1/4x1-7/8" Clevis

$

$

Not available

Snapper 7016297

PIN, 1/4x1-7/8" Clevis

$

$

Not available

12

Snapper 7018746

CABLE, Clutch Left Side (Short)
(Superseded to 7018746YP)

$17.99

$

Usually ships in 2-12 days

0

13

Snapper 7015357

DECAL, Model 4220

$

$

Not available

Snapper 7015358

DECAL, Model 5240
(Superseded to 7015358YP)

$6.49

$

Usually ships in 2-12 days

0

Snapper 7022384

DECAL, Model 7222

$

$

Currently unavailable

Snapper 7023697

DECAL, Model I5222

$

$

Currently unavailable

14

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

Note: Was 91068

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 91069

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7038208

BRACE, Handle Bar
(Superseded to 7038208YP)

$39.99

$

Usually ships in 2-12 days

0

17

Snapper 7090316

BOLT, 5/16-18 x 5/8" Carriage
(Superseded to 703225)

Note: Was 90605

$3.99

$

In Stock, Qty 20+

0

Snapper 7091077

BOLT, 5/16-18 x 5/8" Carriage
(Superseded to 7091077YP)

$

$

Not available

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7018747

CABLE, Auger Right Side (Long)
(Superseded to 7018747YP)

$16.99

$

Usually ships in 2-12 days

0

20

Snapper 7032908

HANDLE, Right Side

Note: Was 39772

$

$

Not available

Snapper 7032908

HANDLE, Right Side

$

$

Not available

21

Snapper 7013926

DECAL, Blower Clutch (SERIES 0)

$

$

Not available

Snapper 7016574

DECAL, Blower Clutch (SERIES 2)

$

$

Not available

22

Snapper 7019295

DECAL, SNAPPER (SERIES 0)
(Superseded to 7019295YP)

Note: Was 18593

$13.99

$

In Stock, only 4 left!

0

Snapper 7019295

DECAL, SNAPPER (SERIES 2)
(Superseded to 7019295YP)

Note: Was 16648

$13.99

$

In Stock, only 4 left!

0

23

Snapper 7036148

PANEL, Control

$

$

Not available

24

Snapper 7015168

DECAL, Instruction

$

$

Currently unavailable
