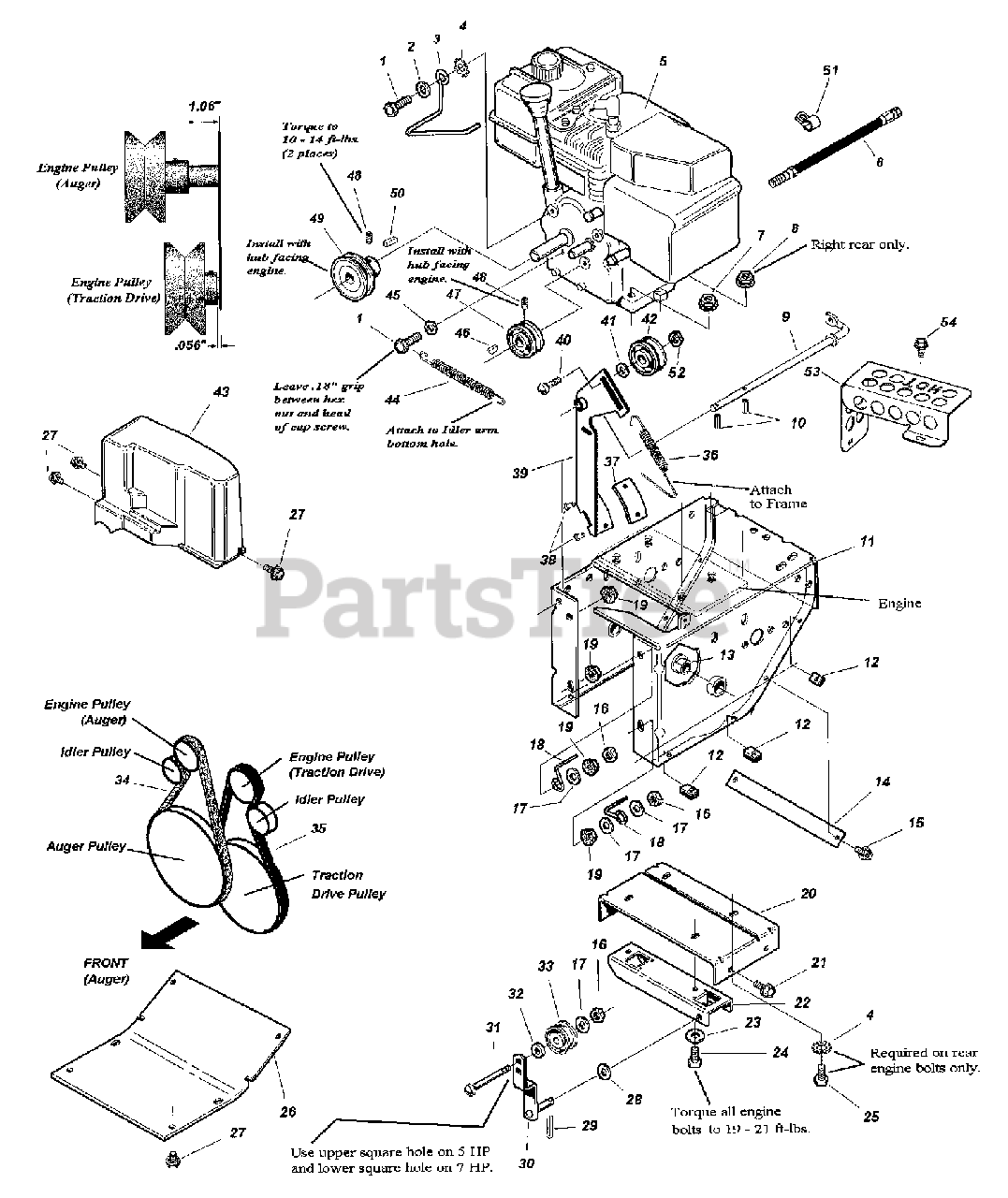

I 5225 (85665) - Snapper 22" Snow Thrower, 5hp ENGINE, PULLEYS, IDLER (5 HP Tecumseh) Parts Diagram

22" Snow Thrower, 5hp

ENGINE, PULLEYS, IDLER (5 HP Tecumseh) Parts Diagram

  • Title

1

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap, GR 5
(Superseded to 703336)

Note: or 1921515

$4.49

$

In Stock, Qty 5

0

2

Snapper 1924874

WASHER, 5/16" Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 1715136

WIRE, Belt Stop
(Superseded to 1725424SM)

Note: replaced by 7100117 & 7100118; see Briggs Engine Page inset

$9.99

$

Usually ships in 2-12 days

0

4

Snapper 7090395

LOCKWASHER, 5/16" Exterior Tooth
(Superseded to 703138)

Note: or 1920427

$3.99

$

In Stock, Qty 7

0

5

Snapper LH195SA-67427V

* ENGINE, 5HP Tecumseh

Note: Model LH195SA-67427V

$

$

Currently unavailable

6

Snapper 1726942

HOSE, Oil Drain
(Superseded to 1726942SM)

$28.99

$

Usually ships in 2-12 days

0

7

Snapper 1931277

NUT, 5/16-18 Hex Flange Lock- small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Snapper 931277

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 1715092

ROD, Idler
(Superseded to 1715092SM)

$20.99

$

Usually ships in 2-12 days

0

10

Snapper 7090844

ROLL PIN, 3/16 x 3/4"
(Superseded to 2816169SM)

Note: or 916169

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7072556

WELDMENT, Intermediate Frame- Red

$

$

Currently unavailable

12

Snapper 1926018

SPEED NUT, 1/4-20 U-Type
(Superseded to 1926018SM)

$4.49

$

In Stock, Qty 12

0

13

Snapper 1666001

BUSHING, 1.00 long
(Superseded to 1666001SM)

$6.99

$

In Stock, Qty 9

0

14

Snapper 1715559

SUPPORT, Tie Bar
(Superseded to 1715559SM)

$14.99

$

Usually ships in 2-12 days

0

15

Snapper 1929477

SCREW, #10-24 x 1/2" Hex Washer Self-Tap
(Superseded to 1929477SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 1960251

JAM NUT, 3/8-16 Hex Center Lock
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

17

Snapper 1924940

WASHER, 3/8" Flat
(Superseded to 703878)

Note: or 7090122

$3.99

$

In Stock, Qty 20+

0

18

Snapper 1674315

ROD, Belt Guide
(Superseded to 1674315SM)

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 1922694

NUT, 3/8-16 Hex Nyloc Heavy Thin
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Snapper 1715756

SUPPORT, Frame
(Superseded to 1715756SM)

$33.99

$

Usually ships in 2-12 days

0

21

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

Note: or 1924856

$4.49

$

In Stock, only 3 left!

0

22

Snapper 1715111

SUPPORT, Pivot
(Superseded to 1715111SM)

$12.99

$

Usually ships in 2-12 days

0

23

Snapper 1919381

WASHER, 5/16" Flat
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 7091908

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 7091908YP)

Note: or 1922127

$4.99

$

Usually ships in 2-12 days

0

25

Snapper 7091908

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 7091908YP)

Note: or 1922127

$4.99

$

Usually ships in 2-12 days

0

26

Snapper 7072554

COVER, Bottom- Red
(Superseded to 7072554YP)

$21.99

$

Usually ships in 2-12 days

0

27

Snapper 7090362

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

28

Snapper 1925125

WASHER, 7/16" Flat
(Superseded to 1925125SM)

$6.49

$

In Stock, only 2 left!

0

29

Snapper 7091598

COTTER PIN, 1/8 x 3/4"
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

30

Snapper 1715112

WELDMENT, Idler Arm
(Superseded to 1715112SM)

$38.99

$

Usually ships in 2-12 days

0

31

Snapper 1960268

BOLT, 3/8-16 x 1-1/4" Short Square Neck Carriage
(Superseded to 1960268SM)

$4.49

$

In Stock, Qty 9

0

32

Snapper 174870

SPACER, .377 ID x .75 OD x .312 Long
(Superseded to 2174870SM)

$45.99

$

Usually ships in 2-12 days

0

33

Snapper 118414

PULLEY, Idler
(Superseded to 2118414SM)

$26.99

$

Usually ships in 2-12 days

0

34

Snapper 1717393

BELT, V Groove, 4L Section; 36.00" nom. effective length
(Superseded to 1717393SM)

Note: Auger Drive

$32.99

$

In Stock, only 4 left!

0

35

Snapper 1715127

BELT, V Groove, 3L Section; 35.25" effective length
(Superseded to 1715127SM)

Note: Traction Drive

$24.99

$

Usually ships in 2-12 days

0

36

Snapper 1715118

SPRING, Extension
(Superseded to 1715118SM)

$8.49

$

Usually ships in 2-12 days

0

37

Snapper 1669313

PAD, Brake
(Superseded to 1669313SM)

$14.99

$

In Stock, Qty 5

0

38

Snapper 925160

RIVET, Blind
(Superseded to 2825160SM)

$4.49

$

In Stock, Qty 8

0

39

Snapper 7500303

ASSEMBLY, Idler Arm w/Brake Pad
(Superseded to 7500303YP)

Note: replaces 1717320; incl. idler arm weldment (7400177)

$162.99

$

Usually ships in 2-12 days

0

40

Snapper 7091158

BOLT, 3/8-16 x 1-3/4 Short Square Neck Carriage, GR 5
(Superseded to 703879)

$3.99

$

In Stock, Qty 5

0

41

Snapper 1922755

WASHER, 3/8" Flat (.41 ID x 1.00 OD x .13 Thick)
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

42

Snapper 1668477

PULLEY, Idler
(Superseded to 1668477SM)

$23.99

$

In Stock, Qty 20+

0

43

Snapper 1725379

COVER, Belt
(Superseded to 1725379SM)

$30.99

$

In Stock, only 2 left!

0

44

Snapper 1720237

SPRING, Idler- Extension
(Superseded to 1720237SM)

$7.99

$

Usually ships in 2-12 days

0

45

Snapper 7092031

JAM NUT, 5/16-24 Hex
(Superseded to 7092031SM)

$3.49

$

Usually ships in 2-12 days

0

46

Snapper 924819

KEY - Hi Pro .125 x .625 HP 504 SAE1035
(Superseded to 2824819SM)

$3.49

$

Usually ships in 2-12 days

0

47

Snapper 1674325

PULLEY, V Groove
(Superseded to 1674325SM)

$29.99

$

Usually ships in 2-12 days

0

48

Snapper 7090201

SET SCREW, 5/16-18 x 5/16" Hex Recess, Cup Point
(Superseded to 7090201SM)

$

$

Not available

49

Snapper 1720313

PULLEY, 2.75 OD
(Superseded to 1720313SM)

$34.99

$

Usually ships in 2-12 days

0

50

Snapper 7010061

KEY, 3/16x3/16x1"
(Superseded to 7010061SM)

$4.49

$

Usually ships in 2-12 days

0

51

Snapper 7015861

HARNESS CLIP
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

52

Snapper 1930645

NUT, 3/8-16 Hex Flange Lock Two Way
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

53

Snapper 7028090

MUFFLER GUARD, Domestic (Tecumseh)
(Superseded to 7028090SM)

$39.99

$

Usually ships in 2-12 days

0

54

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Self-Tap
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

55

Snapper 7034169

MUFFLER GUARD, Tecumseh Engine (Euro)
(Superseded to 7034169SM)

Note: not shown; Tecumseh #127-18

$48.99

$

Usually ships in 2-12 days

0

56

Snapper 7034254

SCREW. Tecumseh Muffler
(Superseded to 7034254SM)

Note: not shown; Tecumseh #42-671

$3.49

$

Usually ships in 2-12 days

0

57

Snapper 7034251

LOCK WASHER, Tecumseh Muffler
(Superseded to 7034251SM)

Note: not shown; Tecumseh #36-351

$3.49

$

Usually ships in 2-12 days

0

58

Snapper 7034239

WASHER, Tecumseh Muffler
(Superseded to 7034239SM)

Note: not shown; Tecumseh #36-195-1

$

$

Not available
