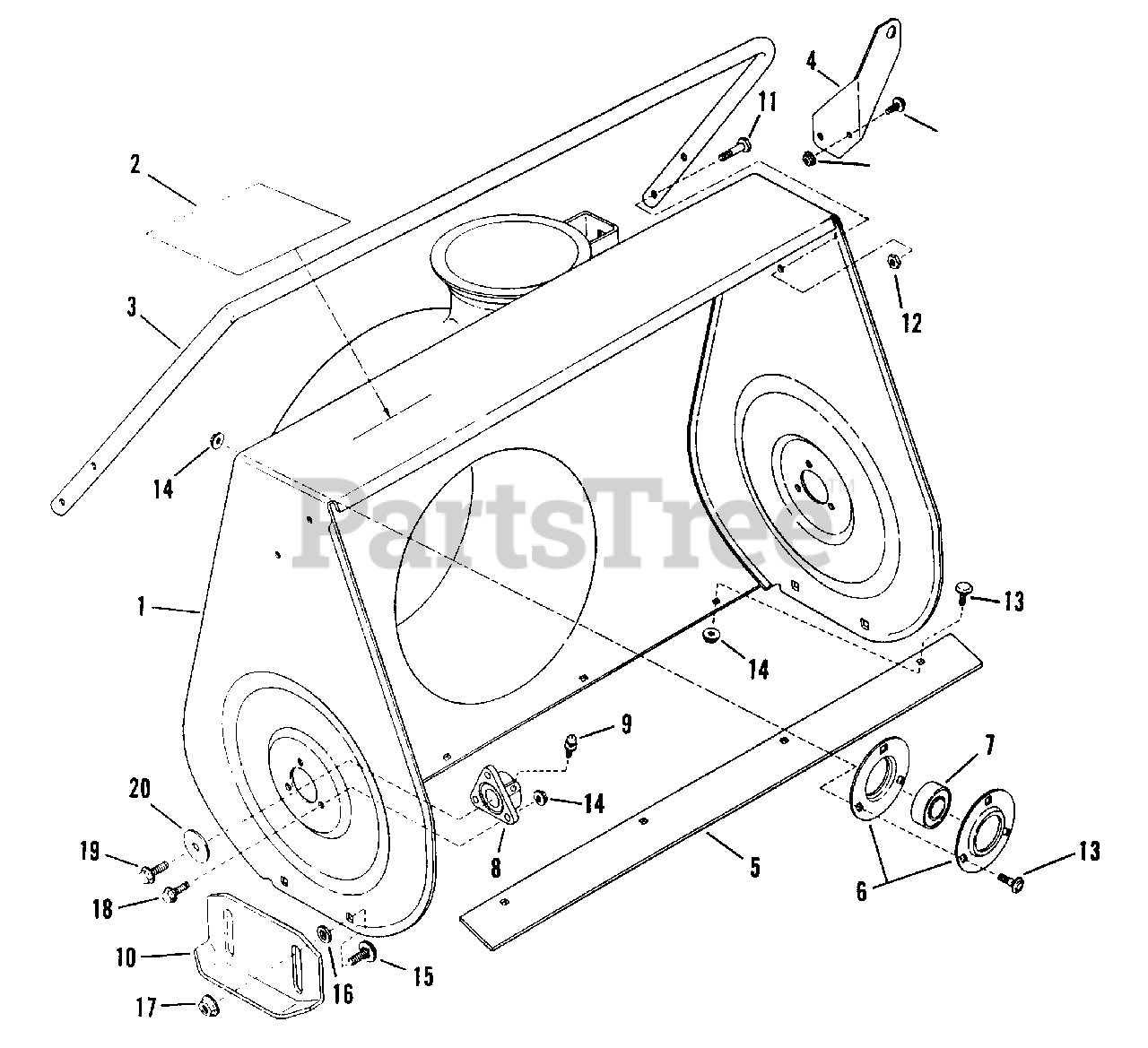

I 5222E (80243) - Snapper 22" Snow Thrower, 5hp Collector Housing (1 Piece Weldment) Parts Diagram

22" Snow Thrower, 5hp

Collector Housing (1 Piece Weldment) Parts Diagram

  • Title

1

Snapper 7052003

ASSY, Blower Hsg. (22" Models)

Note: (Includes Item 2)

$

$

Currently unavailable

Snapper 7052005

ASSY, Blower Hsg. (24" Models)

Note: (Includes Item 2)

$

$

Currently unavailable

2

Snapper 7026629

DECAL, Foot Danger

$

$

Not available

3

Snapper 7038021

DRIFT-CUTTER (22" Models)
(Superseded to 7038021YP)

$13.99

$

Usually ships in 2-12 days

0

Snapper 7038230

DRIFT-CUTTER (24" Models)
(Superseded to 7038230YP)

$42.99

$

Usually ships in 2-12 days

0

4

Snapper 7032464

BRACKET, Worm Shaft Support

$

$

Not available

5

Snapper 7036144

BLADE, Scraper (22" Models)
(Superseded to 7033298BMYP)

$51.99

$

In Stock, only 1 left!

0

Snapper 7036163

BLADE, Scraper (24" Models)
(Superseded to 7036163YP)

$76.99

$

Usually ships in 2-12 days

0

6

Snapper 7032455

HOUSING, Bearing

$

$

Not available

7

Snapper 7014608

BEARING, Ball
(Superseded to 7014608SM)

$34.99

$

Usually ships in 2-12 days

0

8

Snapper 7018736

BEARING, Auger Shaft
(Superseded to 7051563YP)

$31.99

$

Usually ships in 2-12 days

0

9

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7037982

SKID-SHOE
(Superseded to 7037982YP)

$

$

Not available

11

Snapper 7090643

SCREW, 1/4 - 20 x 7/8 HH Cap
(Superseded to 7090643YP)

$

$

Not available

12

Snapper 7090372

NUT, 1/4 - 20 H. Center Lock
(Superseded to 703954)

$

$

Not available

Snapper 7090372

NUT, 1/4 - 20 H. Center Lock - Black Zinc
(Superseded to 703954)

Note: Was 91099

$

$

Not available

13

Snapper 7091573

BOLT, 1/4 - 20 x 5/8 S.N. Carr.
(Superseded to 7091573YP)

Note: Was 90666

$4.49

$

In Stock, only 1 left!

0

14

Snapper 7091584

NUT, 1/4 - 20 H. Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

Snapper 7091584

NUT, 1/4 - 20 H. Flange Lock - Black Zinc
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 6

0

15

Snapper 7090316

BOLT, 5/16 - 18 x 5/8 Carriage
(Superseded to 703225)

Note: Was 90605

$3.99

$

In Stock, Qty 20+

0

Snapper 7091077

BOLT, 5/16 - 18 x 5/8 Carriage - Black Zinc
(Superseded to 7091077YP)

$

$

Not available

16

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

Snapper 7091076

WASHER, 5/16 Flat - Black Zinc
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

17

Snapper 7091601

NUT, 5/16 - 18 H. Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

Snapper 7091601

NUT, 5/16 - 18 H. Flange Lock - Black Zinc
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7090699

BOLT, 1/4 - 20 x 3/4 H. Flange Lock
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7090361

SCREW, 5/16- 18 x 5/8 Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

20

Snapper 7016314

WASHER, Flat
(Superseded to 7016314YP)

$5.49

$

In Stock, only 2 left!

0
