I 5222 (80307) - Snapper 22" Snow Thrower, 5hp Chute Crank Control (I5222 & '92-I7222) Parts Diagram

22" Snow Thrower, 5hp

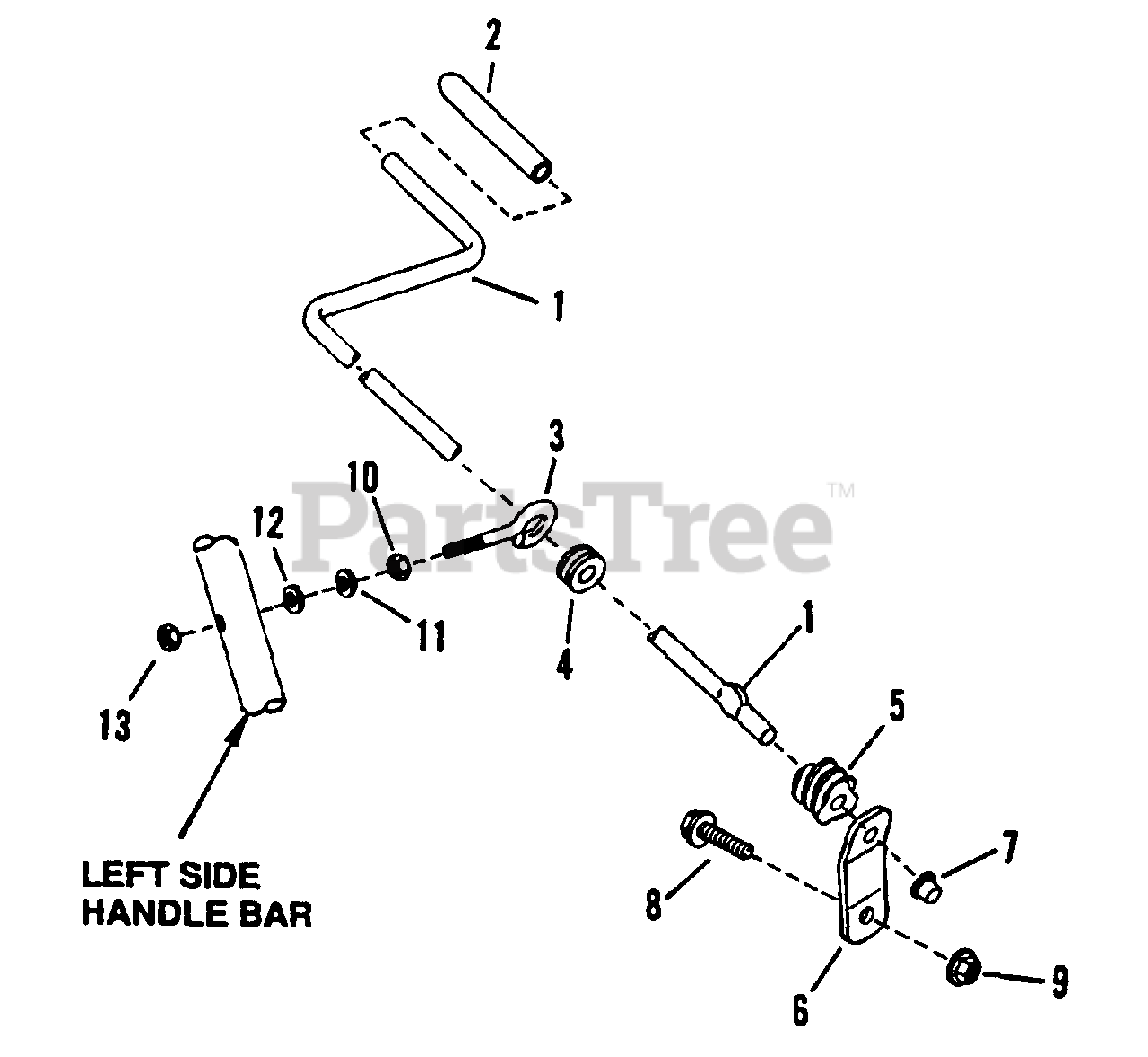

Chute Crank Control (I5222 & '92-I7222) Parts Diagram

  • Title

1

Snapper 7017626

CRANK, Chute

$

$

Not available

2

Snapper 7022332

GRIP, Vinyl
(Superseded to 7022295YP)

$6.99

$

In Stock, Qty 6

0

3

Snapper 7017623

EYE-BOLT, 5/16-18"
(Superseded to 7017623YP)

$5.99

$

Usually ships in 2-12 days

0

4

Snapper 7017622

GROMMET
(Superseded to 7017622YP)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 7017606

WORM (Plastic)

$

$

Not available

6

Snapper 7033294

BRACKET, Worm Mounting

$

$

Not available

7

Snapper 7091135

PUSH-NUT, 3/8"
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7091138

SCREW, 5/16-18 x 5/8" Hex Head Cap, Grade 5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

9

Snapper 7091076

NUT, 5/16-18 H. Fl. Lock, Gr. 5
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 7091511

NUT, 5/18-18 Hex
(Superseded to 7091511SM)

Note: Was 91069

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7090391

WASHER, 5/16 Int. Tooth Lock
(Superseded to 703587)

Note: Was 91068

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7090167

NUT, 5/16-18 Hex Center Lock
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0
