I 4550 B (UT-10862) - Homelite Chainsaw Engine Internal - Oil Pump Parts Diagram

Chainsaw

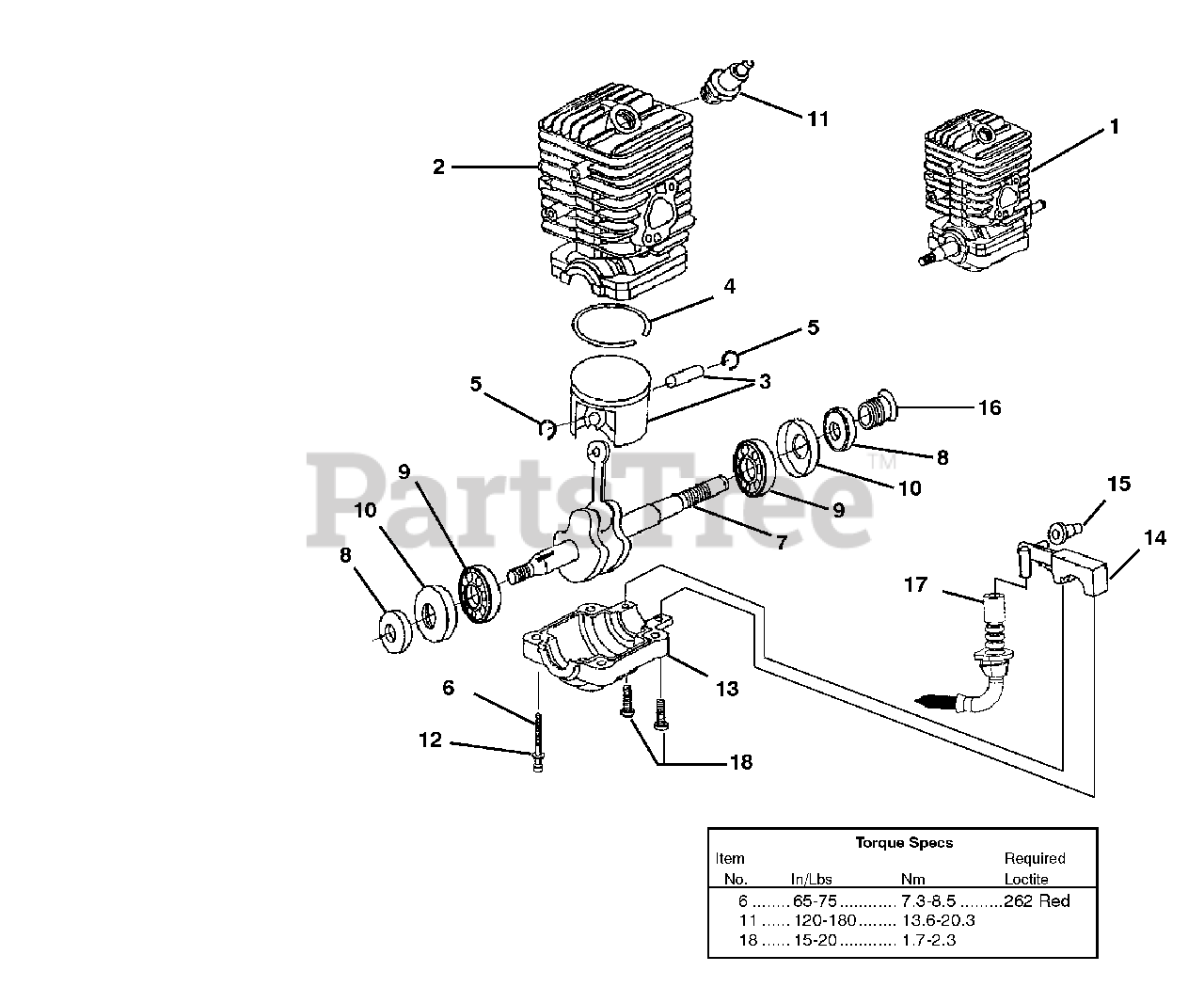

Engine Internal - Oil Pump Parts Diagram

  • Title

1

Homelite UP04166A

Short Block, Complete (45cc)

Note: Includes Items 2-10

$

$

Not available

2

Homelite UP00129A

Cylinder Kit (45cc)

Note: Includes Items 2

$

$

Not available

Homelite 06839

Gasket, Muffler
(Superseded to 900848001)

Note: (Not Shown)

$2.49

$

In Stock, only 4 left!

0

Homelite 06840A

Gasket, Heat Dam

Note: (Not Shown)

$

$

Not available

Homelite 98339

Gasket, Carburetor
(Superseded to 900843001)

Note: (Not Shown)

$

$

Not available

3

Homelite UP00130A

Piston & Pin (45cc)

Note: Includes Items 4-5

$

$

Not available

4

Homelite 09082

Piston Ring (45cc)

$

$

Not available

5

Homelite 64813

Ring, Retaining

$4.99

$

Usually ships in 3-7 days

0

6

Homelite 82527

Screw, Cap-Socket Hd. (10-24 x 2")
(Superseded to 660622001)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite UP04165A

Crankshaft & Rod Assy (45cc)

Note: Includes Items 8-10

$189.99

$

Usually ships in 3-7 days

0

8

Homelite 04920

Shaft Seal
(Superseded to 570220001)

$

$

Not available

9

Homelite 08838

Ball Bearing

$

$

Not available

10

Homelite 04919

Rubber Case
(Superseded to 570221001)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite PS02227

Spark Plug
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

12

Homelite 84008

Washer
(Superseded to 671080001)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 09097

Lower Crankcase (45cc)

$

$

Not available

14

Homelite UP06602

Oil Pump Kit

Note: Includes Items 15-17

$

$

Not available

15

Homelite 06841

Grommet, Oil Outlet
(Superseded to 570226001)

$1.99

$

In Stock, only 4 left!

0

16

Homelite 06847

Left Hand Worm
(Superseded to T610389001)

$2.99

$

Usually ships in 3-7 days

0

17

Homelite PA01037

Oil Intake Tube w/Filter

$

$

Not available

18

Homelite 82546

Screw, T.F. (8-16 x 5/8")
(Superseded to 660675001)

$1.99

$

In Stock, only 1 left!

0
