I 4400 B (UT-10764) - Homelite Chainsaw Engine Internal Parts Diagram

Chainsaw

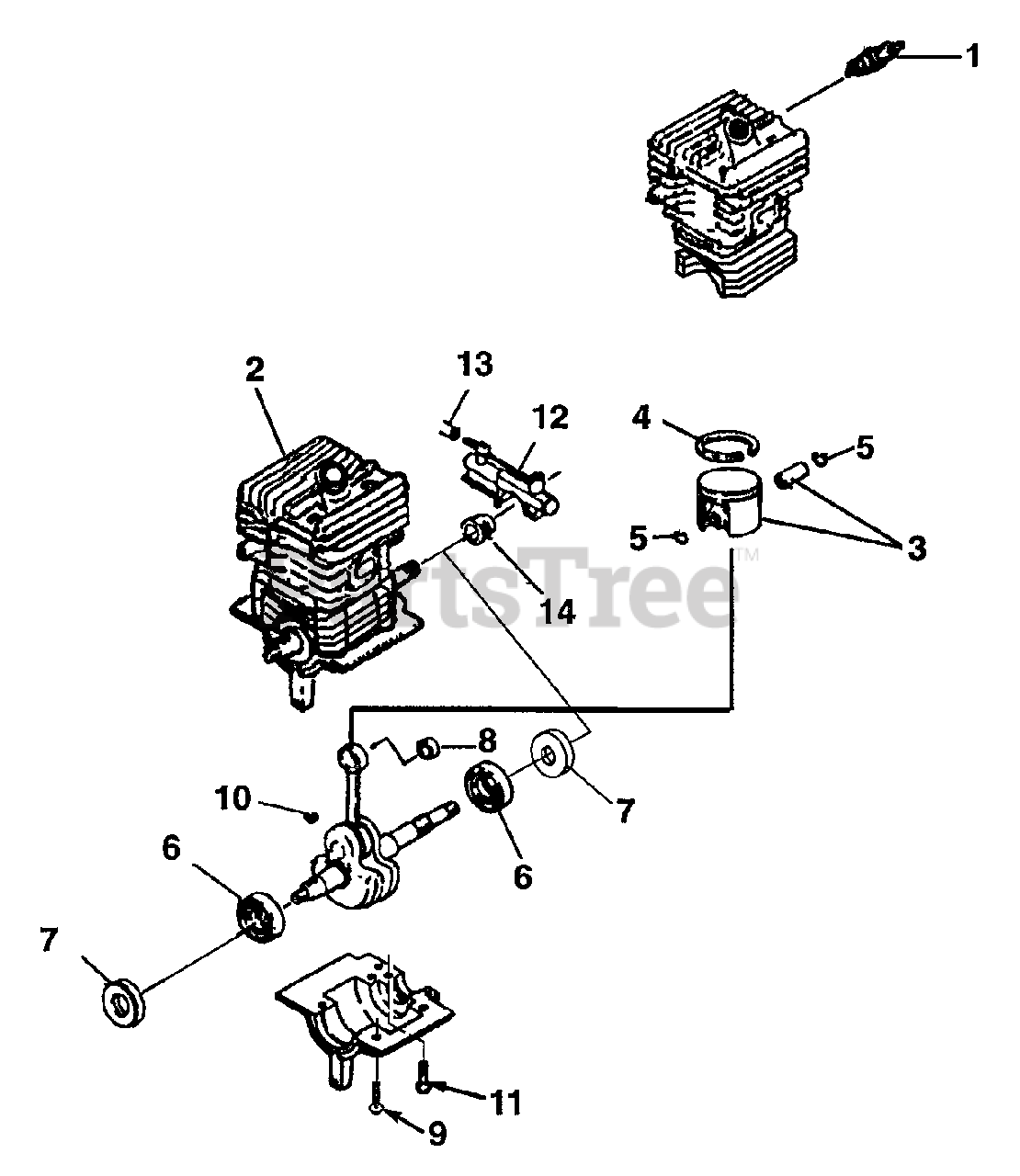

Engine Internal Parts Diagram

  • Title

1

Homelite 98217S

SPARK PLUG (RCJ6Y)
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

2

Homelite A07275

SHORT BLOCK

$

$

Currently unavailable

3

Homelite A08213

PISTON & PIN

$

$

Currently unavailable

4

Homelite 07278

RING, PISTON ASSEMBLY

$

$

Not available

WRIST PIN

$

$

Not available

5

Homelite 64813

RING, WRIST PIN RETAIN.

$4.99

$

Usually ships in 3-7 days

0

6

Homelite A06340

BEARING & CAP, CRANKSHAFT

$

$

Currently unavailable

7

Homelite 06339

SEAL, SHAFT
(Superseded to PS04739)

$

$

Not available

8

Homelite 70277

BEARING, NEEDLE
(Superseded to UP05641)

$12.99

$

Usually ships in 3-7 days

0

9

Homelite 80891

SCREW, Hex Hd. (12-24 X 7/8")

$

$

Not available

10

Homelite 75078

KEY, WOODRUFF
(Superseded to UP07068)

$

$

Not available

11

Homelite 82146

SCREW, FIL. HD. (8-32 X 5/8") (OIL PUMP)
(Superseded to UP03887)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite A02802A

OIL PUMP
(Superseded to UP06621)

$81.99

$

Usually ships in 3-7 days

0

13

Homelite 02548

TUBING, OIL

Note: (TO GUIDE BAR)

$

$

Not available

14

Homelite 06342

WORM GEAR, LEFT HAND

$7.99

$

Usually ships in 3-7 days

0
