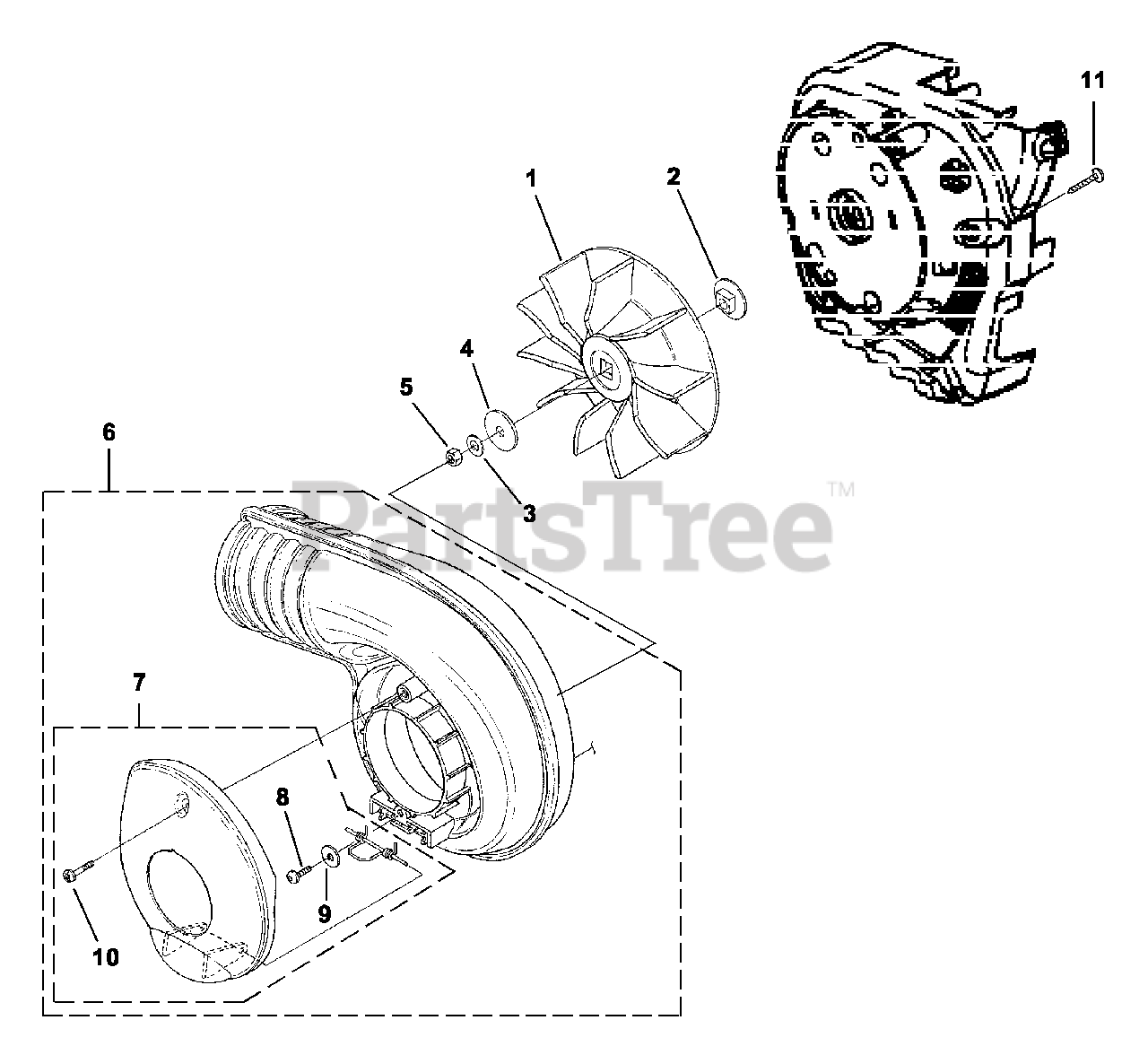

I 30 MHV (UT-08089) - Homelite Blower Volute - Fan Parts Diagram

Blower

Volute - Fan Parts Diagram

  • Title

1

Homelite UP04311

Fan
(Superseded to 07409)

$

$

Not available

2

Homelite UP04303

Adapter, Fan
(Superseded to 04335)

$5.49

$

Usually ships in 3-7 days

0

3

Homelite UP03835

Washer, Belleville
(Superseded to 03163)

$

$

Not available

4

Homelite UP03873

Washer, Flat
(Superseded to 58833)

$

$

Not available

5

Homelite UP03884

Nut (3/8-24)
(Superseded to 81124A)

Note: Torque to 130 - 150 In/Lbs; 14.7 - 17.0 Nm

$

$

Not available

6

Homelite UP06899

Volute W/Door Assembly
(Superseded to UP06899A)

$

$

Not available

7

Homelite UP06898

Volute Door
(Superseded to UP06898A)

$41.99

$

Usually ships in 3-7 days

0

8

Homelite UP03897

Screw, Thread Forming (10-14 X 1/2)
(Superseded to 82541)

Note: Torque to 30 - 40 In/Lbs; 3.4 - 4.5 Nm

$1.99

$

In Stock, only 3 left!

0

9

Homelite UP03909

Washer
(Superseded to 95935)

$

$

Not available

10

Homelite UP04547

Screw, Machine (10-24 X 3/4)
(Superseded to 08204)

Note: Torque to 15 - 20 In/Lbs; 1.7 - 2.3 Nm

$4.99

$

Usually ships in 3-7 days

0

11

Homelite UP03895

Screw, Plastite (10-14 X 7/8)
(Superseded to 82537)

Note: Torque to 35 - 45 In/Lbs; 4.0 - 5.0 Nm

$1.99

$

Usually ships in 3-7 days

0
