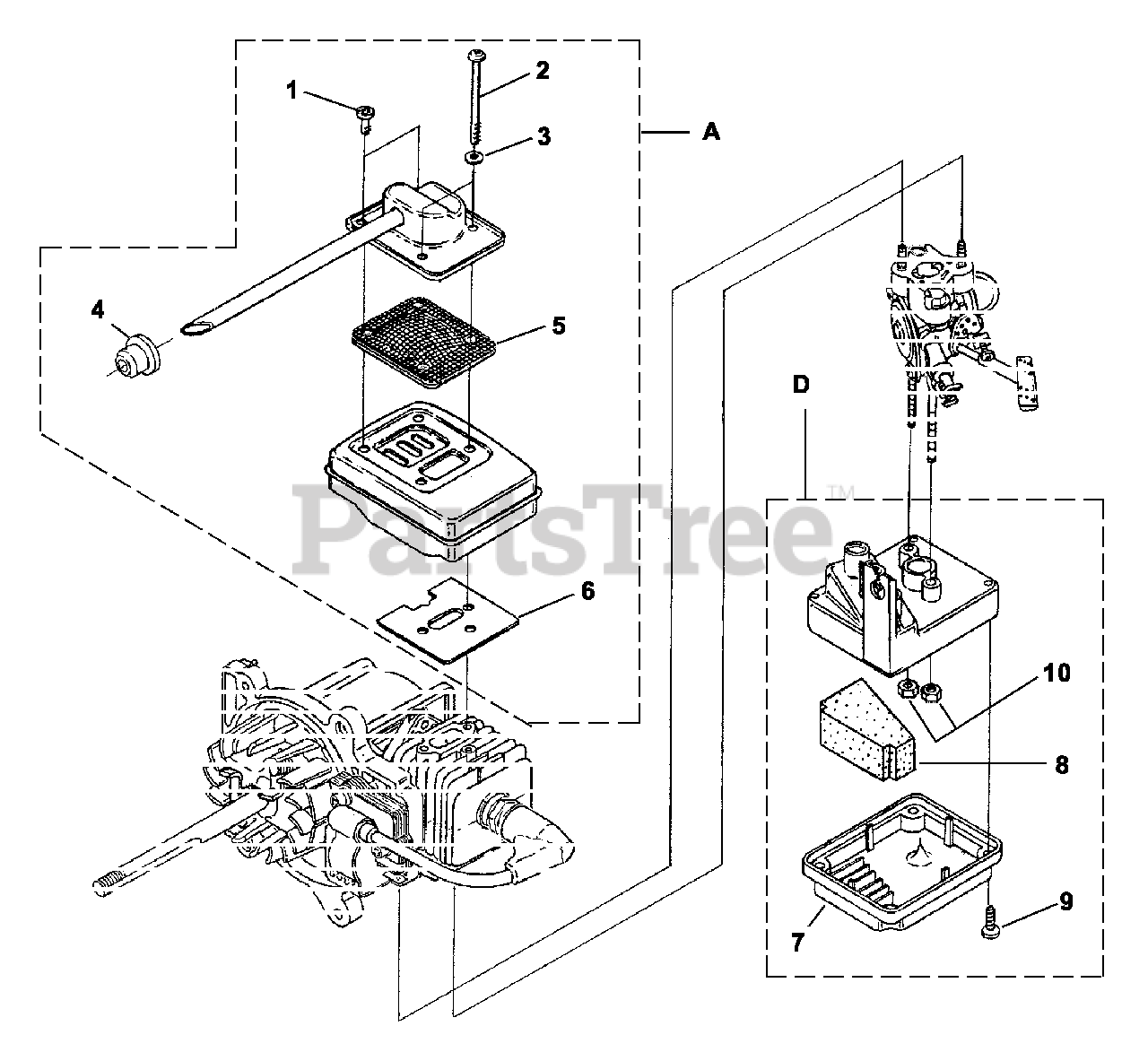

I 30 MHV (UT-08089) - Homelite Blower Muffler - Air Cleaner Parts Diagram

Blower

Muffler - Air Cleaner Parts Diagram

  • Title

A

Homelite UP06823

Muffler Assembly, Crimped
(Superseded to UP06823A)

$

$

Not available

1

Homelite UP04248

Screw, Taptite (8-32 x 3/8)
(Superseded to 82600)

Note: Torque to 20 - 30 In/Lbs; 2.3 - 3.4 Nm

$1.49

$

Usually ships in 3-7 days

0

2

Homelite UP04249

Screw, Torx Truss Hd. (10-24 X 2.188")
(Superseded to 82613)

Note: Torque to 50 - 60 In/Lbs; 5.6 - 6.8 Nm

$4.99

$

Usually ships in 3-7 days

0

3

Homelite UP03866

Washer, Conical #10
(Superseded to 12021)

$

$

Not available

4

Homelite UP04321

Muffler Grommet
(Superseded to 08104)

$

$

Not available

5

Homelite UP04316

Screen Assy., Spark
(Superseded to 07497)

$

$

Not available

6

Homelite UP03817

Gasket, Muffler
(Superseded to 00394B)

Note: Also included with Short Block and Cylinder assemblies.

$

$

Not available

D

Homelite UP06824

Air Filter Assembly

$

$

Not available

7

Homelite UP04318

Cover, Air Box
(Superseded to 07547)

$10.99

$

Usually ships in 3-7 days

0

8

Homelite UP04323

Filter Element #1
(Superseded to 08108)

$

$

Not available

9

Homelite UP03893

Screw, Thread Forming (8-16 X .50)
(Superseded to 82376)

Note: Torque to 30 - 40 In/Lbs; 3.4 - 4.5 Nm

$1.49

$

In Stock, only 3 left!

0

10

Homelite UP03885

Nut, Lock Hex (10-24)
(Superseded to 81208)

Note: Torque to 30 - 40 In/Lbs; 3.4 - 4.5 Nm

$

$

Not available
