I 25 MHV (UT-08095) - Homelite Blower, 25cc Engine Internal Parts Diagram

Blower, 25cc

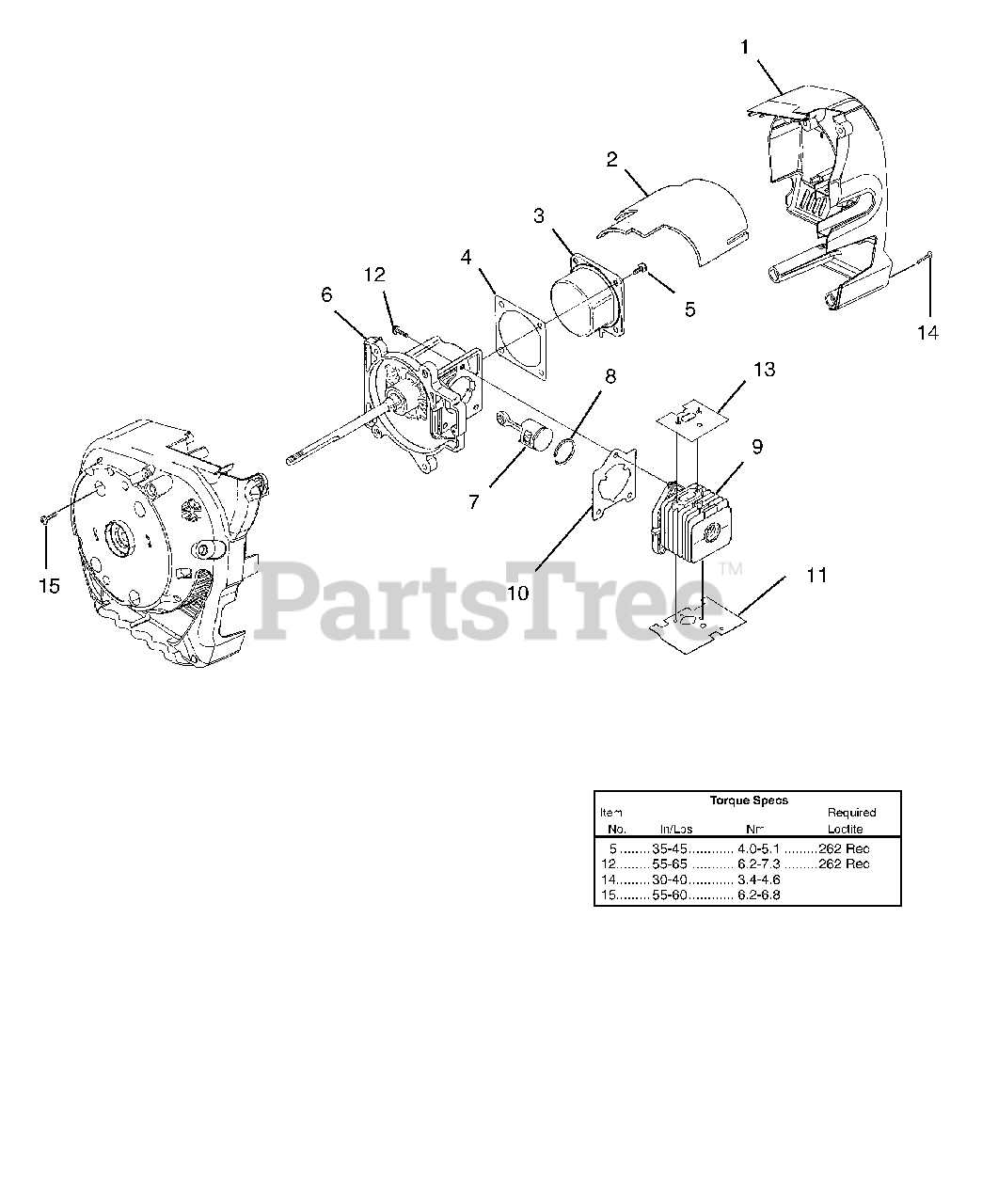

Engine Internal Parts Diagram

  • Title

1

Homelite UP04314A

Shroud
(Superseded to UP04314)

$26.99

$

Usually ships in 3-7 days

0

2

Homelite 08107B

Heat Shield, Muffler

$

$

Not available

3

Homelite UP06543A

Crankcase Cover Kit

Note: Includes Items 4-5

$

$

Not available

4

Homelite 06443A

Gasket, C/Case
(Superseded to 900954001)

$

$

Not available

5

Homelite PS01565

Screw, Sems (10-24 x .560)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite UP03369A

Short Block (Svc) (25cc)

Note: Includes items 7-13

$

$

Not available

7

Homelite 984544001

Piston & Rod (25cc)

Note: Includes item 8

$

$

Not available

8

Homelite PS01359

Piston Ring (25cc)
(Superseded to 678001002)

$

$

Not available

9

Homelite UP04136A

Cylinder Kit (25cc)
(Superseded to UP07145A)

Note: Includes items 10-13

$74.99

$

In Stock, only 1 left!

0

10

Homelite 04388B

Gasket, Cylinder
(Superseded to 985259001)

$

$

Not available

11

Homelite 06900A

Gasket, Heat Dam

$

$

Not available

12

Homelite PS02807

Screw, Sems (12-24 x 3/4 in.)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 00394B

Gasket, Muffler

$

$

Not available

14

Homelite 82537

Screw, Thread Forming (10-14 x 7/8 in.)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 82538

Taptite, Truss (10-24 x 3/4 in.)

$1.99

$

Usually ships in 3-7 days

0
