I 25 MHV (UT-08095) - Homelite Blower, 25cc Carburetor - Fuel Tank Parts Diagram

Blower, 25cc

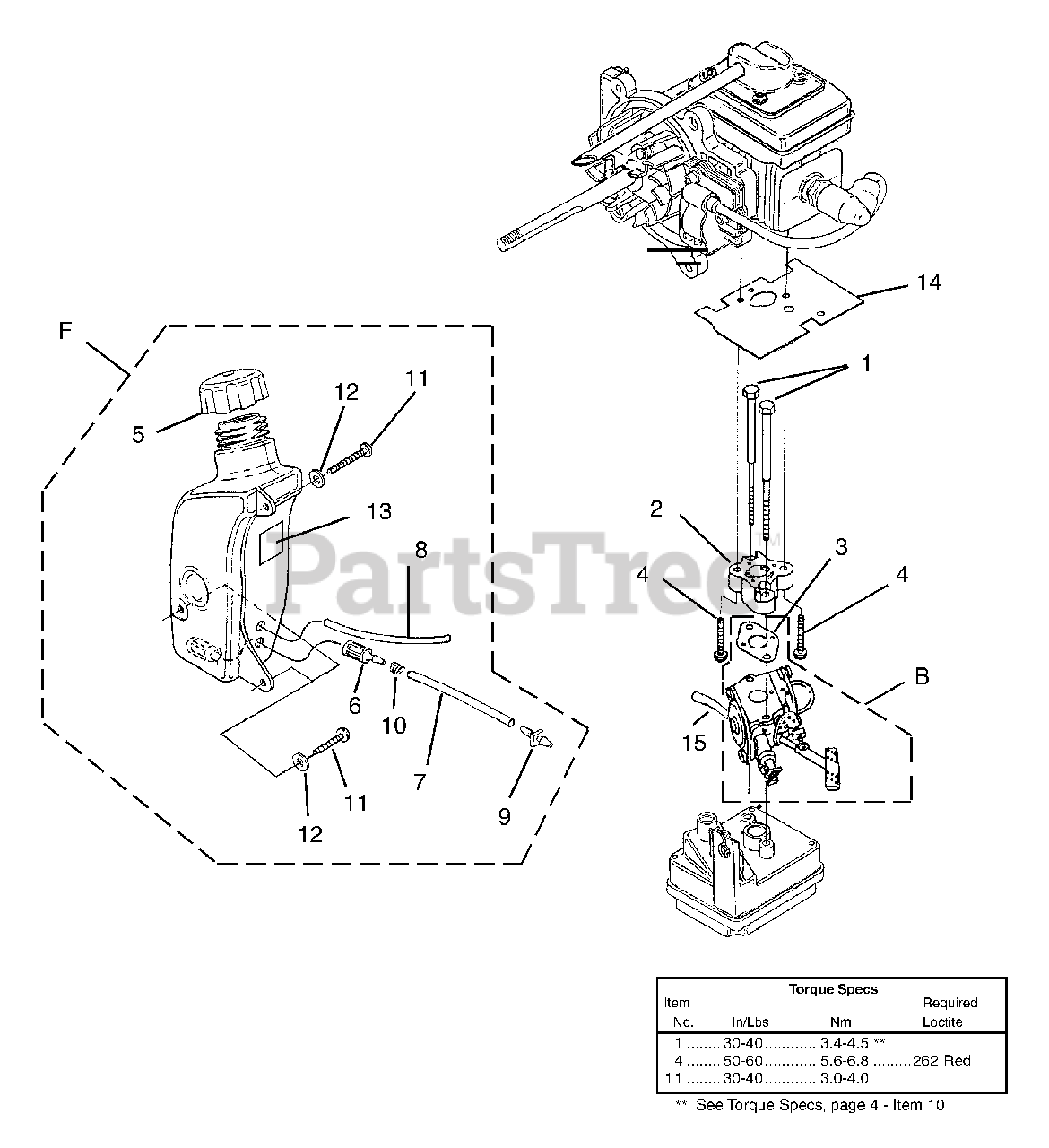

Carburetor - Fuel Tank Parts Diagram

  • Title

1

Homelite PS06881

Screw, Machine (10-24 x 2.8)

$4.99

$

Usually ships in 3-7 days

0

2

Homelite PS04357

Heat Dam
(Superseded to 06445)

$

$

Not available

B

Homelite UP00608A

Carburetor Kit

Note: Includes item 3

$

$

Not available

3

Homelite 98766A

Gasket, Carburetor
(Superseded to 900994004)

Note: Also included with Cylinder Kit.

$

$

Not available

4

Homelite 093221

Screw, Sems (10-24 x 1 in.)
(Superseded to 660662001)

Note: Also included with Cylinder Kit.

$

$

Not available

F

Homelite UP00495A

Fuel Tank Assy.

Note: Includes items 5-14

$

$

Not available

5

Homelite A09116

Fuel Cap
(Superseded to 300758006)

$

$

Not available

6

Homelite PS03380

Fuel Filter
(Superseded to 300759003)

$

$

Not available

7

Homelite 9477212

Tubing, Rubber (3")

$6.49

$

Usually ships in 3-7 days

0

8

Homelite 0143920

Tubing, Rubber (5")

$4.49

$

In Stock, only 3 left!

0

9

Homelite 07332

Fitting, Inlet (small for 2.5mm ID fuel line)
(Superseded to 985304001)

$1.99

$

In Stock, Qty 7

0

10

Homelite 98268

Clamp, Wire
(Superseded to 690765001)

$1.99

$

In Stock, Qty 7

0

11

Homelite 82563

Screw, Thread Forming (10-14 x 3/4 in.)

$1.99

$

In Stock, Qty 6

0

12

Homelite 12789

Washer

$

$

Not available

13

Homelite 08684

Heat Shield
(Superseded to 900955001)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 06900A

Gasket, Heat Dam

Note: Also included with Cylinder Kit.

$

$

Not available

15

Homelite 0143920

Tubing, Rubber (5")

$4.49

$

In Stock, only 3 left!

0
