I 1224 E (1695821) - Simplicity 24" Snow Thrower, 11.5hp Wheels & Tires Group - 1 Pin Parts Diagram

24" Snow Thrower, 11.5hp

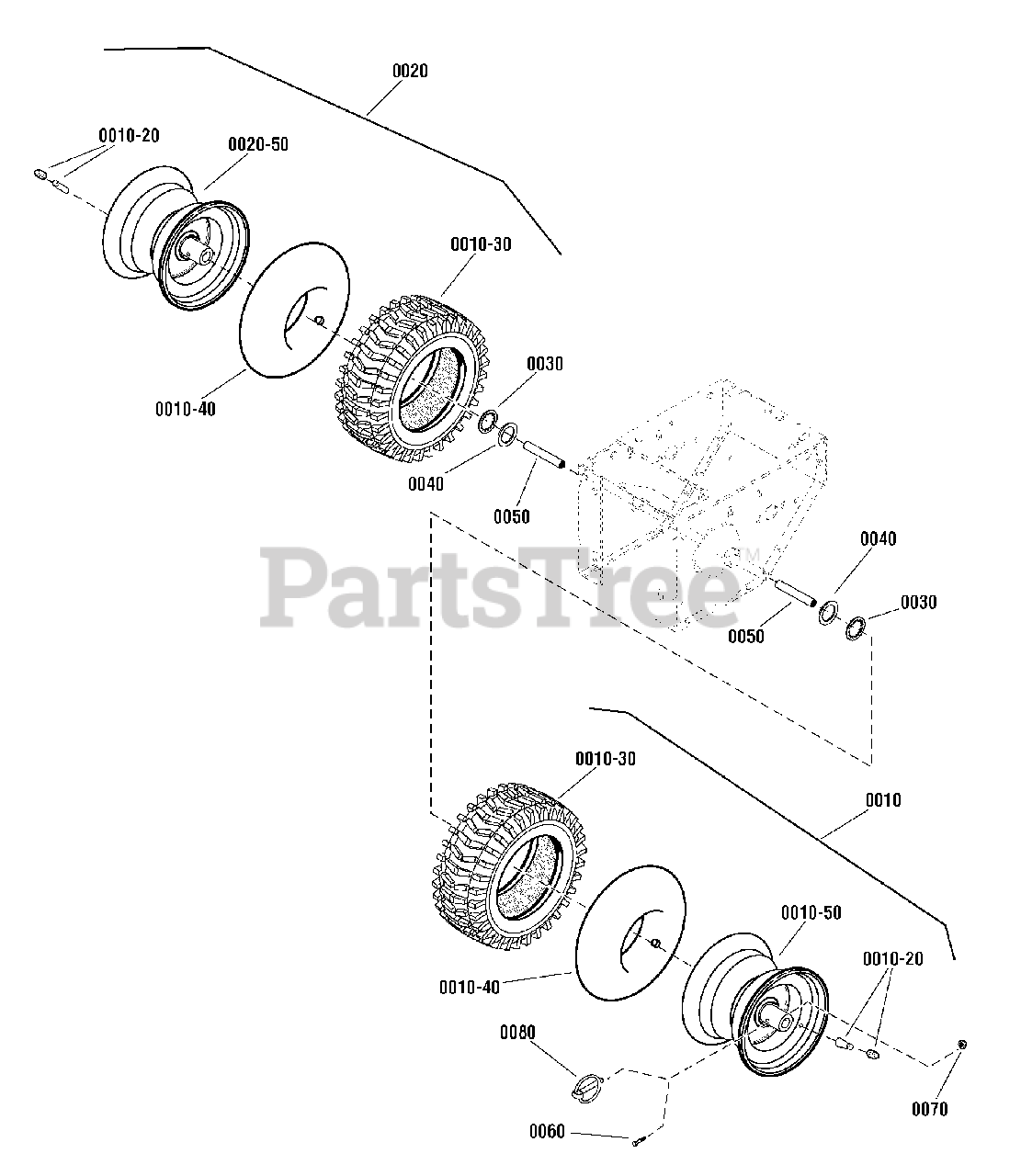

Wheels & Tires Group - 1 Pin Parts Diagram

  • Title

0010

Simplicity 1736779

WHEEL ASSEMBLY, K467, 16 x 4-8, L.H.
(Superseded to 1736779YP)

Note: (Includes Ref. Nos. 0010-20, 0010-30 & 0010-50)

$256.99

$

In Stock, only 1 left!

0

0010-20

Simplicity 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

0010-30

Simplicity 1737155

TIRE, 16 x 4-8
(Superseded to 1737155YP)

$74.99

$

Usually ships in 2-12 days

0

0010-40

Simplicity 2153038

TUBE, Tire 15 x 5-6
(Superseded to 2153038SM)

$35.99

$

Usually ships in 2-12 days

0

0010-50

RIM, Tire, L.H.

Note: (Not a servicable part. Order complete assembly)

$

$

Not available

0020

Simplicity 1736778

WHEEL ASSEMBLY, K467, 15 x 5-6 2P, R.H.
(Superseded to 1736778YP)

Note: (Includes Ref. Nos. 0010-20, 0010-30 & 0020-50)

$213.99

$

Usually ships in 2-12 days

0

0020-50

RIM, Tire, R.H.

Note: (Not a servicable part. Order complete assembly)

$

$

Not available

0030

Simplicity 1657528

RING, Retaining
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

0040

Simplicity 725394

WASHER, Flat, 3/4 ID x 1-1/8 OD
(Superseded to 712120MA)

$4.99

$

In Stock, Qty 20+

0

0050

Simplicity 722102

BUSHING, Wheel, 5-1/2
(Superseded to 1501138MA)

$

$

Not available

0060

Simplicity 724545

BOLT, Hex, 1/4-20 x 1-3/4 G5
(Superseded to 577015MA)

$4.99

$

In Stock, only 3 left!

0

0070

Simplicity 722400

NUT, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0080

Simplicity 725431

PIN, Klik, 1/4 x 1-3/8
(Superseded to 500016MA)

$15.99

$

In Stock, only 1 left!

0
