I 1224 E (1695659) - Simplicity 24" Snow Thrower, 11hp Handles & Controls Group Parts Diagram

24" Snow Thrower, 11hp

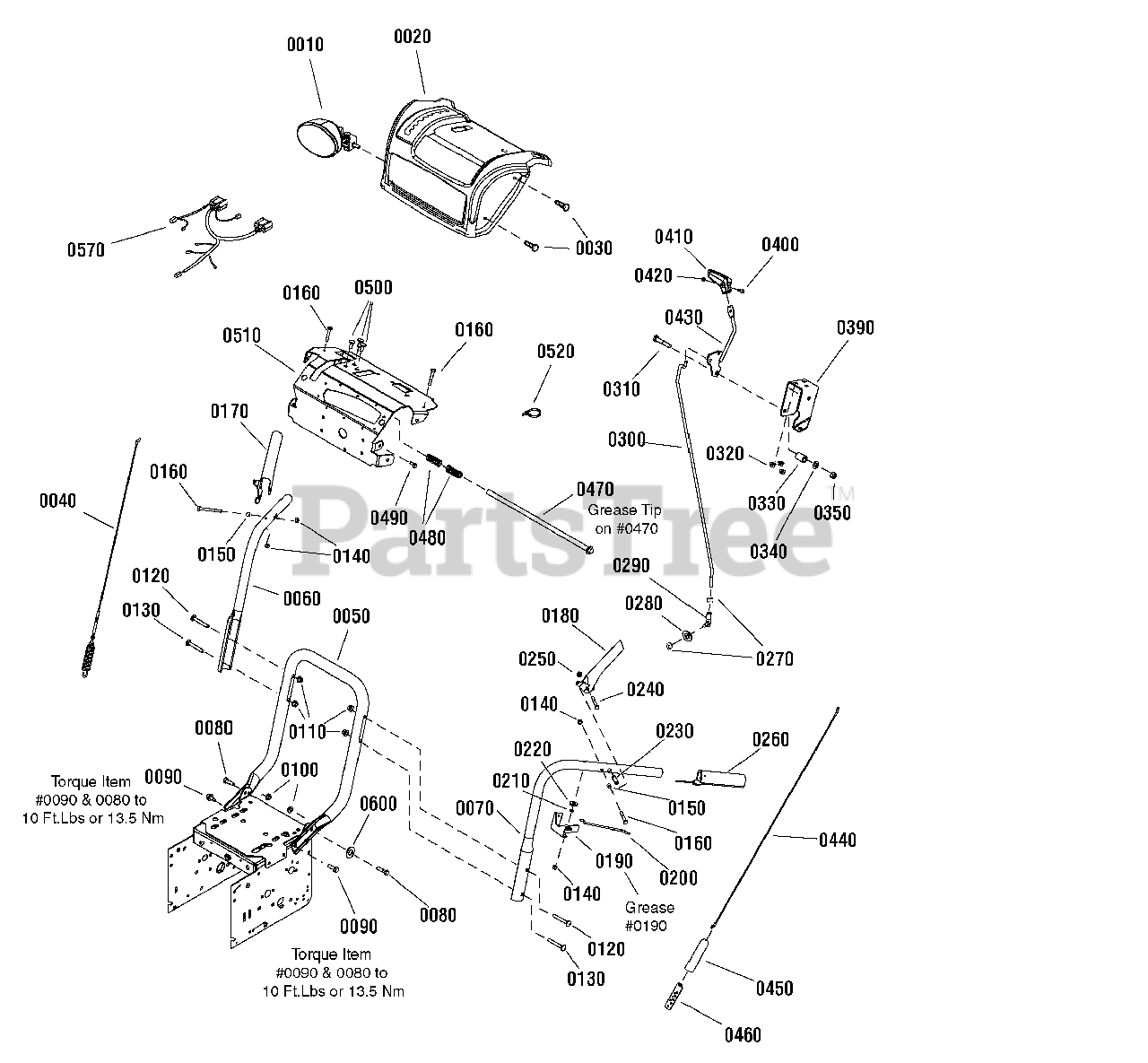

Handles & Controls Group Parts Diagram

  • Title

0010

Simplicity 1732321SM

HEADLIGHT ASSEMBLY
(Superseded to 1688087)

Note: (All except 1695806)

$

$

Not available

0020

Simplicity 1736536CYP

COVER, Panel

$113.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1960715SM

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0040

Simplicity 1732471SM

CABLE & SPRING ASSEMBLY, Auger, R.H.

$

$

Not available

0050

Simplicity 1737759AYP

HANDLE, Lower

$176.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1734587ASM

HANDLE, Upper, R.H.

$51.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1734586ASM

HANDLE, Upper, L.H.

$55.99

$

In Stock, only 1 left!

0

0080

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 1960686SM

NUT, Hex Flange, 5/16-18, ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0120

Simplicity 1960273SM

BOLT, Carriage, 5/16-18 x 2-1/2
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0130

Simplicity 1931338SM

BOLT, Carriage, 5/16-18 x 1-3/4
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0140

Simplicity 1920397SM

NUT, Hex Lock, 1/4-20, ESNA Light
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 1678392SM

SPACER, 1/4 ID x 3/8 OD x 5/16
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1921962SM

CAPSCREW, Hex Flange Head, 1/4-20 x 1-3/4
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1736323YP

LEVER, Clutch, R.H.

$20.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1737690YP

LEVER, Clutch, L.H.

$37.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1733505BMYP

BRACKET, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1736360YP

ROD, 5-5/8

$11.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1733095SM

SPACER, 1/4 ID x 3/8 OD x 1/8

$4.49

$

Usually ships in 2-12 days

0

0220

Simplicity 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0230

Simplicity 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1922837SM

CAPSCREW, Hex Flange Head, 1/4-20 x 1-1/2
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0250

Simplicity 1923358SM

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0260

Simplicity 1726317SM

GRIP

$8.49

$

In Stock, only 1 left!

0

0270

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0280

Simplicity 1917356SM

LOCKWASHER, Spring
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0290

Simplicity 50782MA

BALLJOINT

$21.99

$

In Stock, Qty 6

0

0300

Simplicity 1734354SM

ROD, 25-3/8
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0320

Simplicity 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Simplicity 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

0340

Simplicity 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0350

Simplicity 1919439SM

NUT, Hex Lock, 3/8-16, ESNA Light
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0390

Simplicity 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0420

Simplicity 1933896SM

NUT, Hex Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Simplicity 1736836YP

LEVER, Speed
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1502113MA

CABLE, Front Drive

$22.99

$

In Stock, Qty 20+

0

0450

Simplicity 308146MA

BOOT, Spring End Cover

$6.49

$

Usually ships in 2-12 days

0

0460

Simplicity 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0470

Simplicity 1733509SM

ROD & SPRING ASSEMBLY

$81.99

$

Usually ships in 2-12 days

0

0480

Simplicity 2108360SM

SPRING, Compression

$5.49

$

In Stock, only 1 left!

0

0490

Simplicity 1927429SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0500

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0510

Simplicity 1732064BMYP

COVER, Dash

$136.99

$

Usually ships in 2-12 days

0

0520

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0570

Simplicity 1737446YP

WIRING HARNESS

Note: (All except 1695806)

$12.99

$

Usually ships in 2-12 days

0

0600

Simplicity 71071MA

WASHER, 3/8
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0
