I 1224 E (1695659) - Simplicity 24" Snow Thrower, 11hp Chute & Rotation Group - Left Side Crank Parts Diagram

24" Snow Thrower, 11hp

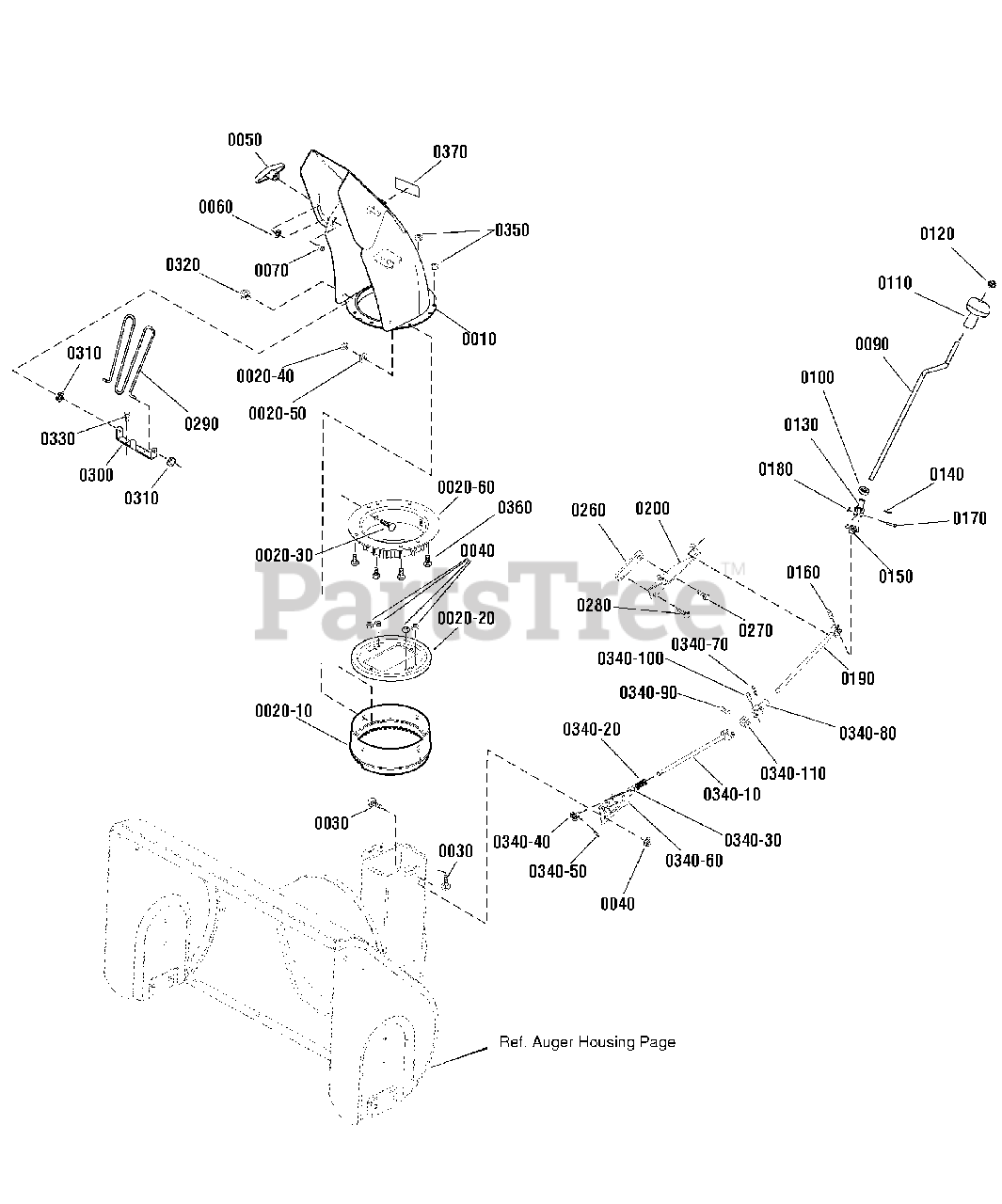

Chute & Rotation Group - Left Side Crank Parts Diagram

  • Title

0010

Simplicity 1736380C

CHUTE ASSEMBLY, Short
(Superseded to 1736380CYP)

$139.99

$

Usually ships in 2-12 days

0

0020-10

Simplicity 722138

RING, Outer Chute
(Superseded to 1501282MA)

$26.99

$

In Stock, only 2 left!

0

0020-20

Simplicity 722340

COLLAR, Chute Rotation
(Superseded to 1501932YZMA)

$28.99

$

In Stock, only 1 left!

0

0020-30

Simplicity 722899

BOLT, Carriage
(Superseded to 704217)

$

$

Not available

0020-40

Simplicity 725321

NUT, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0020-50

Simplicity 725331

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

0020-60

Simplicity 1741917

RING, Inner Chute
(Superseded to 1741917YP)

$22.99

$

Usually ships in 2-12 days

0

0030

Simplicity 720386

BOLT, Carriage, 1/4-20 x 3/4

$

$

Not available

0040

Simplicity 722400

NUT, Hex, Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0050

Simplicity 7035744

WINGNUT, 5/16-18
(Superseded to 7105085YP)

$6.99

$

In Stock, Qty 20+

0

0060

Simplicity 2860210

WASHER, Nylon, 3/8
(Superseded to 2860210SM)

$4.49

$

In Stock, only 3 left!

0

0070

Simplicity 1931333

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0090

Simplicity 1715658

ROD, Chute Control
(Superseded to 1715658SM)

$28.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1667588

BUSHING, 3/8 ID x 7/16 OD x 3/16 Lg
(Superseded to 1667588SM)

$5.99

$

In Stock, Qty 20+

0

0110

Simplicity 1714084

KNOB, Spinner, 3/8 ID, 2-3/16 OD x 2-1/2 Lg
(Superseded to 1714084SM)

$12.99

$

In Stock, only 1 left!

0

0120

Simplicity 1960093

PUSHNUT, 3/8 Dia.
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

0130

Simplicity 1733611

YOKE TUBE ASSEMBLY, Chute
(Superseded to 1733611SM)

$35.99

$

In Stock, only 1 left!

0

0140

Simplicity 722139

PIN, Hair, Chute Gear
(Superseded to 1501293MA)

$4.99

$

Usually ships in 2-12 days

0

0150

Simplicity 724565

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.49

$

In Stock, Qty 5

0

0160

Simplicity 724564

PIN, Universal Joint, 3/8 x 1
(Superseded to 578060MA)

$7.49

$

In Stock, only 1 left!

0

0170

Simplicity 724579

PIN, Clevis, 1/4D x 1-3/16
(Superseded to 578309MA)

$5.49

$

In Stock, Qty 9

0

0180

Simplicity 724605

PIN, Cotter, 5/8 x 1/2
(Superseded to 579493MA)

$4.49

$

In Stock, only 2 left!

0

0190

Simplicity 1736538

ROD & YOKE ASSEMBLY, Chute
(Superseded to 1736538YP)

$34.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1736537A

SUPPORT, Chute Rod
(Superseded to 1736537AYP)

$18.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1733379A

SPACER, Support, Chute Rod
(Superseded to 1733379ASM)

$11.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1921977

CAPSCREW, Hex Flange Head, 5/16-18 x 1-1/4, G5
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 10

0

0280

Simplicity 1960373

CAPSCREW, Hex Washer, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0290

Simplicity 1733475

GUARD, Chute
(Superseded to 1733475SM)

Note: (CE/Export Only)

$21.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1737683A

BRACKET, Chute Guard
(Superseded to 1737683AYP)

Note: (CE/Export Only)

$17.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1738174

GROMMET, Chute Guard Bracket
(Superseded to 1738174YP)

Note: (CE/Export Only)

$4.49

$

Usually ships in 2-12 days

0

0320

Simplicity 1960140

PUSHNUT, 3/16 Dia.
(Superseded to 1960140SM)

Note: (CE/Export Only)

$3.49

$

Usually ships in 2-12 days

0

0330

Simplicity 1925003

CAPSCREW, Hex Washer, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

Note: (CE/Export Only)

$3.99

$

In Stock, Qty 11

0

0340-10

Simplicity 722202

ROD & YOKE ASSEMBLY
(Superseded to 1501533YZMA)

$11.99

$

Usually ships in 2-12 days

0

0340-20

Simplicity 722414

SPRING, Compression
(Superseded to 164X37MA)

$9.49

$

In Stock, only 1 left!

0

0340-30

Simplicity 720164

WASHER, Flat, 3/8
(Superseded to 017X48MA)

$8.49

$

Usually ships in 2-12 days

0

0340-40

Simplicity 722073

GEAR, 9T
(Superseded to 1501067MA)

$17.99

$

In Stock, only 2 left!

0

0340-50

Simplicity 722139

PIN, Hair, Chute Gear
(Superseded to 1501293MA)

$4.99

$

Usually ships in 2-12 days

0

0340-60

Simplicity 1740591A

BRACKET, Chute Gear
(Superseded to 1740591AYP)

$22.99

$

Usually ships in 2-12 days

0

0340-70

Simplicity 724605

PIN, Cotter, 5/8 x 1/2
(Superseded to 579493MA)

$4.49

$

In Stock, only 2 left!

0

0340-80

Simplicity 722076

YOKE TUBE ASSEMBLY
(Superseded to 1501075YZMA)

$10.99

$

In Stock, only 1 left!

0

0340-90

Simplicity 724564

PIN, Universal Joint, 3/8 x 1
(Superseded to 578060MA)

$7.49

$

In Stock, only 1 left!

0

0340-100

Simplicity 724579

PIN, Clevis, 1/4D x 1-3/16
(Superseded to 578309MA)

$5.49

$

In Stock, Qty 9

0

0340-110

Simplicity 724565

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.49

$

In Stock, Qty 5

0

0350

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

0360

Simplicity 1935450

CAPSCREW, Hex-Flange Head, 1/4-20 x 3/4, G5
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

0370

Simplicity 1706085

DECAL, Hinge
(Superseded to 1706085SM)

$13.99

$

Usually ships in 2-12 days

0
