I 1224 E (1695659) - Simplicity 24" Snow Thrower, 11hp Auger Drive Group - Medium Duty Parts Diagram

24" Snow Thrower, 11hp

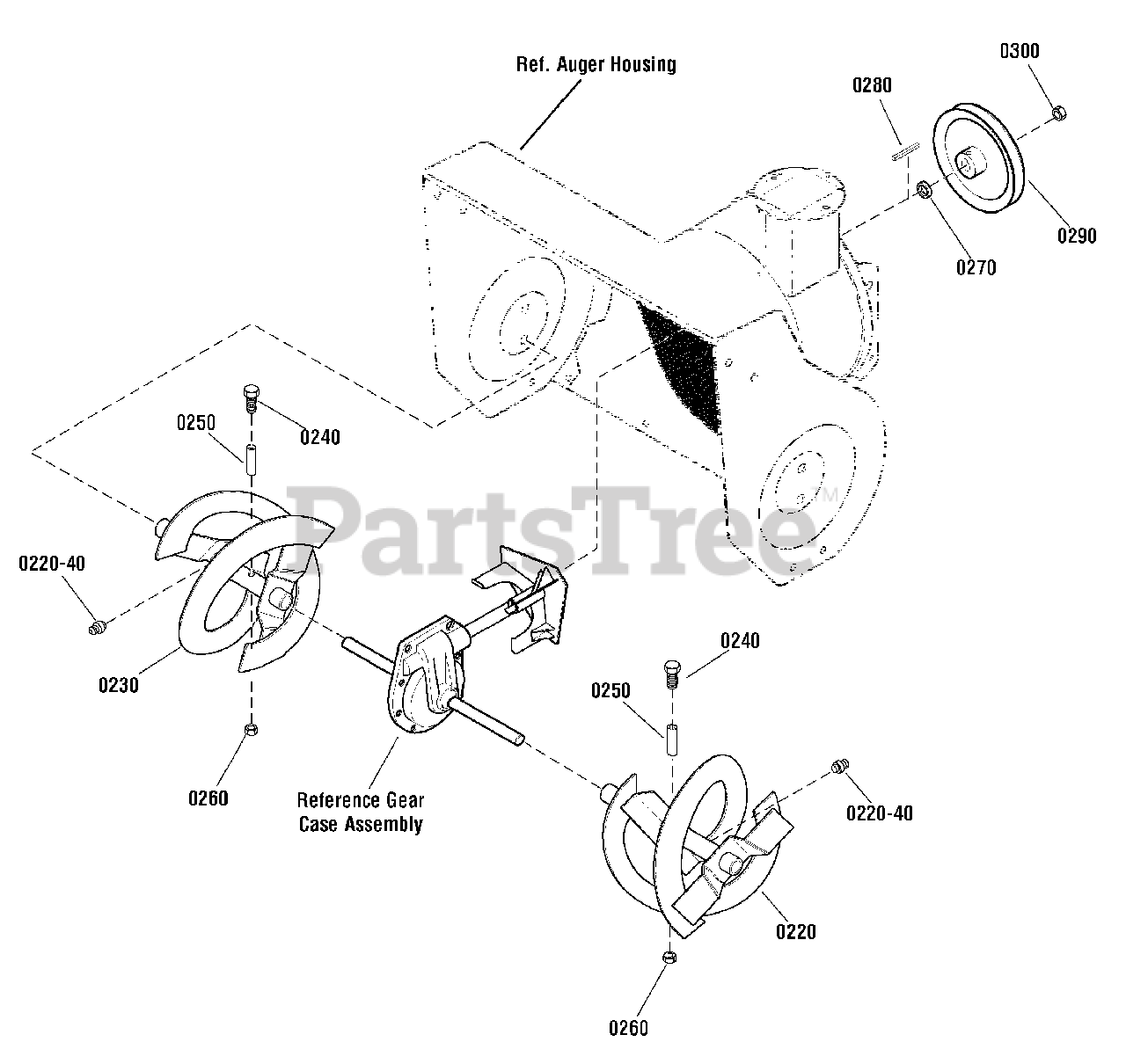

Auger Drive Group - Medium Duty Parts Diagram

  • Title
0220

Simplicity 1738299A

AUGER ASSEMBLY, L.H.
(Superseded to 1738299AYP)

Note: (Includes Ref. No. 0220-40)

$158.99

$

Usually ships in 2-12 days

0

0220-40

Simplicity 721620

FITTING, Zerk
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0230

Simplicity 1738300A

AUGER ASSEMBLY, R.H.
(Superseded to 1738300BMYP)

Note: (Includes Ref. No. 0220-40)

$128.99

$

Usually ships in 2-12 days

0

0240

Simplicity 726061

SCREW, 1/4-20 x 1-3/4
(Superseded to 703057)

$5.99

$

In Stock, Qty 5

0

0250

Simplicity 723913

SPACER
(Superseded to 703058)

$7.49

$

In Stock, only 3 left!

0

0260

Simplicity 725429

NUT, Hex, Centerlock, 1/4-20
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 20+

0

0270

Simplicity 722110

SPACER, Friction Pulley
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

0280

Simplicity 722726

KEY, Square
(Superseded to 2001022MA)

$4.49

$

In Stock, Qty 12

0

0290

Simplicity 724731

PULLEY
(Superseded to 583146MA)

$

$

Not available

0300

Simplicity 722389

NUT, Hex Flange, Serrated, 1/2-20
(Superseded to 15X112MA)

$5.49

$

In Stock, only 2 left!

0
