HZS 18483 BVE (84730) - Snapper Yard Cruiser 48" Zero-Turn Mower, 18hp 48" Spindle Assembly (Series 3) Parts Diagram

Yard Cruiser 48" Zero-Turn Mower, 18hp

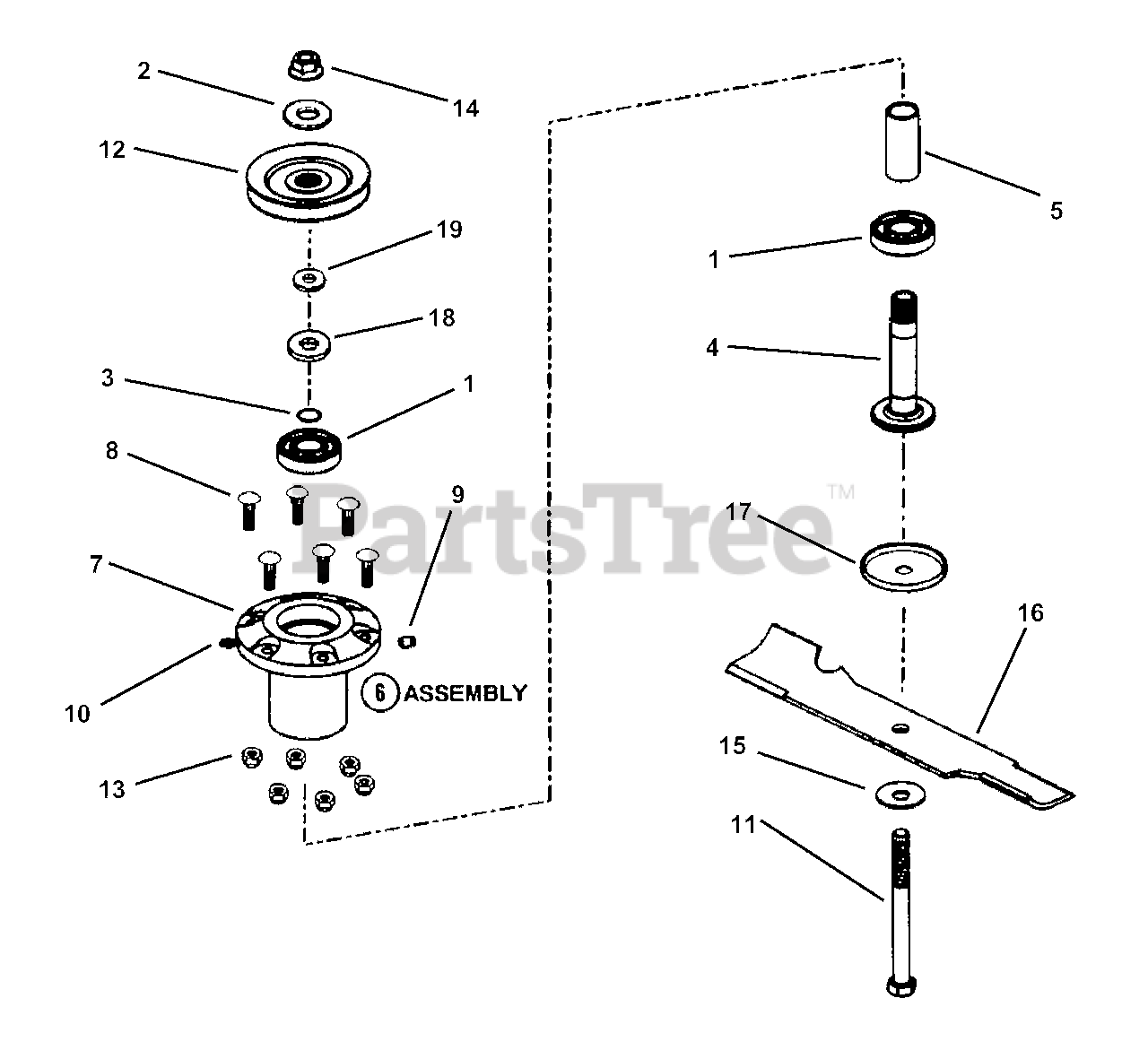

48" Spindle Assembly (Series 3) Parts Diagram

  • Title

1

Snapper 7029422

BEARING, Sealed
(Superseded to 7029422YP)

Note: 54011 Spindle assembly consists of Items 1, 3, 4, 5, 6, 9, & 10

$

$

Not available

2

Snapper 7027344

WASHER, Spindle
(Superseded to 7027344SM)

$3.99

$

In Stock, only 2 left!

0

3

Snapper 7029274

SNAP-RING, Spindle Shaft
(Superseded to 7029274YP)

Note: 54011 Spindle assembly consists of Items 1, 3, 4, 5, 6, 9, & 10

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7059311

SHAFT, Spindle
(Superseded to 7059311YP)

Note: 54011 Spindle assembly consists of Items 1, 3, 4, 5, 6, 9, & 10

$

$

Not available

5

Snapper 7029254

SPACER, Bearing
(Superseded to 7029254YP)

Note: 54011 Spindle assembly consists of Items 1, 3, 4, 5, 6, 9, & 10

$21.99

$

In Stock, only 4 left!

0

6

Snapper 7054017

ASSEMBLY, Housing
(Superseded to 7058237YP)

Note: (includes items 7 thru 10); 54011 Spindle assembly consists of Items 1, 3, 4, 5, 6, 9, & 10

$

$

Not available

7

Snapper 7058237

HOUSING, Spindle
(Superseded to 7058237YP)

Note: Was 29252

$

$

Not available

8

Snapper 7029302

BOLT, 3/8-16 x 1-1/4" Rib Necked
(Superseded to 7029302YP)

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7029384

VENT, Spindle
(Superseded to 7029384YP)

Note: 54011 Spindle assembly consists of Items 1, 3, 4, 5, 6, 9, & 10

$14.99

$

In Stock, only 2 left!

0

10

Snapper 7076998

LUBE FITTING, 1/4-28 Thread Forming
(Superseded to 703153)

Note: Was 29275, 54011 Spindle assembly consists of Items 1, 3, 4, 5, 6, 9, & 10

$3.99

$

In Stock, Qty 8

0

11

Snapper 7063235

BOLT, Blade 5/8-11 x 7" Hex Head, Grade 5
(Superseded to 7063235YP)

$26.99

$

In Stock, only 1 left!

0

12

Snapper 7058033

PULLEY, 5-3/4" O.D.
(Superseded to 7058033YP)

$120.99

$

Usually ships in 2-12 days

0

13

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7063237

NUT, 5/8-11 Hex Flange Lock, Grade 5
(Superseded to 7063237YP)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7016440

WASHER, Beveled
(Superseded to 7016440SM)

$8.49

$

In Stock, Qty 20+

0

16

Snapper 7075771

BLADE, 16-5/16"
(Superseded to 7075771BZYP)

Note: Was 29247

$28.99

$

Usually ships in 2-12 days

0

17

Snapper 7072077

CUP, Spindle Cover
(Superseded to 7072077YP)

$61.99

$

Usually ships in 2-12 days

0

Snapper 7063240

KIT, Bearing Seal Field Fix
(Superseded to 7063240YP)

Note: (incl. items 18 & 19); For bearing pre-seal kit installation, discard item 3 & replace with items 18 & 19 as shown.

$180.99

$

Usually ships in 2-12 days

0

18

Snapper 7063238

SEAL, Nylos
(Superseded to 7063238YP)

$58.99

$

In Stock, only 2 left!

0

19

Snapper 7013370

WASHER
(Superseded to 7013370YP)

$

$

Not available

Snapper 7054011

Spindle assembly
(Superseded to 7054011YP)

Note: Items 1, 3, 4, 5, 6, 9, & 10

$

$

Not available
