HZS 18483 BVE (84730) - Snapper Yard Cruiser 48" Zero-Turn Mower, 18hp 48" Mower Deck Assembly (Series 3) (Part 2) Parts Diagram

Yard Cruiser 48" Zero-Turn Mower, 18hp

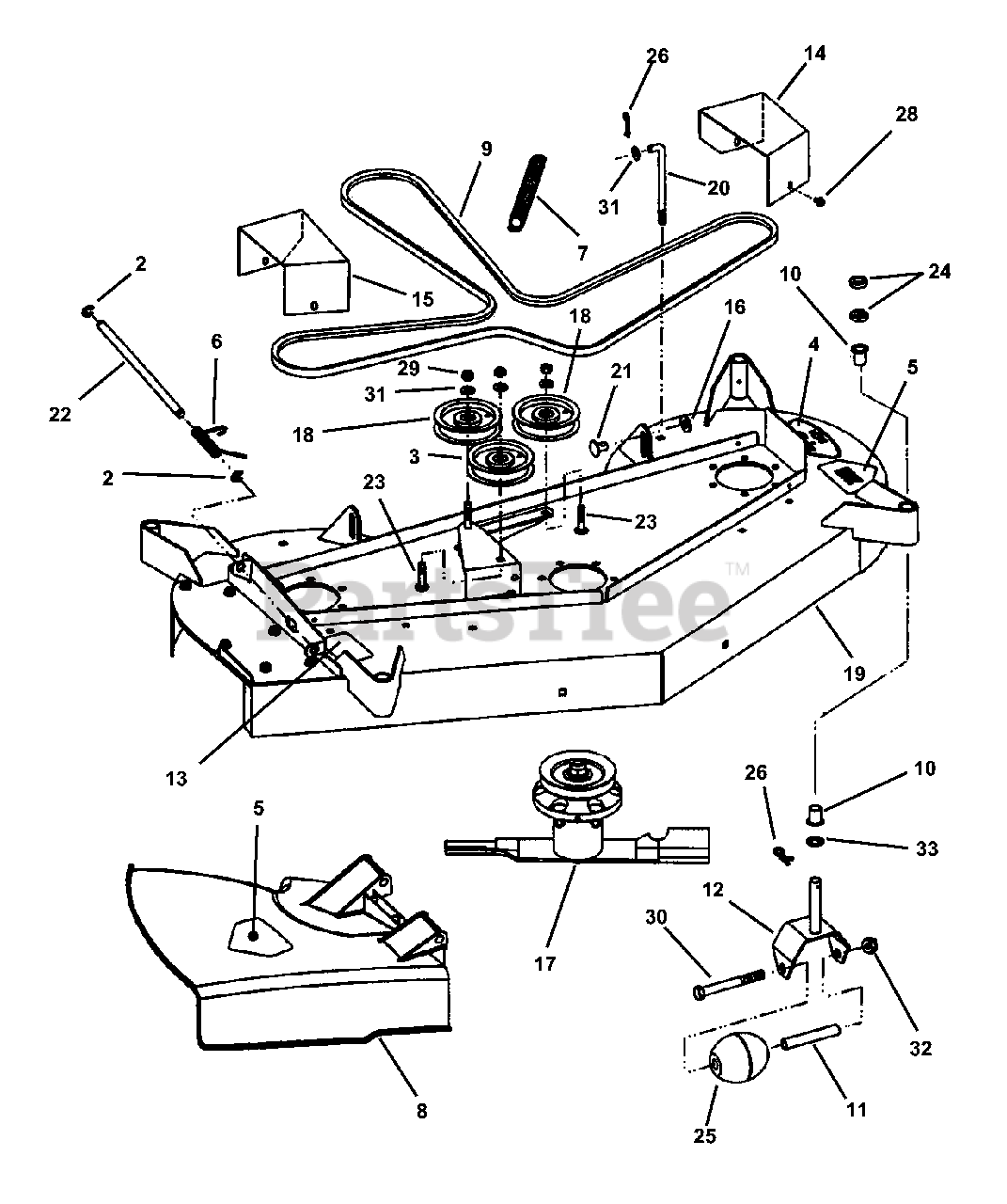

48" Mower Deck Assembly (Series 3) (Part 2) Parts Diagram

  • Title

2

Snapper 7014341

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 11

0

3

Snapper 7018574

IDLER, 4.12" Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

4

Snapper 7024431

DECAL, 48" Deck
(Superseded to 7024431YP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 7013010

DECAL, CPSC
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 11

0

6

Snapper 7035813

SPRING, Chute
(Superseded to 7035813SM)

$24.99

$

In Stock, only 1 left!

0

7

Snapper 7058508

SPRING, Idler Primary
(Superseded to 7058508YP)

$50.99

$

In Stock, only 2 left!

0

8

Snapper 7029425

CHUTE, Side Discharge
(Superseded to 7104733YP)

$87.99

$

In Stock, Qty 20+

0

9

Snapper 7058509

V-BELT, HA Section,
(Superseded to 7058509YP)

Note: (120.722" Nominal Effective Length)

$

$

Not available

10

Snapper 7043858

BEARING, 1/2 x 3/4" Plastic
(Superseded to 7043858YP)

Note: Was 46278

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7046301

SLEEVE, Caster Wheel
(Superseded to 7046301YP)

$14.99

$

In Stock, Qty 5

0

12

Snapper 7046302

WELDMENT, Bracket/Shaft Caster
(Superseded to 7046302YP)

$75.99

$

Usually ships in 2-12 days

0

13

Snapper 7046720

DECAL, Chute/Deflector
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

14

Snapper 7047093

COVER, Belt L.H.
(Superseded to 7047093YP)

$19.99

$

Usually ships in 2-12 days

0

15

Snapper 7047094

COVER, Belt R.H.
(Superseded to 7047094YP)

$13.99

$

Usually ships in 2-12 days

0

16

Snapper 7090667

WASHER, 1/2" Flat
(Superseded to 7090667YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7057674

ASSEMBLY, 48" Spindle

Note: (See "48" Spindle Assembly (Series 3")

$

$

Currently unavailable

18

Snapper 7072319

IDLER, 3-1/4" Flat
(Superseded to 7072319SM)

$74.99

$

In Stock, only 1 left!

0

19

ASSEMBLY, 48" Painted Mower Deck

Note: (See "48" Mower Deck Assembly (Series 3)" & "42" Mower Deck Assembly")

$

$

Not available

20

Snapper 7058086

LINK, Leveling
(Superseded to 7058086YP)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper 7058087

SUPPORT, Swivel

$

$

Not available

22

Snapper 7072044

HINGE PIN, Chute
(Superseded to 7072044YP)

$29.99

$

In Stock, only 1 left!

0

23

Snapper 7091810

BOLT, 3/8-16 x 1-3/4" Short Neck Carriage, Grade 5
(Superseded to 703879)

Note: Was 91158

$3.99

$

In Stock, Qty 7

0

24

Snapper 7076436

SPACER, Blade
(Superseded to 7076436YP)

$7.49

$

In Stock, only 4 left!

0

25

Snapper 7073142

ROLLER, Low Density Polyethylene
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 7

0

26

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

29

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, Grade 5 or B
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 4 left!

0

30

Snapper 7090993

SCREW, 1/2-20 x 4-1/2" Hex Head Cap, Grade 5
(Superseded to 7090993YP)

$5.49

$

In Stock, only 1 left!

0

31

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7090266

NUT, 1/2-20 Hex Center Lock,
(Superseded to 7090266YP)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7091628

WASHER, .64 I.D. Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0
