HZS 18483 BVE (84730) - Snapper Yard Cruiser 48" Zero-Turn Mower, 18hp 48" Mower Deck Assembly (Series 3) (Part 1) Parts Diagram

Yard Cruiser 48" Zero-Turn Mower, 18hp

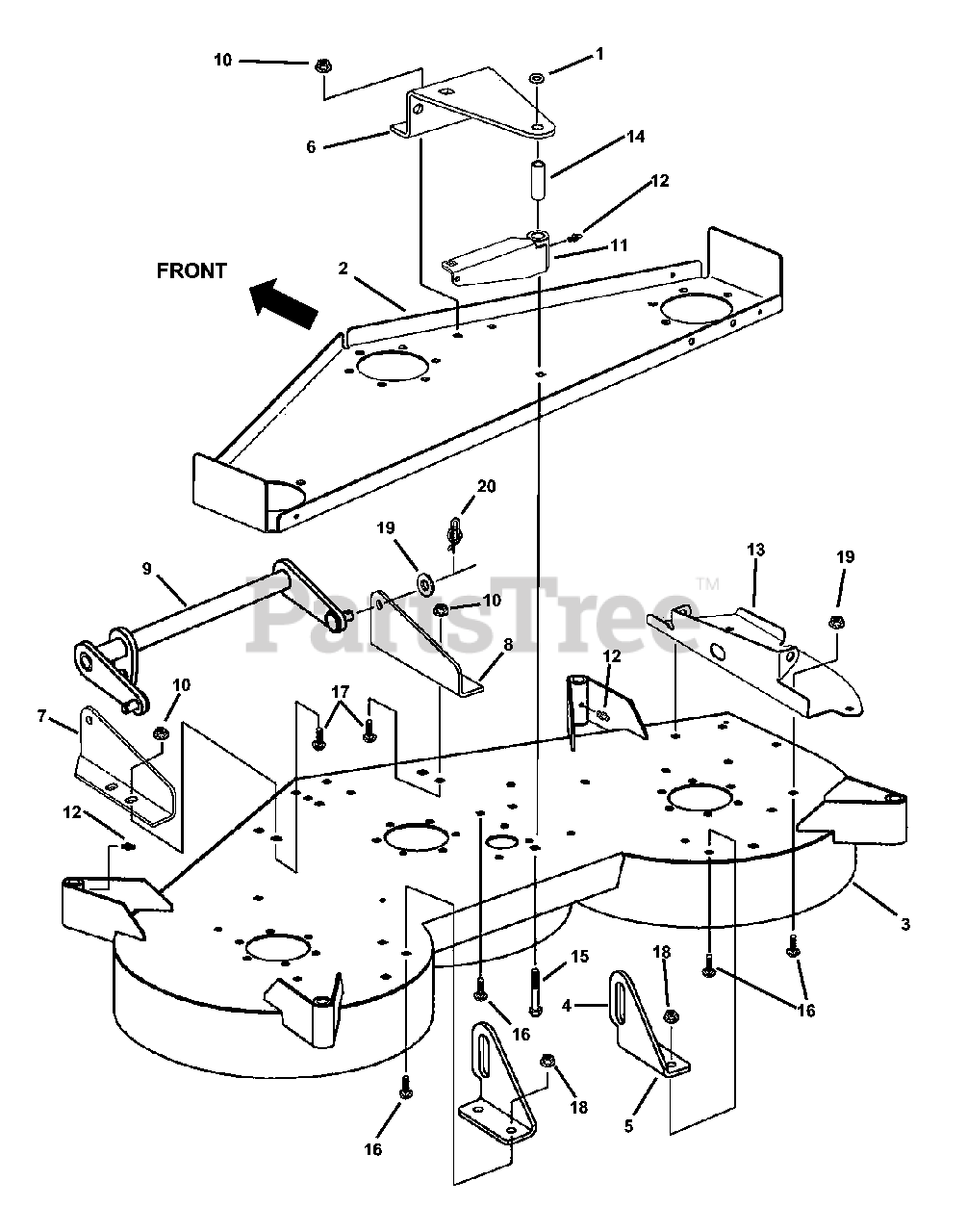

48" Mower Deck Assembly (Series 3) (Part 1) Parts Diagram

  • Title

1

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper 7046609

STIFFENER, Deck
(Superseded to 7046609YP)

$176.99

$

Usually ships in 2-12 days

0

3

Snapper 7063297

WELDMENT, 48" Deck
(Superseded to 7063297YP)

Note: Was 46611

$757.99

$

Usually ships in 2-12 days

0

4

Snapper 7047047

HANGER, R.H. Rear
(Superseded to 7047047YP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 7047048

HANGER, L.H. Rear

$

$

Not available

6

Snapper 7047049

BRACKET, Pulley Mounting
(Superseded to 7047049YP)

$30.99

$

Usually ships in 2-12 days

0

7

Snapper 7074230

BRACKET, L.H. Front Lift
(Superseded to 7074230YP)

$38.99

$

Usually ships in 2-12 days

0

8

Snapper 7074231

BRACKET, R.H. Front Lift
(Superseded to 7074231YP)

$34.99

$

Usually ships in 2-12 days

0

9

Snapper 7059240

WELDMENT, Front Lift Arm

$

$

Not available

10

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 7058076

ASSEMBLY, Idler Arm/Lube Fitting
(Superseded to 7058076YP)

Note: (includes 4-6706, Idler Arm Weldment and one item 12)

$91.99

$

In Stock, only 2 left!

0

12

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

13

Snapper 7058119

BRACKET, Hinge (48" Deck)
(Superseded to 7058119YP)

$63.99

$

Usually ships in 2-12 days

0

14

Snapper 7071698

SPACER, Pivot Collar

$27.99

$

Usually ships in 2-12 days

0

15

Snapper 7091888

BOLT, 3/8-16 x 4" Square Neck Carriage, Grade 5
(Superseded to 7091888YP)

$10.99

$

In Stock, only 1 left!

0

16

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7091923

BOLT, 3/8-16 x 1" Short Neck Carriage, Grade 5
(Superseded to 7091923SM)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7091593

PIN, 3/64 x 1-7/32" Locking Cotter
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0
