HZS 18482 BVE (84305) - Snapper Yard Cruiser 48" Zero-Turn Mower, 18hp Brake / Clutch Lever Assembly Parts Diagram

Yard Cruiser 48" Zero-Turn Mower, 18hp

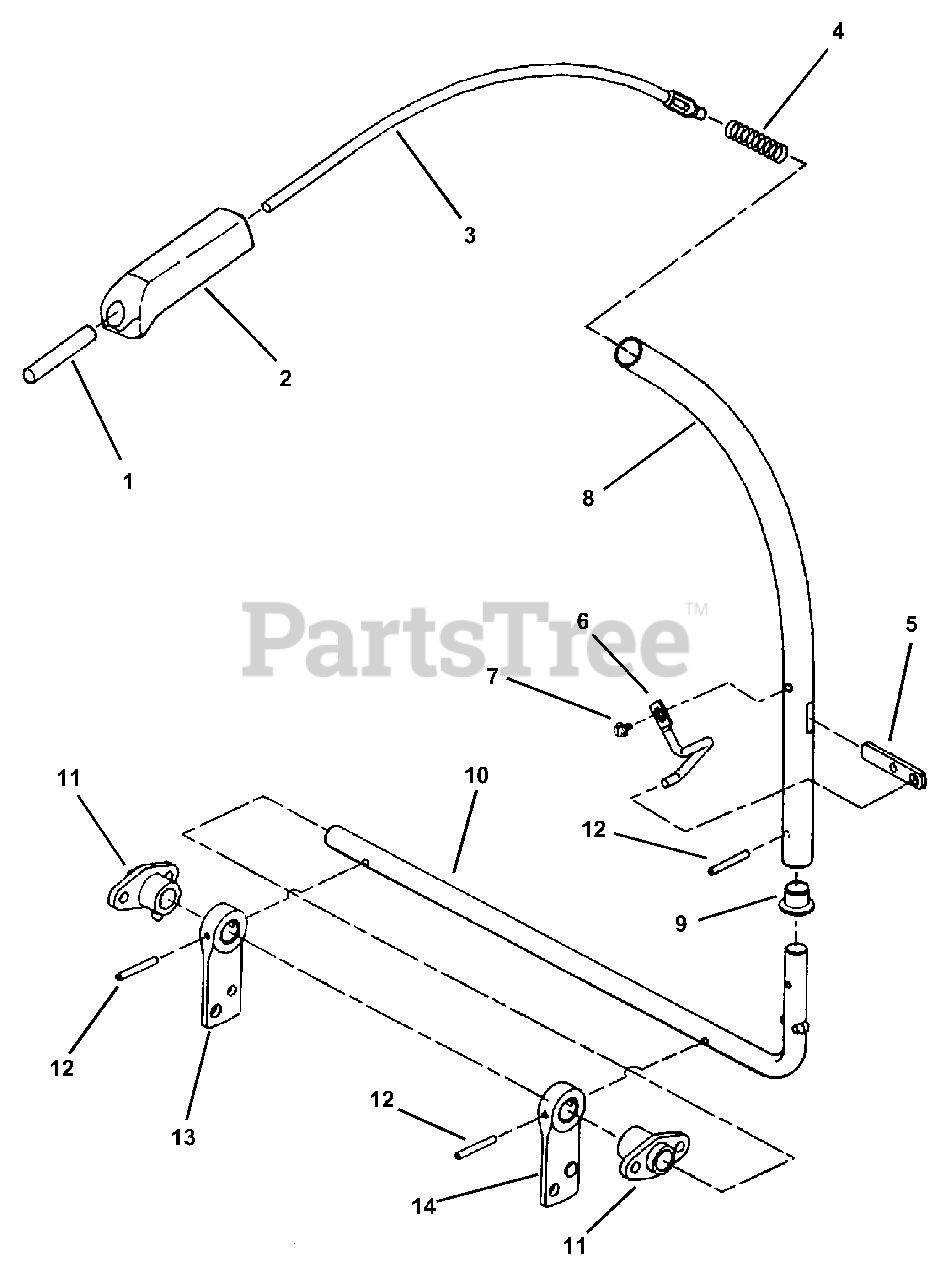

Brake / Clutch Lever Assembly Parts Diagram

  • Title

1

Snapper 7023801

GRIP, 5/16 x 2-1/2" Vinyl
(Superseded to 7023801YP)

Note: Was 29383

$4.49

$

In Stock, Qty 6

0

2

Snapper 7035945

GRIP, Brake/Clutch Handle
(Superseded to 7035945YP)

$9.49

$

Usually ships in 2-12 days

0

3

Snapper 7058542

ROD, Park Brake
(Superseded to 7058542YP)

$21.99

$

Usually ships in 2-12 days

0

4

Snapper 7035946

SPRING, Brake/Clutch Release

$

$

Not available

5

Snapper 7035485

ARM, Brake/Clutch Lever
(Superseded to 7035485YP)

$12.99

$

Usually ships in 2-12 days

0

6

Snapper 7035484

PIVOT, Brake/Clutch Lever

$

$

Not available

7

Snapper 7091084

SCREW, 1/4-20 x 3/8" Slotted Hex Washer Head, Self-Tapping
(Superseded to 703583)

Note: Was 91293

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7058541

TUBE, Brake/Clutch Lever

$

$

Not available

9

Snapper 7010694

BUSHING, Nylon
(Superseded to 7010694YP)

$4.49

$

In Stock, only 2 left!

0

10

Snapper 7029207

ROD, Brake/Clutch
(Superseded to 7029207YP)

$91.99

$

Usually ships in 2-12 days

0

11

Snapper 7052431

PIVOT, Foot Shaft Assembly

$

$

Not available

12

Snapper 7090841

ROLL-PIN, 3/16 x 1-1/2"
(Superseded to 7090841YP)

$4.49

$

In Stock, only 1 left!

0

13

Snapper 7029208

ARM, Brake/Clutch

$63.99

$

Usually ships in 2-12 days

0

14

Snapper 7042614

ARM, Brake/Clutch

$62.99

$

Usually ships in 2-12 days

0
