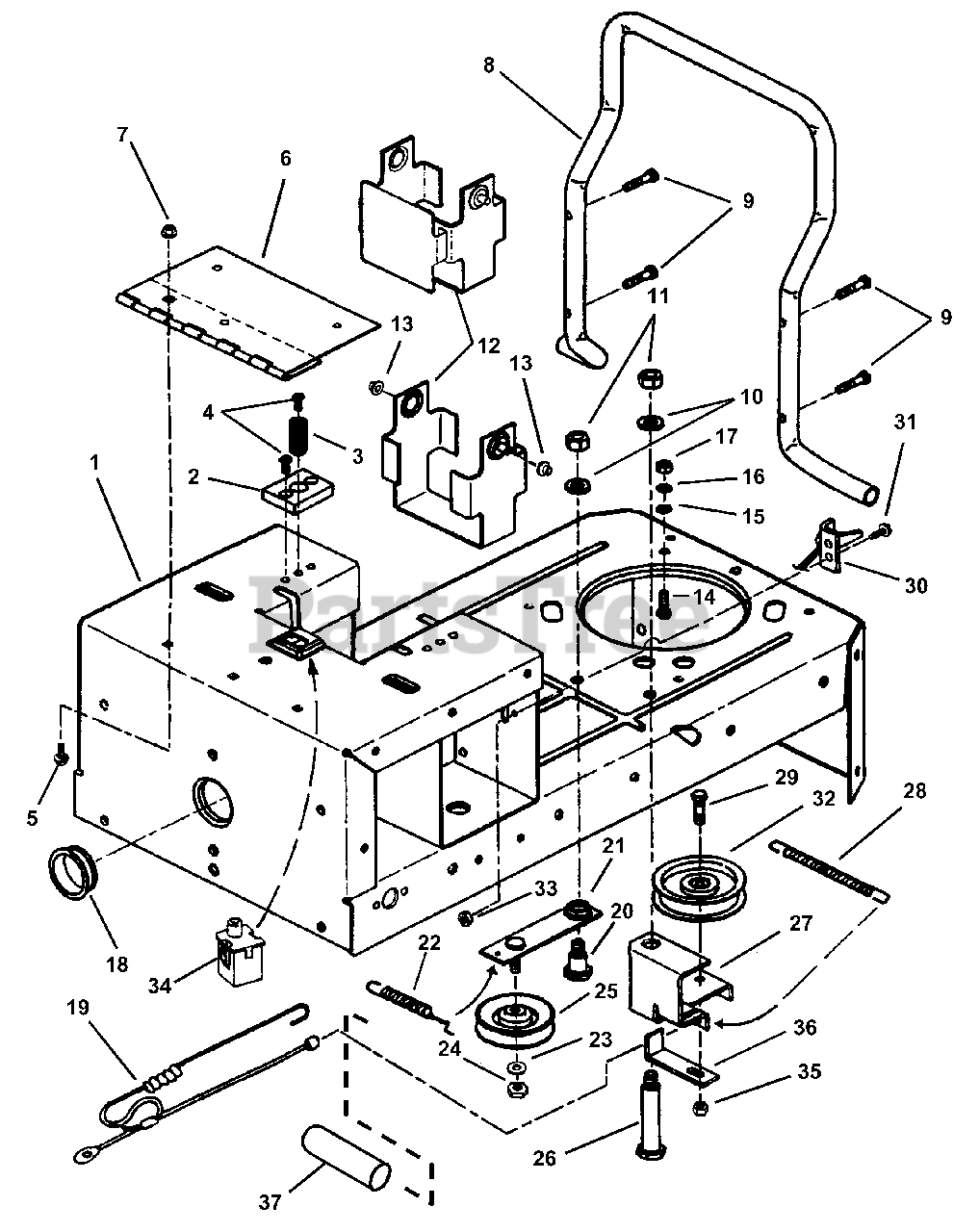

Yard Cruiser 48" Zero-Turn Mower, 16hp

Rear Frame Assembly Parts Diagram

  • Title

1

Snapper 7041782

FRAME, Rear
(Superseded to 7041782YP)

$683.99

$

Usually ships in 2-12 days

0

2

Snapper 7035368

CUSHION, Seat Support
(Superseded to 7035368YP)

$9.99

$

Usually ships in 2-12 days

0

3

Snapper 7035369

SPRING, Seat Support

$

$

Not available

4

Snapper 7090999

SCREW, 1/4-20 x 5/8" Pan Head, Self-Tapping
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7090731

BOLT, 5/16-18 x 1/2" Carriage, Grade 5
(Superseded to 703798)

Note: Was 90004

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7034959

HINGE, Seat
(Superseded to 7034959YP)

$50.99

$

Usually ships in 2-12 days

0

7

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

8

Snapper 7033587

BUMPER, Rear
(Superseded to 7033587YP)

$149.99

$

In Stock, only 1 left!

0

9

Snapper 7091506

SCREW, 5/16-18 x 1-1/2" Hex Washer Head, Self-Tapping
(Superseded to 704318)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 7091587

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

11

Snapper 7091316

NUT, 1/2-13 Hex, Grade B
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

12

Snapper 7041793

BRACKET, Battery

$

$

Not available

Snapper 7058238

BRACKET, Battery

Note: (48" Deck Only)

$

$

Not available

13

Snapper 7013321

BUSHING
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap
(Superseded to 703301)

$3.99

$

In Stock, only 3 left!

0

15

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7091315

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7091297

NUT, 5/16-24 Hex, Grade 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7011033

GROMMET
(Superseded to 7011033YP)

$

$

Not available

19

Snapper 7029464

CABLE, Brake/Clutch
(Superseded to 7029464YP)

$31.99

$

Usually ships in 2-12 days

0

20

Snapper 7091730

BOLT, 1/2-13 x 5/8" Thread, .75 x .788 Shoulder

$24.99

$

Usually ships in 2-12 days

0

21

Snapper 7058728

IDLER ARM, Primary
(Superseded to 7058728YP)

Note: Was 41792 (Now 58728 + 58692)

$110.99

$

Usually ships in 2-12 days

0

22

Snapper 7058692

SPRING, Clutch/Brake (5" long)
(Superseded to 7058692YP)

$14.99

$

In Stock, Qty 14

0

23

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, Grade 5
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

25

Snapper 7024344

PULLEY, Idler 3.30 Dia.
(Superseded to 7024344YP)

$39.99

$

Usually ships in 2-12 days

0

26

Snapper 7091725

BOLT, 1/2-13 x 5/8" Thread, .75 x 3.23 Shoulder

$52.99

$

In Stock, only 1 left!

0

27

Snapper 7034937

BRACKET, Hydraulic Idler

$

$

Not available

28

Snapper 7045168

SPRING, Drive Idler (3/4" x 10" long)
(Superseded to 7045168YP)

$26.99

$

In Stock, only 1 left!

0

29

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, Grade 5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

30

Snapper 7039485

CABLE, Hydro Release Valve
(Superseded to 7039485YP)

$

$

Not available

31

Snapper 7091240

SCREW, #10-32 x 5/8" Hex Washer Head, Machine
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

32

Snapper 7018574

IDLER, 4.12 Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

33

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper 7022886

SWITCH, Seat
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

35

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

36

Snapper 7034938

GUIDE, Belt
(Superseded to 7034938YP)

$19.99

$

Usually ships in 2-12 days

0

37

Snapper 7058691

COVER, Spring
(Superseded to 7058691YP)

$6.49

$

In Stock, only 1 left!

0
