HZS 15421 KVE (82547) - Snapper Yard Cruiser 42" Zero-Turn Mower, 15hp Spindle Assembly Parts Diagram

Yard Cruiser 42" Zero-Turn Mower, 15hp

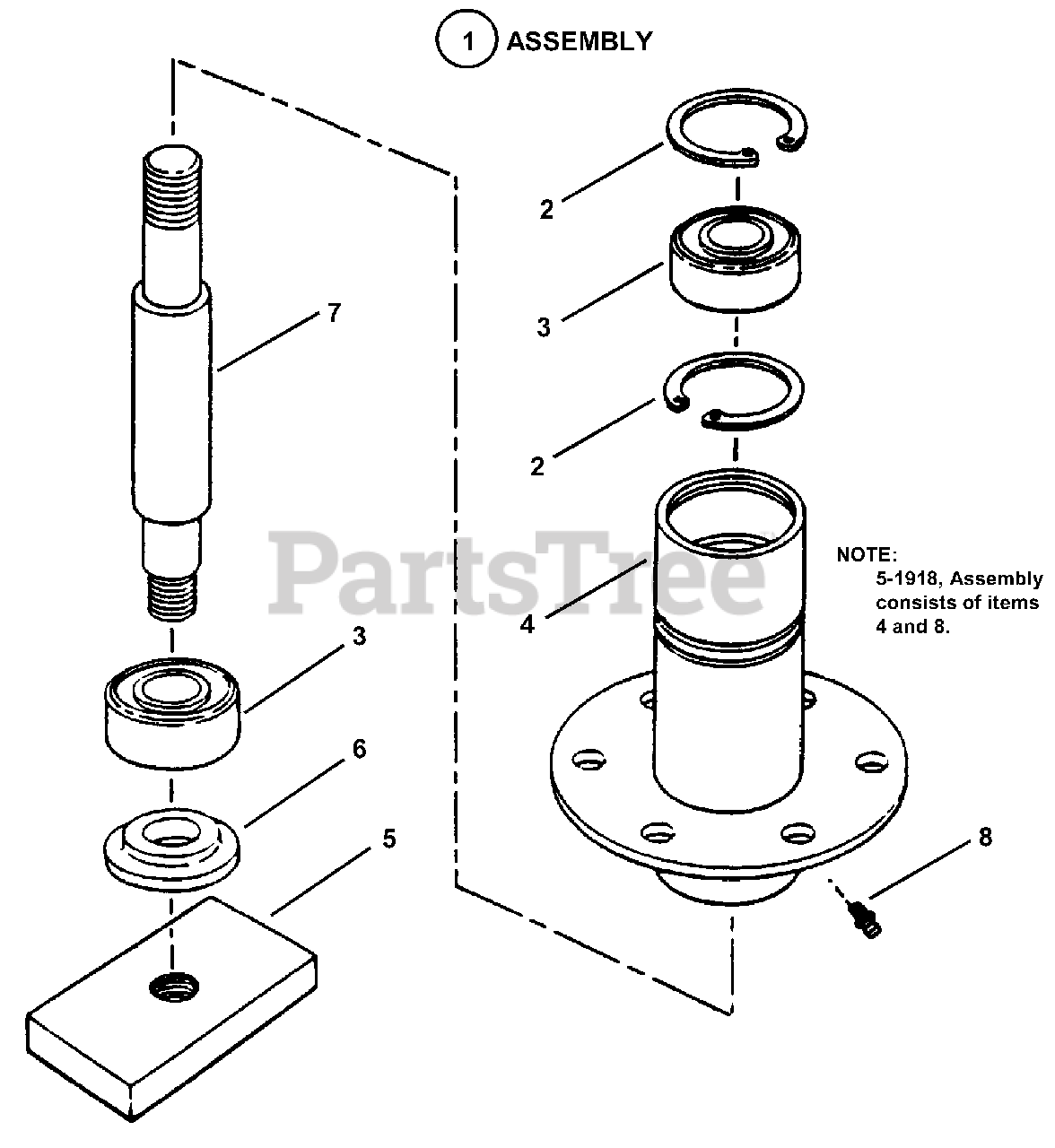

Spindle Assembly Parts Diagram

  • Title
1

Snapper 7051914

ASSEMBLY, Spindle Housing, 42" Cutting Deck

Note: Was 59723 (Includes 2 thru 8)

$

$

Not available

2

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 7051918

HOUSING, Spindle (weldment) (5.1" overall length)
(Superseded to 7051918YP)

Note: Was 47917

$

$

Not available

5

Snapper 7032294

HOLDER, Blade
(Superseded to 7032294YP)

$

$

Not available

6

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

7

Snapper 7027668

SPINDLE (6.5" overall length)
(Superseded to 7027668YP)

$46.99

$

In Stock, only 1 left!

0

8

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

51918

Snapper 7051918

ASSEMBLY
(Superseded to 7051918YP)

Note: (Consists of items 4 and 8.)

$

$

Not available
