HZS 15421 KVE (82547) - Snapper Yard Cruiser 42" Zero-Turn Mower, 15hp Mower Deck Assembly (Part 2) Parts Diagram

Yard Cruiser 42" Zero-Turn Mower, 15hp

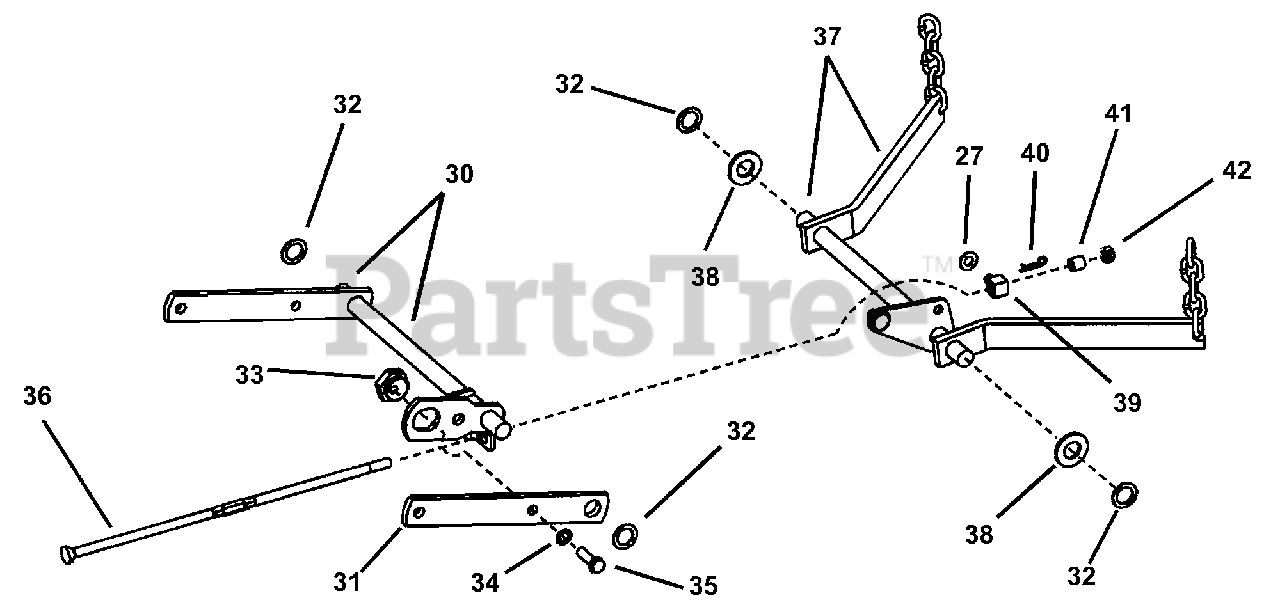

Mower Deck Assembly (Part 2) Parts Diagram

  • Title

27

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7042586

LIFT ARM, Front (weldment)
(Superseded to 7042586YP)

$128.99

$

Usually ships in 2-12 days

0

31

Snapper 7034815

LIFT ARM, Front
(Superseded to 7034815YP)

$18.99

$

Usually ships in 2-12 days

0

32

Snapper 7010935

WASHER, 3/4" x 1-1/8"
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

34

Snapper 7090390

WASHER, 3/8" Int. Tooth Lock
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 7090163

SCREW, 3/8-24 x 1-1/4" Hex Head Cap

$

$

Not available

36

Snapper 7035495

ROD, Cutter Deck Timing
(Superseded to 7035495YP)

$22.99

$

Usually ships in 2-12 days

0

37

Snapper 7042585

LIFT ARM, Rear (weldment)
(Superseded to 7042585YP)

$176.99

$

Usually ships in 2-12 days

0

38

Snapper 7032028

WASHER, 3/4 I.D. x 1-1/2" O.D. Flat
(Superseded to 7032028YP)

$4.99

$

Usually ships in 2-12 days

0

39

Snapper 7024586

SWIVEL, Brake Link
(Superseded to 7024586YP)

$4.99

$

Usually ships in 2-12 days

0

40

Snapper 7091310

HAIR PIN, #13
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

41

Snapper 7021815

SPACER, MF1200

$7.99

$

Usually ships in 2-12 days

0

42

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

Snapper 7054343

42" Deck Sub-Assembly

Note: Includes items 1 thru 42 as well as items 70, 73 & 74.

$

$

Not available
