HZS 15421 KVE (82547) - Snapper Yard Cruiser 42" Zero-Turn Mower, 15hp Mower Deck Assembly (Part 1) Parts Diagram

Yard Cruiser 42" Zero-Turn Mower, 15hp

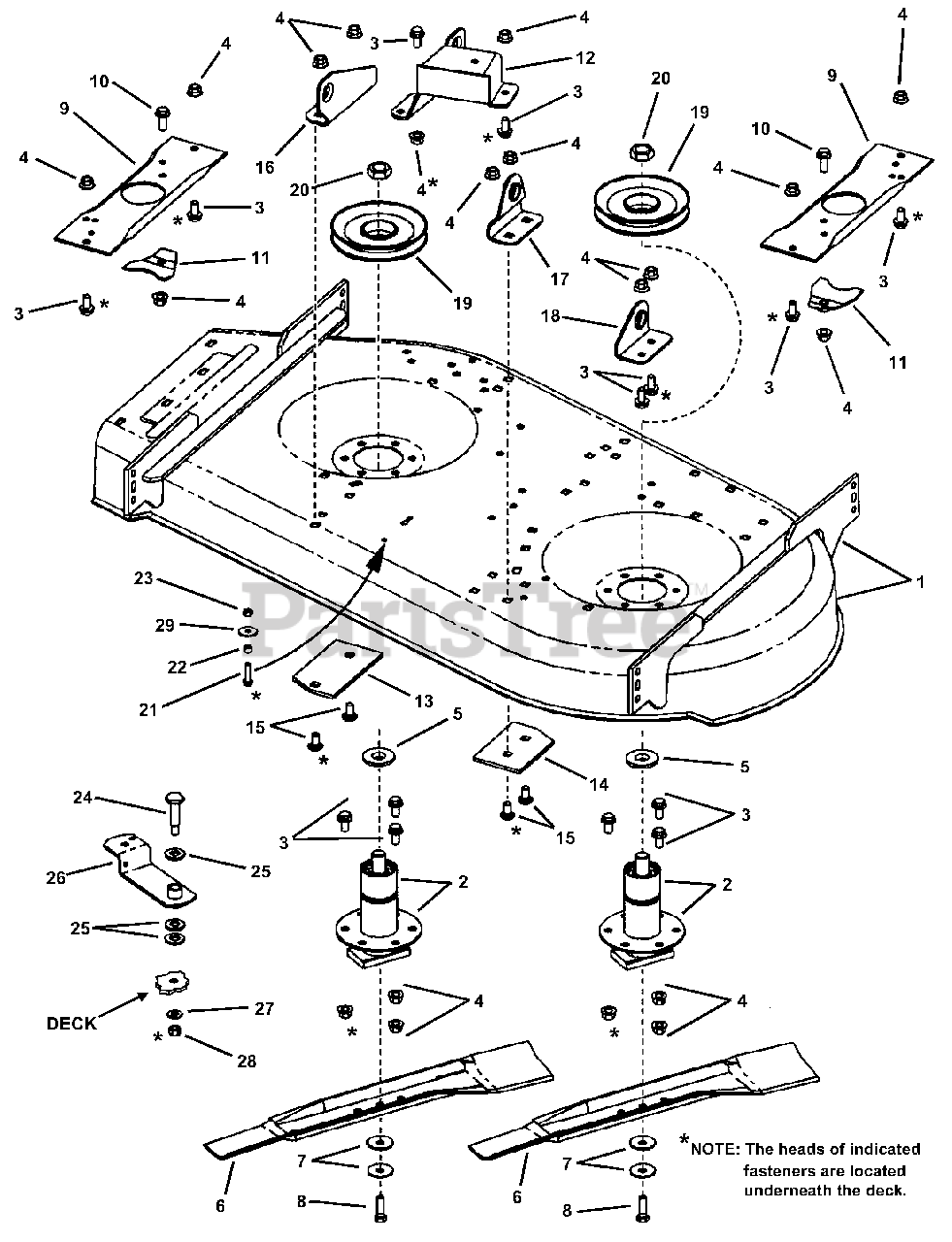

Mower Deck Assembly (Part 1) Parts Diagram

  • Title

1

Snapper 7061958

DECK, Painted Shell w/Decals

$

$

Not available

2

Snapper 7051914

ASSEMBLY, Spindle Brake

Note: Was 59723

$

$

Not available

3

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock, Grade 5
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

4

Snapper 7091619

NUT, 3/8-16 Hex Fl. Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

5

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 20+

0

6

Snapper 7026691

BLADE, 21" Standard Lift
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 20+

0

7

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

Usually ships in 2-12 days

0

8

Snapper 7090824

SCREW, 3/8-24 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

9

Snapper 7033366

BRACE, Spindle
(Superseded to 7033366YP)

$39.99

$

Usually ships in 2-12 days

0

10

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock
(Superseded to 704038)

Note: Was 90582

$5.99

$

In Stock, only 2 left!

0

11

Snapper 7051747

ASSEMBLY, Spindle Lock
(Superseded to 7051747YP)

$23.99

$

In Stock, only 1 left!

0

12

Snapper 7044651

IDLER, Stationary
(Superseded to 7044651YP)

$103.99

$

Usually ships in 2-12 days

0

13

Snapper 7042811

REINFORCEMENT, R.H.

$

$

Not available

14

Snapper 7042812

REINFORCEMENT, L.H.
(Superseded to 7042812YP)

$21.99

$

Usually ships in 2-12 days

0

15

Snapper 7091547

BOLT, 3/8-16 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7035982

BRACKET, R.H. Front Lift

$

$

Not available

17

Snapper 7035983

BRACKET, L.H. Front Lift
(Superseded to 7035983YP)

$77.99

$

Usually ships in 2-12 days

0

18

Snapper 7035985

BRACKET, L.H. Rear Lift
(Superseded to 7035985YP)

$39.99

$

Usually ships in 2-12 days

0

19

Snapper 7036437

PULLEY, 5-1/4"
(Superseded to 7036437YP)

$90.99

$

In Stock, only 1 left!

0

20

Snapper 7074467

NUT, 3/4-16 Hex Flange Jam, Grade 8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 10

0

21

Snapper 7090872

BOLT, 1/4-20 x 1-1/8, Grade 5
(Superseded to 7090872YP)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7010916

SPACER, .26 x .3
(Superseded to 7010916YP)

$5.49

$

In Stock, Qty 8

0

23

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

24

Snapper 7091526

SHOULDER BOLT, 3/8-24 x 5/8"
(Superseded to 7091526SM)

$

$

Not available

25

Snapper 7091587

WASHER, 1/2" I.D. x 1-1/16" O.D. Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

26

Snapper 7042650

IDLER ARM

$95.99

$

Usually ships in 2-12 days

0

27

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

29

Snapper 7014241

WASHER, 1/4" Flat
(Superseded to 7014241YP)

$3.99

$

In Stock, only 1 left!

0

Snapper 7054343

42" Deck Sub-Assembly

Note: Includes items 1 thru 42 as well as items 70, 73 & 74.

$

$

Not available
