HZS 14380 BVE (82522) - Snapper Yard Cruiser 38" Zero-Turn Mower, 14hp Front Frame & Cover Assembly (Steel Bodied Models) Parts Diagram

Yard Cruiser 38" Zero-Turn Mower, 14hp

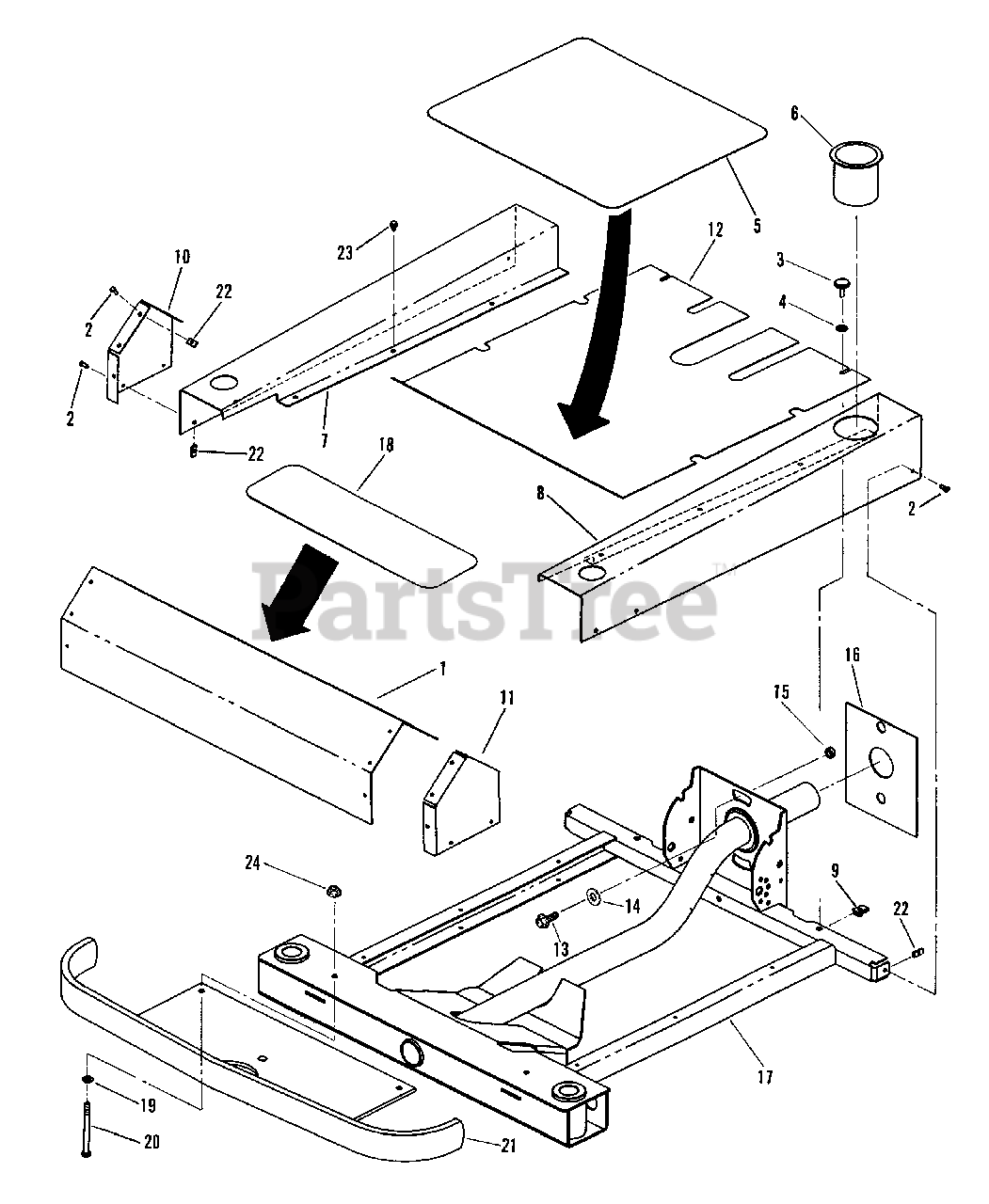

Front Frame & Cover Assembly (Steel Bodied Models) Parts Diagram

  • Title
1

Snapper 7045315

FOOT REST
(Superseded to 7045315YP)

$125.99

$

Usually ships in 2-12 days

0

2

Snapper 7091942

SCREW, #10-24 x 1/2" Pan Head Phillips Machine
(Superseded to 7091942YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7023341

SCREW, 1/4-20 x 3/4" Thumb

$7.99

$

Usually ships in 2-12 days

0

4

Snapper 7091890

WASHER, 1/4" Internal/External Lock
(Superseded to 7091890SM)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7044632

MAT, Floor
(Superseded to 7044632YP)

$27.99

$

Usually ships in 2-12 days

0

6

Snapper 7042968

NLA - HOLDER, Beverage

$

$

Not available

7

Snapper 7045258

RAIL, Front Cover (Right Hand)

$

$

Currently unavailable

8

Snapper 7045259

RAIL, Front Cover (Left Hand)

$

$

Not available

9

Snapper 7023295

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7045322

PLATE, End (Right Hand)

$

$

Currently unavailable

11

Snapper 7045323

PLATE, End (Left Hand)

$

$

Currently unavailable

12

Snapper 7045325

PLATE, Floor

$

$

Not available

13

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Face, Self-Tapping
(Superseded to 704000)

$4.99

$

In Stock, only 1 left!

0

14

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

15

Snapper 7035375

SPACER, Front Frame Pivot

$

$

Not available

16

Snapper 7035374

PLATE, Front Frame Pivot

$7.99

$

Usually ships in 2-12 days

0

17

Snapper 7045255

FRAME, Front

$

$

Currently unavailable

18

Snapper 7045330

PAD, Foot Rest
(Superseded to 7045330YP)

$8.99

$

Usually ships in 2-12 days

0

19

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091058

BOLT, 5/16-18 x 3-3/4"
(Superseded to 7091058YP)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7042921

BUMPER, Front

$

$

Not available

22

Snapper 7091056

NUT, #10-24 Clip

$

$

Not available

23

Snapper 7091084

SCREW, 1/4-20 x 3/8" Self-Tapping
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

24

Snapper 7091601

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
