HZS 14331 BVE (82545) - Snapper Yard Cruiser 33" Zero-Turn Mower, 14hp Deck Assembly (Part 1) Parts Diagram

Yard Cruiser 33" Zero-Turn Mower, 14hp

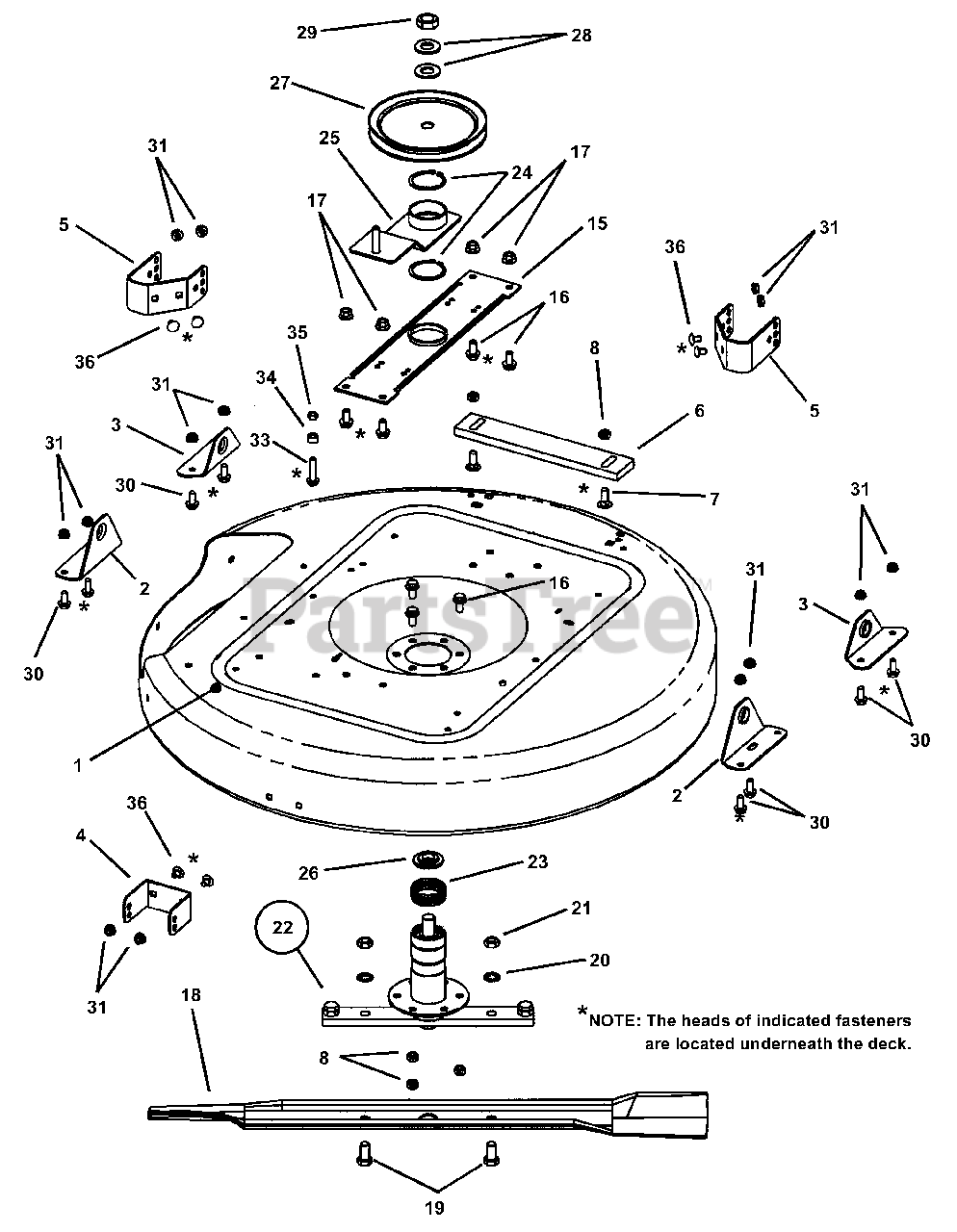

Deck Assembly (Part 1) Parts Diagram

  • Title

Snapper 7054071

ASSEMBLY, 33" Deck (complete)
(Superseded to 7054071YP)

Note: (Includes items 1-74)

$1481.99

$

Usually ships in 2-12 days

0

1

Snapper 7061956

DECK, 33" Replacement Structure
(Superseded to 7061956YP)

Note: This is a painted deck with decals 2-2991, 2-6831 and 4-6720.

$731.99

$

In Stock, only 1 left!

0

2

Snapper 7034866

BRACKET, Deck Lift Slotted

$

$

Not available

3

Snapper 7034867

BRACKET, Deck Lift

$

$

Not available

4

Snapper 7033570

BRACKET, Anti-Scalp Adj. Front
(Superseded to 7033570BMYP)

$19.99

$

In Stock, only 1 left!

0

5

Snapper 7033571

BRKT., Anti-Scalp Adj. Side
(Superseded to 7033571BMYP)

$14.99

$

In Stock, only 4 left!

0

6

Snapper 7036579

BAR, Weight Rear
(Superseded to 7036579YP)

$55.99

$

Usually ships in 2-12 days

0

7

Snapper 7091640

BOLT, 3/8-16 x 1" Carriage
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

8

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

15

Snapper 7038018

BRACE, Spindle
(Superseded to 7038018AYP)

$23.99

$

Usually ships in 2-12 days

0

16

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock, Grade 5
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

17

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

18

Snapper 7034168

BLADE, 33" High Lift
(Superseded to 7034168BZYP)

$26.99

$

In Stock, only 3 left!

0

19

Snapper 7090392

SCREW, 1/2-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7090509

WASHER, 1/2" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

21

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7052917

ASSEMBLY, Spindle
(Superseded to 7052917AYP)

Note: (see "33" Spindle Assembly")

$

$

Not available

23

Snapper 7012670

RING, 2" Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 5

0

24

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

25

Snapper 7042587

ARM, Idler (weldment)
(Superseded to 7042587YP)

$84.99

$

Usually ships in 2-12 days

0

26

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 17

0

27

Snapper 7026558

PULLEY, Spindle 7" O.D.
(Superseded to 7026558YP)

$34.99

$

Usually ships in 2-12 days

0

28

Snapper 7032028

WASHER, 25/32" Flat
(Superseded to 7032028YP)

$4.99

$

Usually ships in 2-12 days

0

29

Snapper 7074467

NUT, 3/4-16 Hex Jam, Grade 8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 10

0

30

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

31

Snapper 7091601

NUT, 5/16-18 Hex Fl. Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

33

Snapper 7090700

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock, Grade 5
(Superseded to 7091602SM)

$3.99

$

In Stock, Qty 5

0

34

Snapper 7028620

SPACER, 11/32"
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

35

Snapper 7091575

NUT, 5/16-18 Hex Lock
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 19

0

36

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage
(Superseded to 703798)

Note: Was 90004

$4.49

$

Usually ships in 2-12 days

0
