HZ 16480 BVE (82368) - Snapper Yard Cruiser 48" Zero-Turn Mower, 16hp Engine Components Parts Diagram

Yard Cruiser 48" Zero-Turn Mower, 16hp

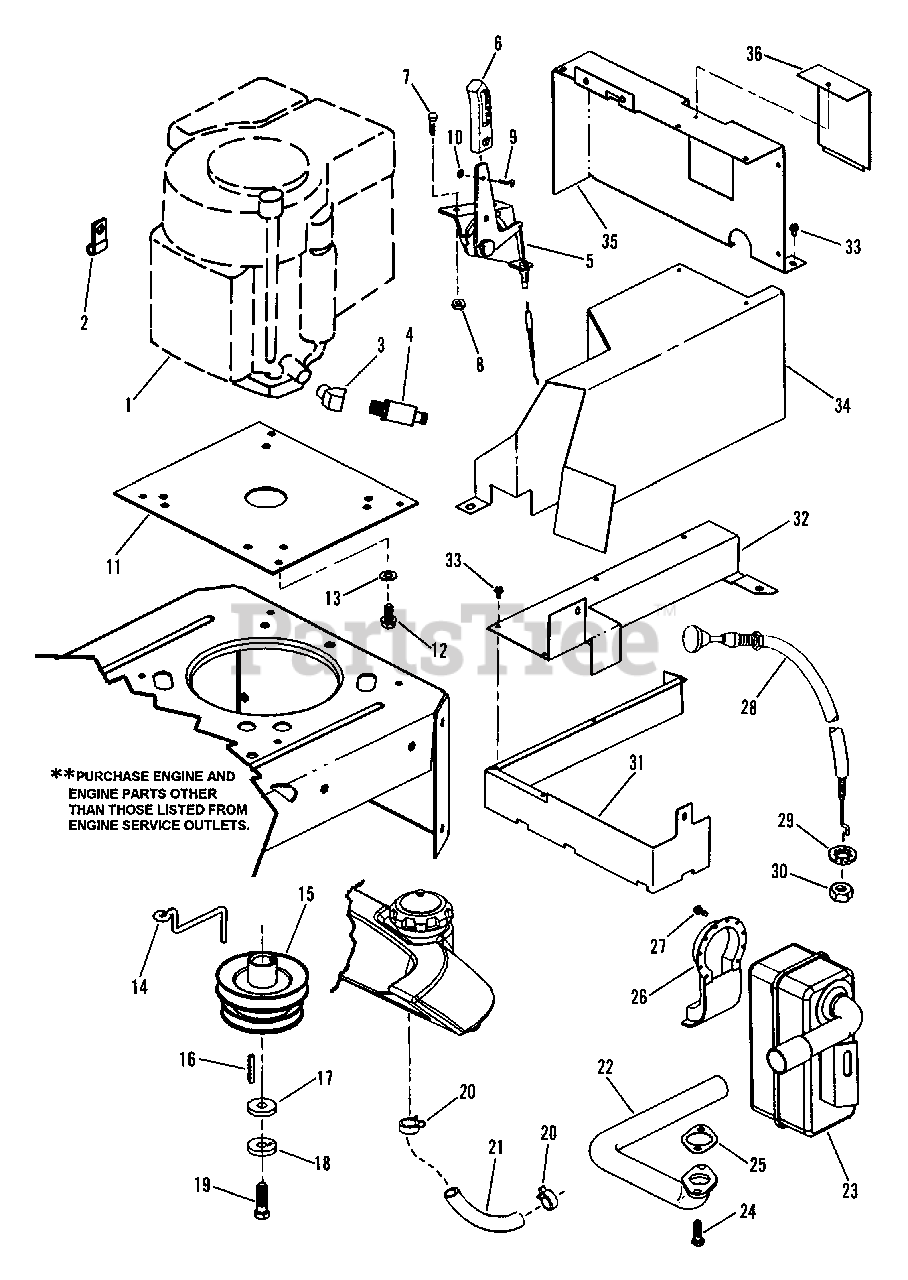

Engine Components Parts Diagram

  • Title

1

* ENGINE, 14 HP Briggs OHVIC (B&S 287707-0122-01)

$

$

Not available

* ENGINE, 15 HP Kohler (Model CV15ST PS 41543)

$

$

Not available

* ENGINE, 16 HP Briggs V-Twin (Model 303777-1154-E1)

$

$

Not available

2

Snapper 7012652

WIRE CLIP, 7/16"
(Superseded to 7012652YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7091848

FITTING, Oil Drain 90° (Briggs 14HP)
(Superseded to 7091848YP)

$14.99

$

Usually ships in 2-12 days

0

Snapper 7091849

FITTING, Oil Drain 90° (Kohler 15HP)

$

$

Not available

4

Snapper 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$24.99

$

In Stock, Qty 9

0

5

Snapper 7036506

CONTROL, Throttle (Kohler 15HP) 52.5"
(Superseded to 7036506YP)

$31.99

$

Usually ships in 2-12 days

0

Snapper 7024642

CONTROL, Throttle (Briggs 14HP) 44.6"
(Superseded to 7024642YP)

$32.99

$

Usually ships in 2-12 days

0

Snapper 7042992

CONTROL, Throttle (Briggs 16HP) 31.0"
(Superseded to 7042992YP)

$31.99

$

In Stock, only 1 left!

0

6

Snapper 7023655

LEVER, Throttle Control
(Superseded to 7023655YP)

$

$

Not available

7

Snapper 7091240

SCREW, #10-32 x 5/8" Hex Washer Head, Grade 5
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

8

Snapper 7090376

NUT, #10-32 Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7091017

SCREW, #8-32 x 3/8" Machine
(Superseded to 7091017YP)

$3.99

$

In Stock, only 4 left!

0

10

Snapper 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 9

0

11

Snapper 7036389

PLATE, Engine

$

$

Not available

12

Snapper 7090324

SCREW,3/8-16 x1" Hex Washer Head (Briggs)
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

Snapper 7077692

SCREW, MB-1.25 x 25mm Hex Washer Self-Tapping (Kohler)
(Superseded to 703989)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7091315

WASHER, 5/16 Split Lock (Kohler)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7035362

GUIDE, Belt
(Superseded to 7035362YP)

$6.49

$

Usually ships in 2-12 days

0

15

Snapper 7029106

PULLEY, Engine (Small Pulley - Down)
(Superseded to 7029106YP)

$102.99

$

Usually ships in 2-12 days

0

16

Snapper 7010210

KEY, 1/4" Square x 2"
(Superseded to 703890)

$4.99

$

In Stock, Qty 7

0

17

Snapper 7016147

SPACER, Clutch
(Superseded to 7091807SM)

$2.99

$

Usually ships in 2-12 days

0

18

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7091763

SCREW, 7/16-20 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 7091763YP)

$3.99

$

In Stock, only 1 left!

0

20

Snapper 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7091856

HOSE, Fuel 1/4" I.D.x 20"

$

$

Not available

22

Snapper 7035894

PIPE, Exhaust (Briggs 14HP)

$53.99

$

In Stock, only 1 left!

0

Snapper 7036417

PIPE, Exhaust (Kohler 15HP)
(Superseded to 7036417YP)

$134.99

$

Usually ships in 2-12 days

0

Snapper 7036483

PIPE, Exhaust (Briggs 16HP)
(Superseded to 7036483YP)

$148.99

$

Usually ships in 2-12 days

0

23

Snapper 7046445

MUFFLER, Low Tone
(Superseded to 7046445YP)

Note: Was 36405

$128.99

$

Usually ships in 2-12 days

0

24

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 5 (Briggs 14HP)
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 9

0

25

Snapper 7015352

GASKET, Exhaust (Briggs 14HP)
(Superseded to 7015352SM)

$5.49

$

In Stock, Qty 8

0

26

Snapper 7041537

DEFLECTOR, Muffler (42" & 48" Decks only)
(Superseded to 7041537YP)

$82.99

$

Usually ships in 2-12 days

0

27

Snapper 7091581

SCREW, #8-18 x 1/2" (42" & 48" Decks only)
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 7024185

CONTROL CABLE, Choke (Briggs 16HP & Kohler 15HP)
(Superseded to 7024185YP)

$31.99

$

In Stock, only 1 left!

0

29

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock (Briggs 16HP & Kohler)
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper 7091630

NUT, 3/8-24 Hex (Briggs 16HP & Kohler 15HP)
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

31

Snapper 7042993

HEAT SHIELD, Sides (Kohler 15HP)

$

$

Not available

32

Snapper 7044658

HEAT SHIELD, Top (Kohler 15HP)
(Superseded to 7044658YP)

$85.99

$

Usually ships in 2-12 days

0

33

Snapper 7090816

SCREW, #10-32 x 3/8" Sheet Metal (Qty.4 Kohler, 8 Briggs)

$

$

Not available

34

Snapper 7042825

DUCT, Right Hand (Briggs 14HP)

$

$

Not available

35

Snapper 7071687

DUCT, Front (Briggs 14HP)
(Superseded to 7071687YP)

$47.99

$

Usually ships in 2-12 days

0

36

Snapper 7071689

COVER, Spark Plug Access (Briggs 14HP)
(Superseded to 7071689YP)

$16.99

$

Usually ships in 2-12 days

0

Snapper 7057709

SHIELD, Muffler Debris
(Superseded to 7063035YP)

Note: (Not Shown)

$76.99

$

Usually ships in 2-12 days

0
