HZ 15420 KVE (82370) - Snapper Yard Cruiser 42" Zero-Turn Mower, 15hp 42" Mower Deck Assembly Parts Diagram

Yard Cruiser 42" Zero-Turn Mower, 15hp

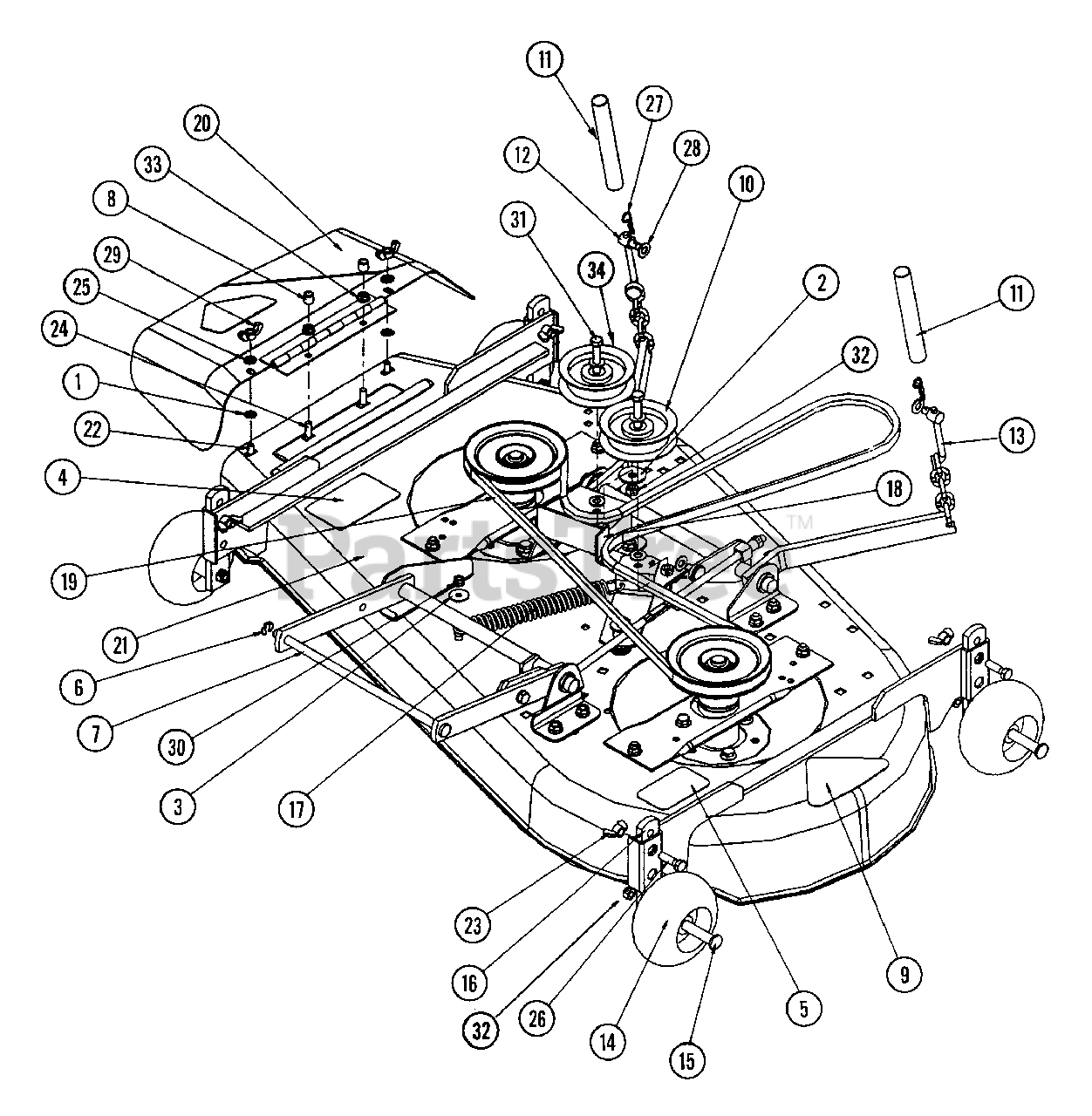

42" Mower Deck Assembly Parts Diagram

  • Title

1

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

2

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

3

Snapper 7014241

WASHER, 1/4" I.D.x 1" O.D.
(Superseded to 7014241YP)

$3.99

$

In Stock, only 1 left!

0

4

Snapper 7014852

DECAL, CAUTION
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

5

Snapper 7014852

DECAL, CAUTION
(Superseded to 7101665YP)

Note: Was 16973

$14.99

$

In Stock, Qty 5

0

6

Snapper 7017847

RING, 7/16" Snap
(Superseded to 7017847YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7022717

ROD, Deck Support
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

8

Snapper 7023606

CAP, Vinyl
(Superseded to 7023606YP)

$3.99

$

In Stock, only 2 left!

0

9

Snapper 7024910

DECAL, 42 Inch

$

$

Not available

10

Snapper 7075707

IDLER, 4" Outside Diameter, Flat
(Superseded to 7075707YP)

Note: Was 27717

$37.99

$

In Stock, only 1 left!

0

11

Snapper 7028021

CHAIN, Cover

$

$

Not available

12

Snapper 7028200

SWIVEL, Adjustable
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

13

Snapper 7028728

ADJUSTER, Chain
(Superseded to 703827)

$10.99

$

In Stock, Qty 12

0

14

Snapper 7029264

WHEEL, Gauge
(Superseded to 7029264YP)

$14.99

$

In Stock, only 2 left!

0

15

Snapper 7029265

BOLT, 3/8-16 x 3-3/8" Gauge Wheel
(Superseded to 7029265SM)

$10.99

$

In Stock, Qty 5

0

16

Snapper 7035835

POST, Anti-Scalp
(Superseded to 7035835SM)

$20.99

$

In Stock, only 2 left!

0

17

Snapper 7035969

SPRING, External
(Superseded to 7035969SM)

$20.99

$

Usually ships in 2-12 days

0

18

Snapper 7036561

GUIDE, 38"/42" Idler Belt

$

$

Not available

19

Snapper 7075235

BELT, 42"
(Superseded to 7075235YP)

Note: Was 36585

$64.99

$

In Stock, only 1 left!

0

20

Snapper 7051401

ASSEMBLY, 41" Chute
(Superseded to 7051401YP)

$159.99

$

Usually ships in 2-12 days

0

?20A

Snapper 7013010

DECAL, CPSC Heavy Adhesive
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 11

0

?20B

Snapper 7014474

HINGE, Side Chute

$

$

Currently unavailable

?20C

Snapper 7035028

CHUTE, Side

$

$

Currently unavailable

21

Snapper 7054343

DECK, 42" Painted

Note: (Includes blades, spindles and brackets)

$

$

Not available

22

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7091049

NUT, 3/8-16 Wing, Nylon Ring
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

24

Snapper 7091303

BOLT, 5/16-18 x1" Short Neck Carriage, Grade 5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

25

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

26

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

27

Snapper 7091503

HAIRPIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7091537

NUT, 5/16-18 Wing Lock
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

30

Snapper 7091545

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

31

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

32

Snapper 7091585

NUT, 3/8-16 Hex Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

33

Snapper 7091601

NUT, 5/16-18 Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

34

Snapper 7018574

PULLEY
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

Snapper 7061958

42" Replacement Deck

Note: Painted deck with decals

$

$

Not available
