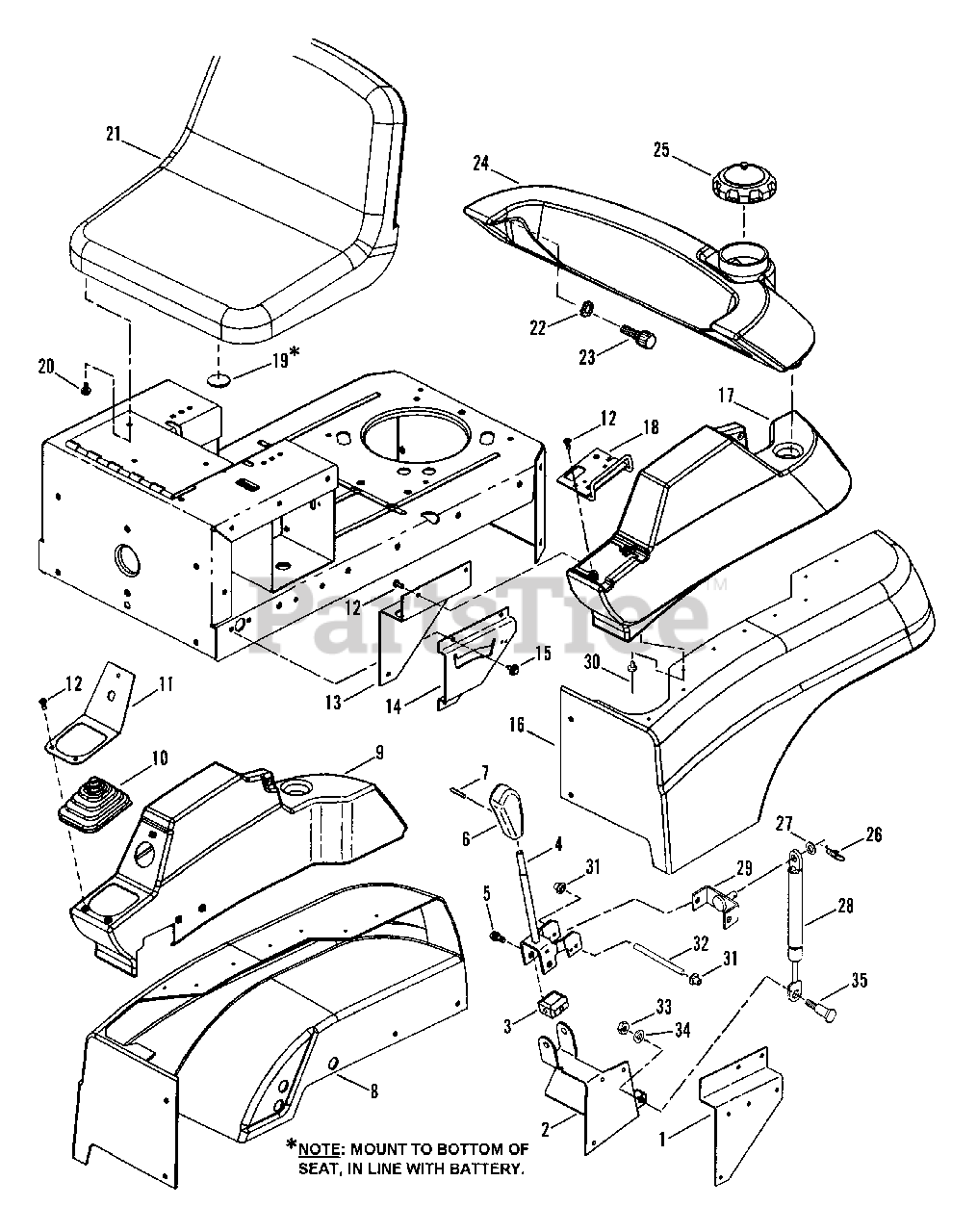

HZ 14380 BVE (82367) - Snapper Yard Cruiser 38" Zero-Turn Mower, 14hp Fuel Tank & Operator's Seat (Fiberglass Bodied Models) Parts Diagram

Yard Cruiser 38" Zero-Turn Mower, 14hp

Fuel Tank & Operator's Seat (Fiberglass Bodied Models) Parts Diagram

  • Title
1

Snapper 7035483

BRACKET, R.H. Tank Support

$

$

Not available

2

Snapper 7042637

BRACKET, Joystick
(Superseded to 7042637YP)

$87.99

$

Usually ships in 2-12 days

0

3

Snapper 7035533

PIVOT, Joystick Control
(Superseded to 7035533YP)

$22.99

$

In Stock, only 2 left!

0

4

Snapper 7042636

HANDLE, Joystick Control

$

$

Not available

5

Snapper 7091800

BOLT, 5/16-18 x 3/4" Shoulder

$

$

Not available

6

Snapper 7023656

LEVER, Shift Handle
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

7

Snapper 7090844

PIN, 3/16 x 3/4" Roll
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7057714

FENDER, R.H. Rear Frame

Note: Was 35355

$

$

Not available

9

Snapper 7035922

FENDER, Upper R.H.

$

$

Not available

10

Snapper 7035936

BOOT, Joystick, Rubber
(Superseded to 7035936YP)

$50.99

$

Usually ships in 2-12 days

0

11

Snapper 7035935

BRACKET, Joystick/Key
(Superseded to 7035935YP)

$23.99

$

Usually ships in 2-12 days

0

12

Snapper 7090999

SCREW, 1/4 x 5/8" Pan Head Self-Tap
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7035481

BRACKET, L.H.Tank Support

$

$

Not available

14

Snapper 7035482

BRACKET, Brake/Clutch Detent
(Superseded to 7035482YP)

$27.99

$

Usually ships in 2-12 days

0

15

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

16

Snapper 7057713

FENDER, L.H. Rear Frame

Note: Was 35356

$

$

Not available

17

Snapper 7072199

FENDER, Upper L.H.

Note: Was 35921

$

$

Not available

18

Snapper 7042644

GUARD, Throttle Control
(Superseded to 7042644YP)

$28.99

$

Usually ships in 2-12 days

0

19

Snapper 7044676

BUMPER, Battery

$

$

Not available

20

Snapper 7091038

SCREW, 5/16-18 x 1/2" Hex Washer Head, Machine
(Superseded to 7091038YP)

$4.49

$

In Stock, Qty 9

0

21

Snapper 7042939

SEAT (All Models)
(Superseded to 7035271YP)

$353.99

$

Usually ships in 2-12 days

0

22

Snapper 7091890

WASHER, 1/4" Internal/External Tooth
(Superseded to 7091890SM)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7035920

THUMBSCREW, 1/4-20 x 1-1/2"
(Superseded to 7035920YP)

$7.49

$

Usually ships in 2-12 days

0

24

Snapper 7035478

ASSEMBLY, Fuel Tank

Note: (Includes item 25)

$

$

Currently unavailable

25

Snapper 7044711

CAP, Fuel Tank (w/Gage & Screw Vent)
(Superseded to 7044711YP)

$59.99

$

In Stock, only 1 left!

0

26

Snapper 7091593

COTTER-PIN, 3/8 Self-Locking
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

27

Snapper 7090188

WASHER, 11/32 x 11/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

28

Snapper 7044717

CYLINDER, Joystick Control
(Superseded to 7044717YP)

$170.99

$

Usually ships in 2-12 days

0

29

Snapper 7044763

BRACKET, Joystick Control
(Superseded to 7044763YP)

$29.99

$

Usually ships in 2-12 days

0

30

Snapper 7091820

RIVET, 3/16" x 1" ,Dome Head, Aluminum

$

$

Not available

31

Snapper 7091020

PUSH-NUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 7044702

PIN, Joystick
(Superseded to 7044702YP)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7091511

NUT, 5/16-18 Hex, Grade 5
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7091315

WASHER, 21/64 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

35

Snapper 7014664

BOLT, 5/16-18 x 1-1/8" Shoulder
(Superseded to 7014664SM)

Note: Was 16562

$1.99

$

Usually ships in 2-12 days

0
