HydroWalk SD (HW48B) - Ferris HydroWalk SD Series 48" Walk-Behind Mower, Briggs & Stratton 48" Mower Deck - Complete Parts Diagram

HydroWalk SD Series 48" Walk-Behind Mower, Briggs & Stratton

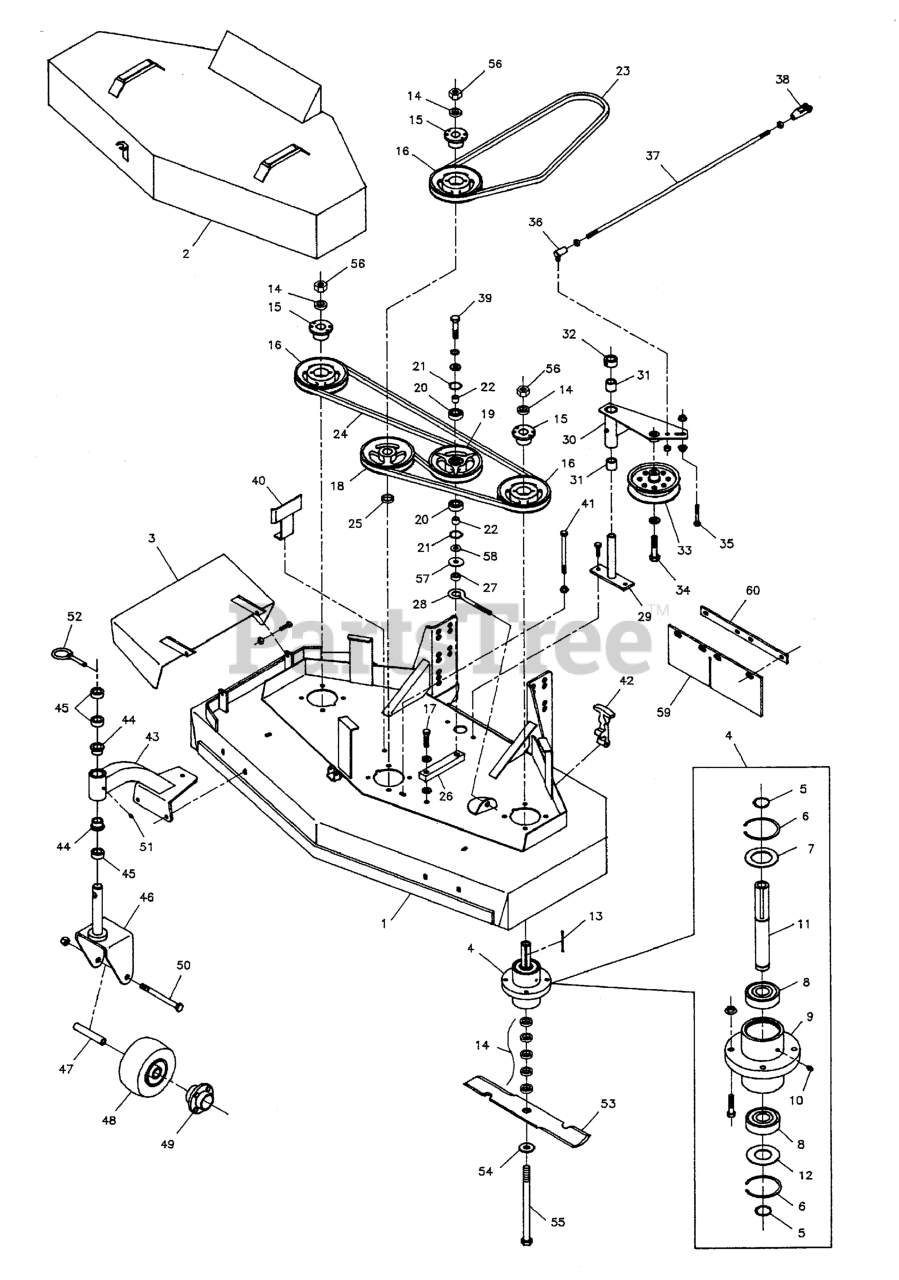

48" Mower Deck - Complete Parts Diagram

  • Title

1

Ferris 6630841

48" MOWER HOUSING ASSEMBLY

Note: (Includes safety decals)

$

$

Currently unavailable

1

Ferris 30580

48" REAR DISCHARGE MOWER HOUSING

$

$

Currently unavailable

2

Ferris 5030511

48" DECK GUARD

$

$

Currently unavailable

2

Ferris 5045375B

48" Guard

Note: (S/N: 3289 & above)

$

$

Currently unavailable

3

Ferris 5041668B

CHUTE, DISCHARGE WELDMENT

$131.99

$

Usually ships in 2-12 days

0

4

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

5

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

7

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

8

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

9

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

10

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

11

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

12

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

13

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

14

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

Usually ships in 2-12 days

0

15

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 4 left!

0

16

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

17

Ferris 5025016X14

BOLT, 7/16-20 X 1-3/4" GD.5
(Superseded to 5025016X14YP)

$5.99

$

Usually ships in 2-12 days

0

18

Ferris 5041478

SPINDLE PULLEY

$106.99

$

Usually ships in 2-12 days

0

19

Ferris 5030819

IDLER PULLEY, Complete

$148.99

$

Usually ships in 2-12 days

0

19

Ferris 5041481

PULLEY, Idler
(Superseded to 5041481FS)

$98.99

$

Usually ships in 2-12 days

0

20

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

21

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

In Stock, only 1 left!

0

22

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0

23

Ferris 5021261

Belt, 48" Deck Drive

$40.99

$

In Stock, only 1 left!

0

24

Ferris 5020873

BELT, Blade Spindle

$87.99

$

Usually ships in 2-12 days

0

25

Ferris 5041484

SPACER, 1.00 X 1.25 X .25
(Superseded to 5041484FS)

$8.99

$

Usually ships in 2-12 days

0

26

Ferris 5044610B

ARM, Idler

$41.99

$

Usually ships in 2-12 days

0

26

Ferris 5041622

IDLER ARM

Note: (S/N: 1617 & below)

$

$

Not available

27

Ferris 5044609

SPACER, .52 X 1.00 X .38
(Superseded to 5044609SM)

Note: (S/N: 1618 & above)

$6.49

$

Usually ships in 2-12 days

0

28

Ferris 5021812

EYEBOLT, 3/8" X 6"
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

28

Ferris 5041729

J-BOLT

Note: (S/N: 1618 & above)

$

$

Currently unavailable

29

Ferris 5042560B

BLADE ENGAGE PIVOT

$26.99

$

Usually ships in 2-12 days

0

30

Ferris 5042656B

Blade Engagement Shaft

$

$

Currently unavailable

31

Ferris 5020875B

BUSHING, Brass
(Superseded to 5020875BFS)

$3.99

$

Usually ships in 2-12 days

0

32

Ferris 5010116

COLLAR, 3/4" Set
(Superseded to 5010116FS)

$5.49

$

Usually ships in 2-12 days

0

33

Ferris 5021097

PULLEY, V-Idler
(Superseded to 5021097SM)

$40.99

$

In Stock, only 1 left!

0

34

Ferris 5025018X16

BOLT, 1/2-20 x 2

$2.49

$

Usually ships in 2-12 days

0

35

Ferris 5025011X18

BOLT, 5/16-18 x 2-1/4
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

36

Ferris 5020805

BALL JOINT, 3/8" Female Studded
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0

37

Ferris 5042659

Blade Engagement Rod

$

$

Currently unavailable

38

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

39

Ferris 5025018X18

BOLT, 1/2-20 X 2-1/4 GD5 CZ
(Superseded to 5025018X18SM)

$3.99

$

Usually ships in 2-12 days

0

39

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

Note: (S/N: 1617 & below)

$2.99

$

Usually ships in 2-12 days

0

40

Ferris 5042657B

Belt Guide

$15.99

$

Usually ships in 2-12 days

0

41

Ferris 5025013X40

BOLT, 3/8-16 x 5
(Superseded to 5025013X40SM)

$4.49

$

Usually ships in 2-12 days

0

42

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

Usually ships in 2-12 days

0

43

Ferris 5043887

CASTER MOUNT, Complete
(Superseded to 5043887FS)

$251.99

$

Usually ships in 2-12 days

0

44

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

45

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

46

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

47

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

Usually ships in 2-12 days

0

48

Ferris 5021181

WHEEL & TIRE ASSEMBLY, White, 9 x 3.5 x 4, Complete
(Superseded to 5021181SSM)

$100.99

$

In Stock, only 4 left!

0

49

Ferris 5021181X3

4 BOLT HUB W/ BEARING

$

$

Not available

49

Ferris 5021262

NLA - Hub Complete (Stamped T)

$

$

Currently unavailable

50

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 3 left!

0

51

Ferris 5021728

GREASE FITTING
(Superseded to 5021728FS)

$2.99

$

Usually ships in 2-12 days

0

51

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

52

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

53

Ferris 5020843

MOWER BLADE, 16-1/4"
(Superseded to 5020843ASM)

$24.99

$

In Stock, Qty 20+

0

54

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

55

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

56

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

57

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

Note: (S/N: 1618 & above)

$3.99

$

In Stock, only 2 left!

0

58

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (S/N: 1618 & above)

$3.99

$

In Stock, Qty 12

0

59

Ferris 5042858

Rubber Flap

$33.99

$

Usually ships in 2-12 days

0

60

Ferris 42859

Rubber Flap Strap

$

$

Currently unavailable
