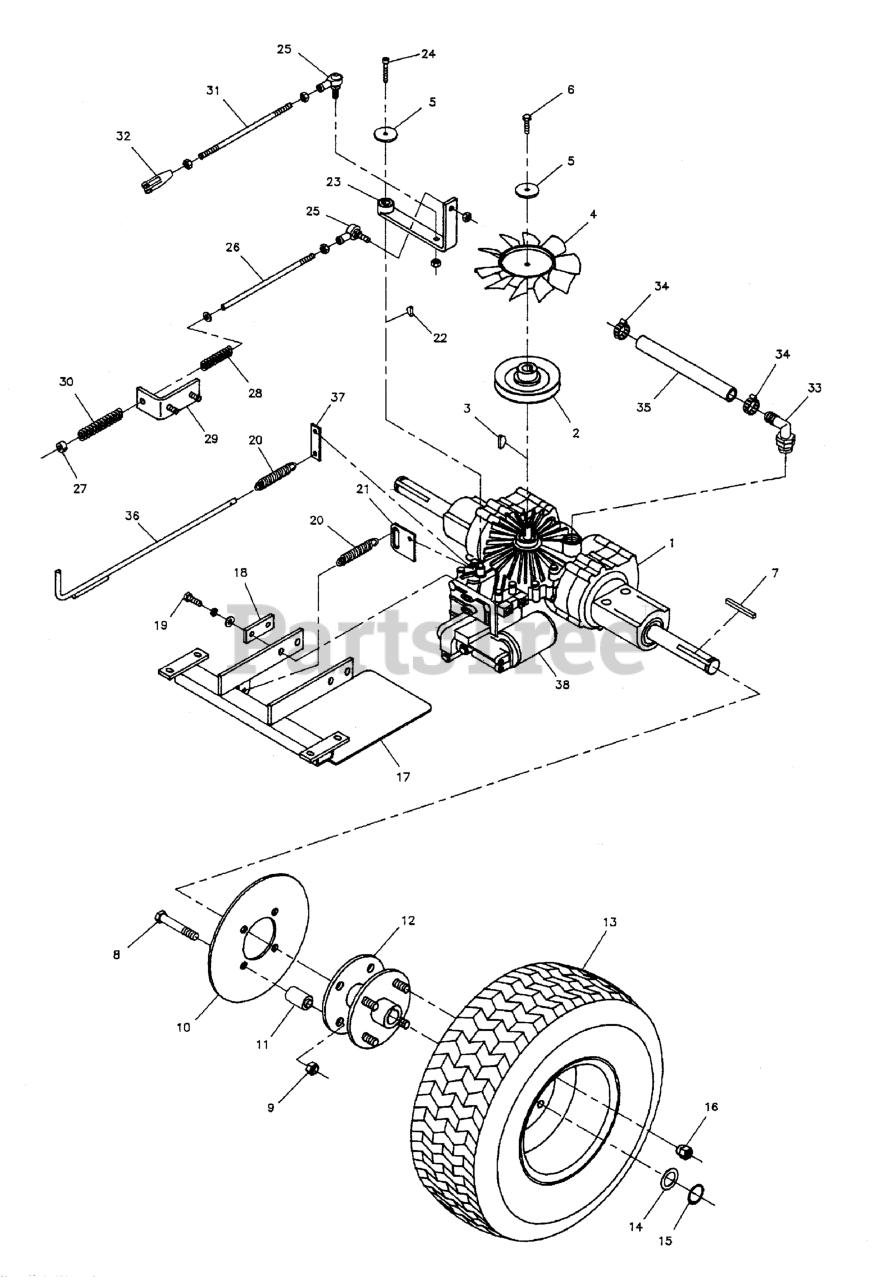

HydroWalk SD (HW36K) - Ferris HydroWalk SD Series 36" Walk-Behind Mower, Kohler Transaxle & Drive Group Parts Diagram

HydroWalk SD Series 36" Walk-Behind Mower, Kohler

Transaxle & Drive Group Parts Diagram

  • Title

1

Ferris 5021469

TRANSAXLE (model 751)

$

$

Not available

2

Ferris 5021476

TRANSMISSION INPUT PULLEY

$

$

Not available

3

Ferris 5021084

KEY, #61 Woodruff

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5023200

FAN

$15.99

$

Usually ships in 2-12 days

0

5

Ferris 5044577

WASHER, .265 x 1.50 x .109
(Superseded to 5044577SM)

$3.99

$

In Stock, only 1 left!

0

6

Ferris 5025198X6

BOLT, Loctite Patch, 1/4-20 x 3/4

$2.99

$

Usually ships in 2-12 days

0

7

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

8

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

9

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

10

Ferris 5042526

BRAKE DISC

$

$

Not available

11

Ferris 5042618

BRAKE DISC SPACER

$

$

Currently unavailable

12

Ferris 5042590

DRIVE HUB

$

$

Not available

13

Ferris 5021207

WHEEL & TIRE ASSEMBLY, 18 x 7.50 x 8

$219.99

$

Usually ships in 2-12 days

0

13

Ferris 5020604

TIRE ASSM, 16 x 6.50 x 8

Note: (HW32 & HW48T)

$

$

Currently unavailable

14

Ferris 5020928

SHIM

$6.99

$

Usually ships in 2-12 days

0

15

Ferris 5021210

RING, Retaining

$2.49

$

Usually ships in 2-12 days

0

16

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

17

Ferris 5042494B

Transmission Brace

$

$

Currently unavailable

17

Ferris 5044734B

TRANSMISSION BRACE

Note: (36" model, S/N: 2266 & above / 48" model, S/N: 2024 & above)

$

$

Currently unavailable

18

Ferris 5042646

BRACE, Hydro Spacer

$13.99

$

Usually ships in 2-12 days

0

19

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

20

Ferris 5020639

SPRING, Extension
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

21

Ferris 5043671B

DUMP VALVE LEVER

$6.49

$

Usually ships in 2-12 days

0

22

Ferris 5020149

KEY, #3 Woodruff

$2.49

$

Usually ships in 2-12 days

0

23

Ferris 5042537B

CONTROL ARM

$

$

Currently unavailable

24

Ferris 5025269

BOLT, Allen Head, 1/4-20 x 1-1/2

$2.99

$

Usually ships in 2-12 days

0

25

Ferris 5104495

BALL JOINT 5/16-24 LH FEMALE W/STUD, BR
(Superseded to 5104495YP)

$22.99

$

Usually ships in 2-12 days

0

26

Ferris 5042551

ROD, Neutral

$

$

Currently unavailable

27

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

28

Ferris 5021004

SPRING, Compression

$5.99

$

Usually ships in 2-12 days

0

29

Ferris 5042550B

NEUTRAL BRACKET

$

$

Currently unavailable

30

Ferris 5020637

SPRING, Compression
(Superseded to 5020637YP)

$5.99

$

Usually ships in 2-12 days

0

31

Ferris 5042924

ROD, Control

$

$

Currently unavailable

32

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

33

Ferris 5021469X1

90 Degree Fitting

$

$

Not available

34

Ferris 5021164

CLAMP, #10 Hose
(Superseded to 5021164SM)

$3.99

$

In Stock, only 1 left!

0

35

Ferris 5050933X8P25

Hose, 8-1/4"

$

$

Currently unavailable

36

Ferris 5042638B

DUMP VALVE ROD

Note: (36" S/N: 2115 & below / 48" S/N: 1732 & below / 36" S/N: 2266 & above / 48" S/N: 2024 & above)

$23.99

$

Usually ships in 2-12 days

0

37

Ferris 5042636

DUMP VALVE EXTENSION

Note: (36" S/N: 2115 & below / 48" S/N: 1732 & below / 36" S/N: 2266 & above / 48" S/N: 2024 & above)

$15.99

$

Usually ships in 2-12 days

0

38

Ferris 5021068X1

FILTER, Transmission Oil

Note: (S/N: 1580 & below)

$47.99

$

Usually ships in 2-12 days

0
