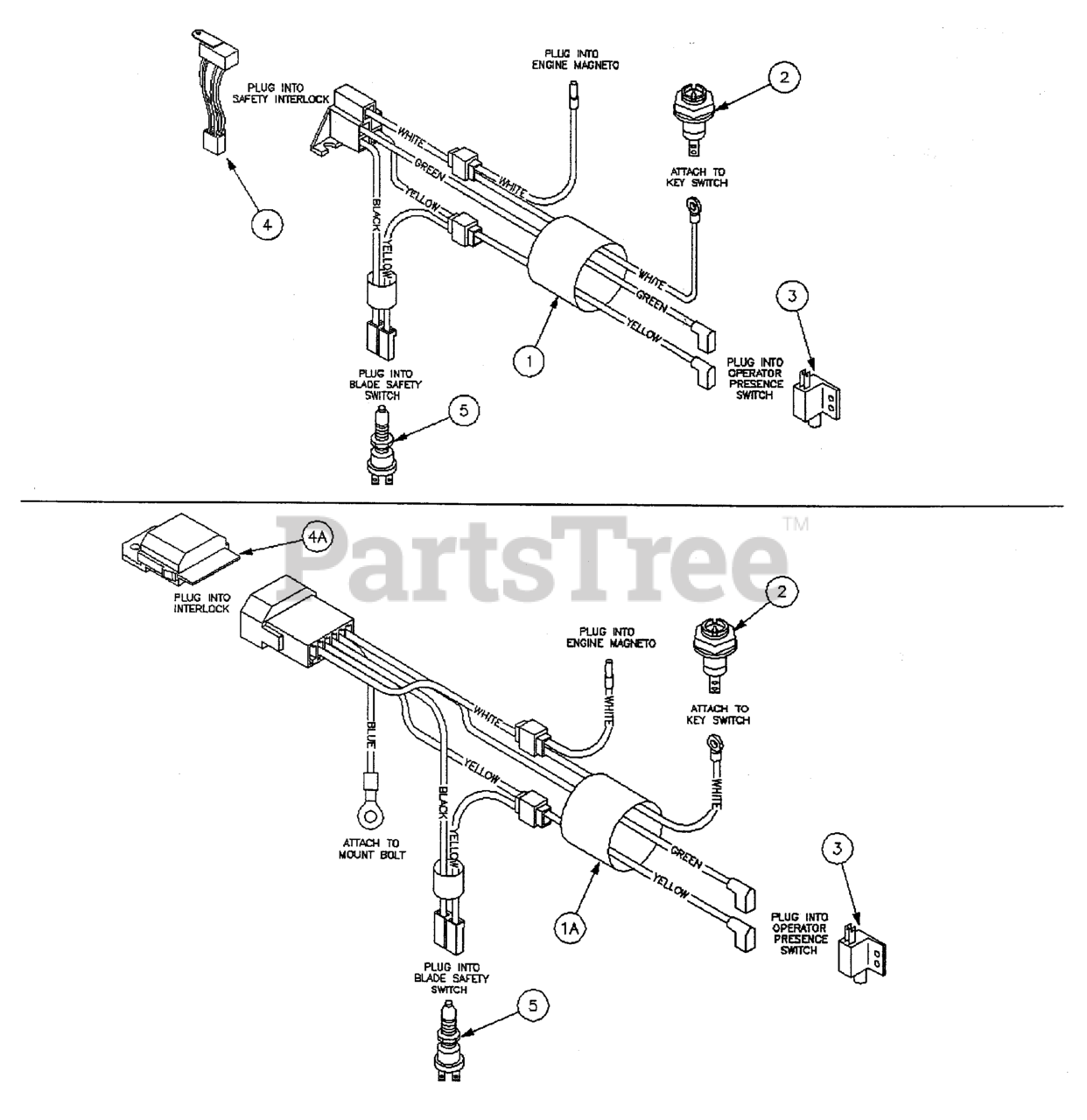

HydroWalk SD (HW36K) - Ferris HydroWalk SD Series 36" Walk-Behind Mower, Kohler Electrical Group - With Operator Presence Parts Diagram

HydroWalk SD Series 36" Walk-Behind Mower, Kohler

Electrical Group - With Operator Presence Parts Diagram

  • Title

1

Ferris 5030747

Main Harness

$193.99

$

Usually ships in 2-12 days

0

1A

Ferris 5031076

HW Kawasaki Wire Harness

$

$

Currently unavailable

1A

Ferris 5031077

HW Kohler Wire Harness

Note: (Not Shown)

$205.99

$

Usually ships in 2-12 days

0

2

Ferris 5021275

SWITCH, Ignition

$49.99

$

Usually ships in 2-12 days

0

3

Ferris 5021451

SWITCH, Plunger, NO
(Superseded to 5021451SM)

$11.99

$

In Stock, Qty 13

0

4

Ferris 5021452

Saftey Interlock

Note: (Use with #30747 only)

$68.99

$

Usually ships in 2-12 days

0

4

Ferris 5043430

Interlock

Note: (Kohler, use w/ #30747)

$128.99

$

Usually ships in 2-12 days

0

4A

Ferris 5021833

Interlock
(Superseded to 5021833FS)

Note: (Used with #31076 & #31077)

$65.99

$

Usually ships in 2-12 days

0

5

Ferris 5021522

SWITCH, Plunger, NO
(Superseded to 5021522YP)

$32.99

$

In Stock, only 1 left!

0
