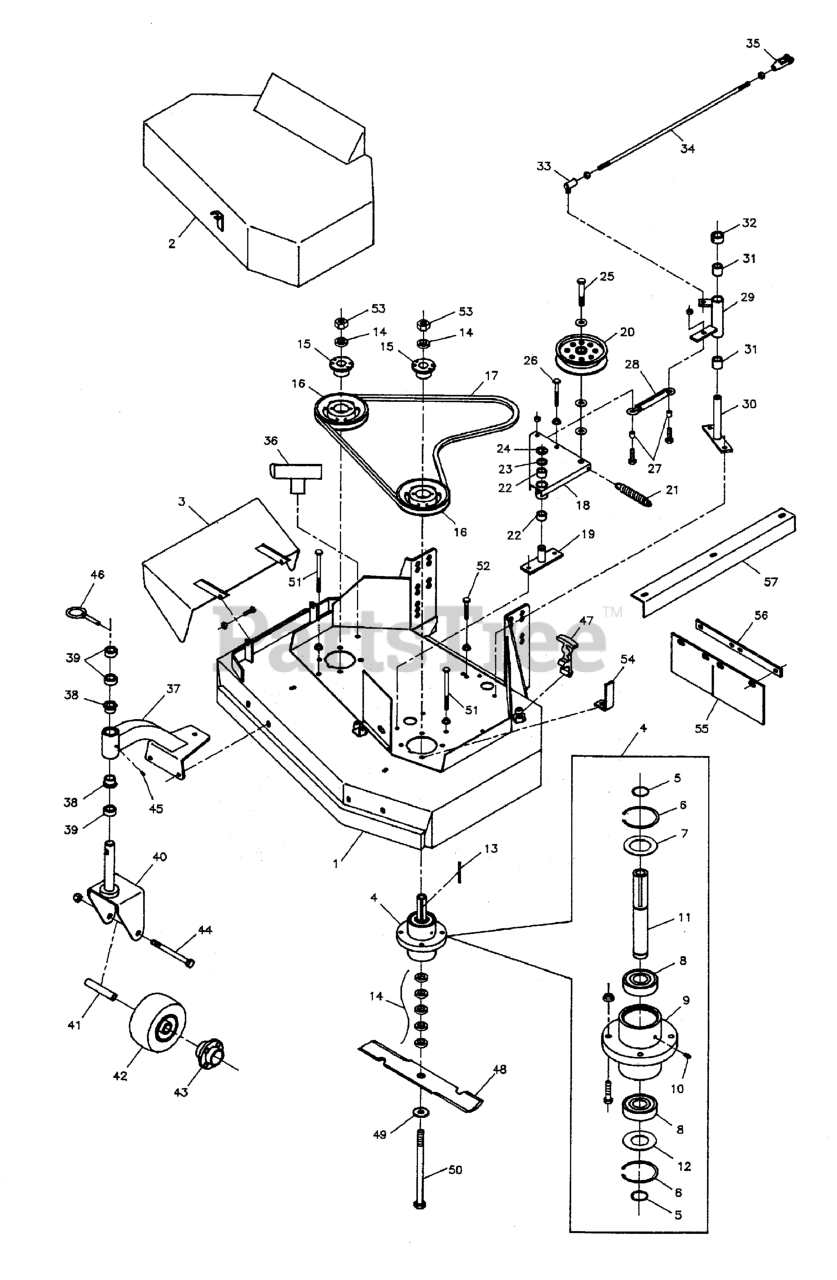

HydroWalk SD (HW36K) - Ferris HydroWalk SD Series 36" Walk-Behind Mower, Kohler 32" & 36" Mower Deck - Complete Parts Diagram

HydroWalk SD Series 36" Walk-Behind Mower, Kohler

32" & 36" Mower Deck - Complete Parts Diagram

  • Title

1

NLA - DECK SHELL W/DECALS, 36"", HW

Note: (Includes safety decals)

$

$

Not available

1

Ferris 6630601

32" MOWER HOUSING ASSEMBLY

Note: (Includes safety decals)

$

$

Currently unavailable

1

Ferris 5600252

DECK SHELL W/DECALS, 36" HW36 RD

$1196.99

$

Usually ships in 2-12 days

0

1

Ferris 5600250

DECK SHELL W/ DECALS, 32" HW32 RD

$1054.99

$

Usually ships in 2-12 days

0

2

Ferris 5042577B

36" Guard

$

$

Currently unavailable

2

Ferris 5045373B

GUARD, 36"

Note: (S/N: 3289 & above)

$

$

Currently unavailable

2

Ferris 5030575B

32" DECK GUARD

$

$

Currently unavailable

3

Ferris 5042565B

DISCHARGE CHUTE

$131.99

$

Usually ships in 2-12 days

0

4

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

5

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

7

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

8

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

9

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

10

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

11

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

12

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

13

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

14

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

Usually ships in 2-12 days

0

15

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 4 left!

0

16

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

17

Ferris 5021251

BELT, #7-3030
(Superseded to 5021251SM)

$40.99

$

Usually ships in 2-12 days

0

17

Ferris 5021390

BELT

Note: (32" Deck)

$36.99

$

Usually ships in 2-12 days

0

18

Ferris 5042563B

CLUTCH PIVOT PLATE

$

$

Currently unavailable

19

Ferris 5041629B

IDLER MOUNT

$26.99

$

Usually ships in 2-12 days

0

20

Ferris 5021096

PULLEY, Backside Idler
(Superseded to 5021096SM)

$109.99

$

Usually ships in 2-12 days

0

20

Ferris 5021369

IDLER PULLEY
(Superseded to 5021369SM)

Note: (32" Deck)

$73.99

$

Usually ships in 2-12 days

0

21

Ferris 5020639

SPRING, Extension
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

22

Ferris 5020874

BUSHING
(Superseded to 5020874FS)

$9.49

$

Usually ships in 2-12 days

0

23

Ferris 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

24

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

26

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

27

Ferris 5041600

SLEEVE
(Superseded to 5041600FS)

$5.99

$

Usually ships in 2-12 days

0

28

Ferris 5041852

TURNBUCKLE ASSY

$40.99

$

Usually ships in 2-12 days

0

29

Ferris 5042569B

BLADE ENGAGE BELL CRANK

$112.99

$

Usually ships in 2-12 days

0

30

Ferris 5042560B

BLADE ENGAGE PIVOT

$26.99

$

Usually ships in 2-12 days

0

31

Ferris 5023344

BUSHING, .75 X 1.00 X 1.00, PLASTIC
(Superseded to 5023344SM)

Note: (was 5020875P)

$9.49

$

Usually ships in 2-12 days

0

32

Ferris 5010116

COLLAR, 3/4" Set
(Superseded to 5010116FS)

$5.49

$

Usually ships in 2-12 days

0

33

Ferris 5020805

BALL JOINT, 3/8" Female Studded
(Superseded to 5020805FS)

$17.99

$

Usually ships in 2-12 days

0

34

Ferris 5042553

ROD, Blade Engage

$

$

Currently unavailable

35

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

36

Ferris 5042528B

BELT GUIDE

$13.99

$

Usually ships in 2-12 days

0

37

Ferris 5043887

CASTER MOUNT, Complete
(Superseded to 5043887FS)

$251.99

$

Usually ships in 2-12 days

0

38

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

39

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

40

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

41

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

Usually ships in 2-12 days

0

42

Ferris 5021181

WHEEL & TIRE ASSEMBLY, White, 9 x 3.5 x 4, Complete
(Superseded to 5021181SSM)

$100.99

$

In Stock, only 4 left!

0

43

Ferris 5021181X3

4 BOLT HUB W/ BEARING

$

$

Not available

43

Ferris 5021262

NLA - Hub Complete (Stamped T)

$

$

Currently unavailable

44

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 3 left!

0

45

Ferris 5021728

GREASE FITTING
(Superseded to 5021728FS)

$2.99

$

Usually ships in 2-12 days

0

45

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

46

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

47

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

Usually ships in 2-12 days

0

48

Ferris 5021227

MOWER BLADE, 18"
(Superseded to 5021227ASM)

$25.99

$

In Stock, only 1 left!

0

48

Ferris 5020843

MOWER BLADE, 16-1/4"
(Superseded to 5020843ASM)

$24.99

$

In Stock, Qty 20+

0

49

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

50

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

51

Ferris 5025013X40

BOLT, 3/8-16 x 5
(Superseded to 5025013X40SM)

$4.49

$

Usually ships in 2-12 days

0

52

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

53

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

54

Ferris 5042969B

BELT GUIDE

Note: (32" model only)

$

$

Currently unavailable

55

Ferris 5042974

RUBBER FLAP

$

$

Currently unavailable

56

Ferris 5042736B

Flap Support

$

$

Currently unavailable

57

Ferris 5042734B

Rear Discharge Baffle 36"

$142.99

$

Usually ships in 2-12 days

0

57

Ferris 5043614B

BAFFLE, 32"

$

$

Currently unavailable
