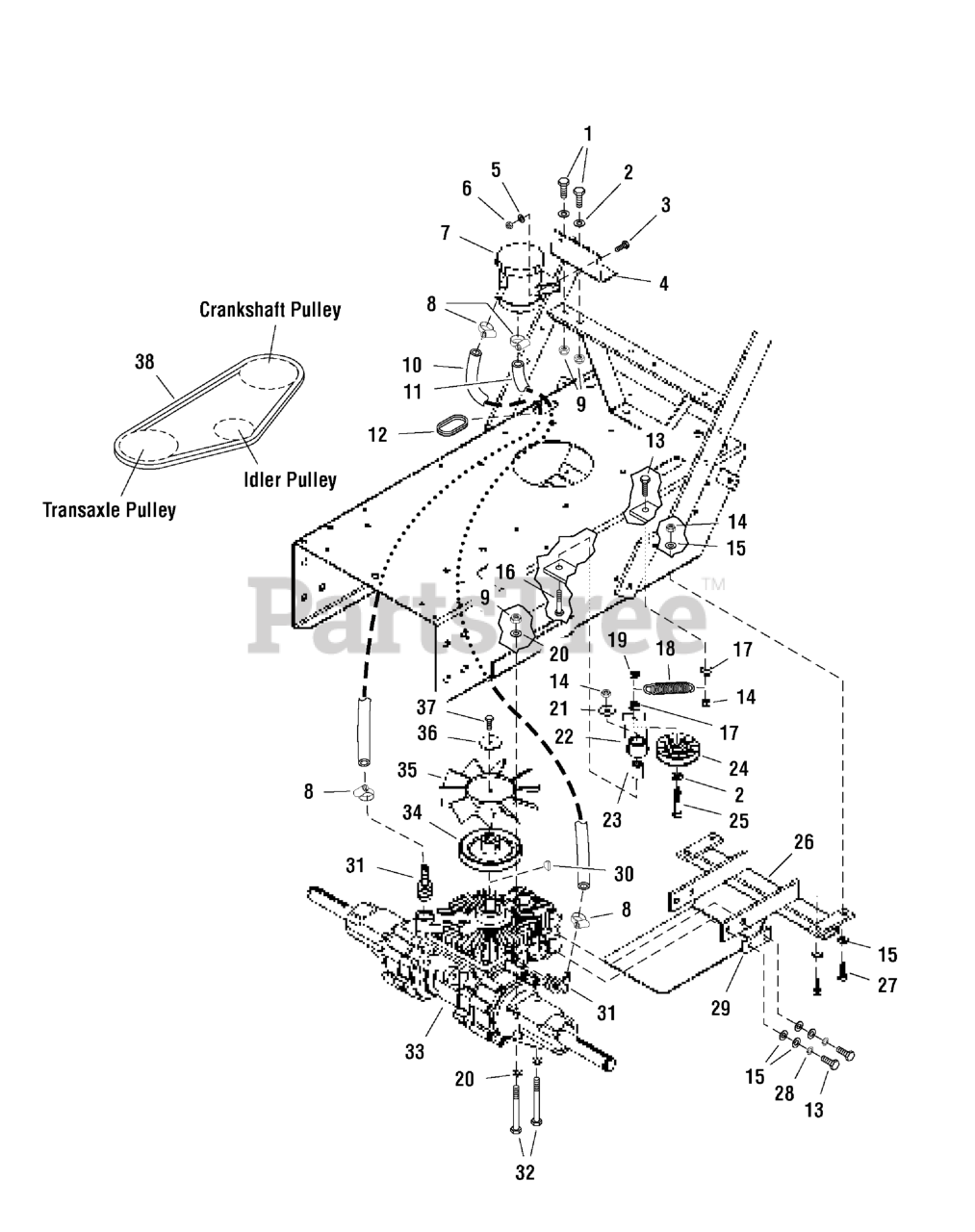

HydroWalk SD Series 36" Walk-Behind Mower, 15hp Kawasaki

Transaxle Drive Group Parts Diagram

  • Title

1

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

2

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

4

Ferris 5049390B

BRACKET, Reservoir Mount

$

$

Currently unavailable

5

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

7

Ferris 5021491

RESERVOIR, Hydraulic

$52.99

$

Usually ships in 2-12 days

0

8

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

9

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

10

Ferris 5050860X26

HOSE, 3/8 PUSH-LOCK, 26.00
(Superseded to 5050860X26FS)

$22.99

$

Usually ships in 2-12 days

0

11

Ferris 5050860X31

HOSE, 3/8" PUSH-LOCK, 31"

$

$

Currently unavailable

12

Ferris 5021397

GROMMET, 1-1/4"
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

13

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

18

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, Qty 11

0

19

Ferris 5025100

NUT, 3/8-16 Hex Side Lock
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

20

Ferris 5025293

WASHER, 3/8" GD9
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

21

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

22

Ferris 5042531B

IDLER ARM ASSEMBLY

$39.99

$

Usually ships in 2-12 days

0

22

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

23

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

24

Ferris 5043627

IDLER PULLEY
(Superseded to 5043627SM)

$45.99

$

In Stock, only 1 left!

0

25

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

26

Ferris 5044734B

TRANSMISSION BRACE

$

$

Currently unavailable

27

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

28

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5042646

BRACE, Hydro Spacer

$13.99

$

Usually ships in 2-12 days

0

30

Ferris 5021084

KEY, #61 Woodruff

$3.99

$

Usually ships in 2-12 days

0

31

Ferris 5021423X1

FITTING, 90 Degree

$

$

Currently unavailable

32

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

33

Ferris 5021469

TRANSAXLE (model 751)

$

$

Not available

34

Ferris 5021476

TRANSMISSION INPUT PULLEY

$

$

Not available

35

Ferris 5023200

FAN

$15.99

$

Usually ships in 2-12 days

0

36

Ferris 5044577

WASHER, .265 x 1.50 x .109
(Superseded to 5044577SM)

$3.99

$

In Stock, only 1 left!

0

37

Ferris 5025198X6

BOLT, Loctite Patch, 1/4-20 x 3/4

$2.99

$

Usually ships in 2-12 days

0

38

Ferris 5021230

Belt, Transmission Drive
(Superseded to 5021230SM)

$24.99

$

In Stock, only 2 left!

0
