HydroWalk SD (5901041) - Ferris HydroWalk SD Series 36" Walk-Behind Mower, 15hp Kawasaki Parking Brake Group Parts Diagram

HydroWalk SD Series 36" Walk-Behind Mower, 15hp Kawasaki

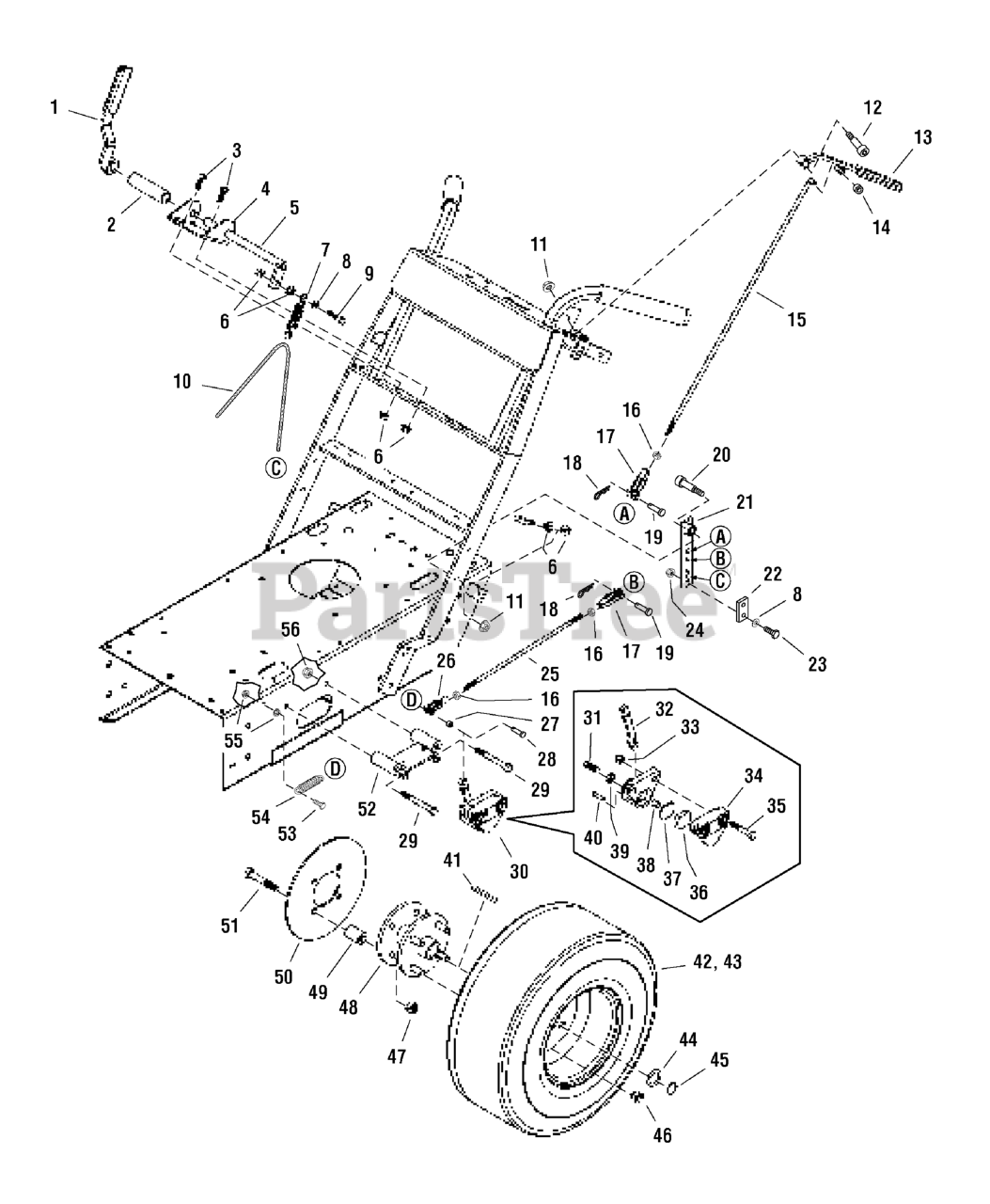

Parking Brake Group Parts Diagram

  • Title

1

Ferris 5044625B

PARKING BRAKE HANDLE

$58.99

$

Usually ships in 2-12 days

0

1

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

2

Ferris 5045477B

COVER, Brake Rod

$

$

Currently unavailable

3

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

4

Ferris 5042627B

PARKING BRAKE MOUNT

$

$

Currently unavailable

5

Ferris 5042633B

PARKING BRAKE SHAFT

$37.99

$

Usually ships in 2-12 days

0

6

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

7

Ferris 5021242

SPRING, Extension
(Superseded to 5021242SM)

$22.99

$

Usually ships in 2-12 days

0

8

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Ferris 5025011X12

BOLT, 5/16-18 x 1-1/2
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5050823X3

WIRE CABLE, 31-1/2

$

$

Currently unavailable

11

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

12

Ferris 5025220

SHOULDER BOLT, 1/2 x 1-1/2
(Superseded to 5025220SM)

$11.99

$

Usually ships in 2-12 days

0

13

Ferris 5041982B

BRAKE HANDLE

$

$

Currently unavailable

13

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

14

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

15

Ferris 5042547

ROD, Brake Linkage

$

$

Currently unavailable

16

Ferris 5025033

NUT, 5/16-24 Hex
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

18

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

19

Ferris 5025213X8

CLEVIS PIN, 5/16 x 1
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

20

Ferris 5025223

SHOULDER BOLT, 1/2 x 1
(Superseded to 5025223SM)

$7.99

$

Usually ships in 2-12 days

0

21

Ferris 5042548B

BRAKE PIVOT

$

$

Currently unavailable

22

Ferris 5042624

CABLE CLAMP

$

$

Currently unavailable

23

Ferris 5025011X10

BOLT, 5/16-18 x 1-1/4
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5042555

ROD, Linkage
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

26

Ferris 5020980

CLEVIS, 5/16-24, Steel
(Superseded to 5020980FS)

$23.99

$

Usually ships in 2-12 days

0

27

Ferris 5021878

SPACER, .25 X .37 X .25
(Superseded to 5021878YP)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

29

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

30

Ferris 5020968

BRAKE CALIPER ASSEMBLY, LH, Complete

Note: (Includes Ref No. 31 - 40)

$222.99

$

Usually ships in 2-12 days

0

30

Ferris 5020969

BRAKE CALIPER ASSEMBLY, RH, Complete

Note: (Includes Ref No. 31 - 40, Not Shown)

$242.99

$

Usually ships in 2-12 days

0

31

Ferris 5021473

ADJUSTER BOLT

$14.99

$

Usually ships in 2-12 days

0

32

Ferris 5021038

LEVER

$79.99

$

Usually ships in 2-12 days

0

33

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

34

Ferris 5021088

ANVIL

$54.99

$

Usually ships in 2-12 days

0

35

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

36

Ferris 5021010

BRAKE PAD

$21.99

$

Usually ships in 2-12 days

0

37

Ferris 5021335

BACK PLATE

$8.99

$

Usually ships in 2-12 days

0

38

Ferris 5021470

ACTUATOR PIN

$8.99

$

Usually ships in 2-12 days

0

39

Ferris 5021472

JAM NUT

$5.49

$

Usually ships in 2-12 days

0

40

Ferris 5021471

GROOVE PIN

$5.99

$

Usually ships in 2-12 days

0

41

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

42

Ferris 5021207S

WHEEL & TIRE ASSEMBLY, 18 x 7.50 x 8, Silver

$216.99

$

Usually ships in 2-12 days

0

42

Ferris 5021345

WHEEL, 6 x 8

$62.99

$

Usually ships in 2-12 days

0

42

Ferris 5021215

TIRE, Rear, 18 x 7.5 x 8

$246.99

$

Usually ships in 2-12 days

0

43

Ferris 5020604S

TIRE ASSM, 16 x 6.50 x 8, Silver

Note: (CE models only)

$

$

Currently unavailable

43

Ferris 5020616

Rim Only

$

$

Currently unavailable

43

Ferris 5020615

TUBE

$

$

Currently unavailable

43

Ferris 5020702

TIRE, 16 x 6.5 x 8

$

$

Currently unavailable

44

Ferris 5020928

SHIM

$6.99

$

Usually ships in 2-12 days

0

45

Ferris 5021210

RING, Retaining

$2.49

$

Usually ships in 2-12 days

0

46

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

47

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

48

Ferris 5042590

DRIVE HUB

$

$

Not available

49

Ferris 5042618

BRAKE DISC SPACER

$

$

Currently unavailable

50

Ferris 5042526

BRAKE DISC

$

$

Not available

51

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

52

Ferris 5042595B

BRAKE CALIPER MOUNT

$59.99

$

Usually ships in 2-12 days

0

53

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

54

Ferris 5020639

SPRING, Extension
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

55

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

56

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0
