HydroWalk SD (5901041) - Ferris HydroWalk SD Series 36" Walk-Behind Mower, 15hp Kawasaki 32" & 36" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

HydroWalk SD Series 36" Walk-Behind Mower, 15hp Kawasaki

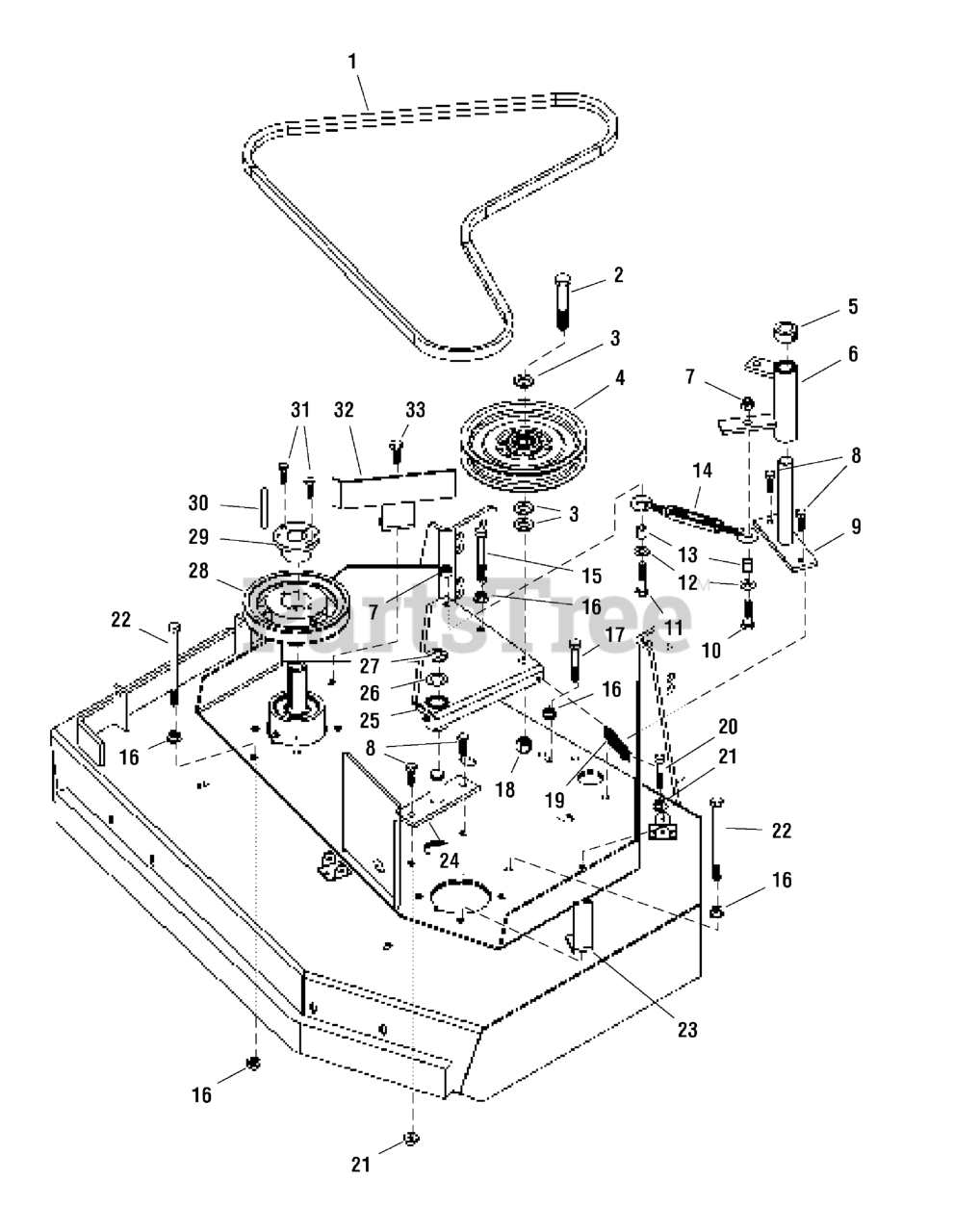

32" & 36" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

1

Ferris 5021251

BELT
(Superseded to 5021251SM)

Note: (36" models)

$40.99

$

Usually ships in 2-12 days

0

1

Ferris 5021390

BELT

Note: (32" Deck)

$36.99

$

Usually ships in 2-12 days

0

2

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

3

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

4

Ferris 5021096

PULLEY, Backside Idler
(Superseded to 5021096SM)

Note: (36" models)

$109.99

$

Usually ships in 2-12 days

0

4

Ferris 5021369

IDLER PULLEY
(Superseded to 5021369SM)

Note: (32" Deck)

$73.99

$

Usually ships in 2-12 days

0

5

Ferris 5010116

COLLAR, 3/4" Set
(Superseded to 5010116FS)

$5.49

$

Usually ships in 2-12 days

0

6

Ferris 5042569B

BLADE ENGAGE BELL CRANK

$112.99

$

Usually ships in 2-12 days

0

6

Ferris 5023344

BUSHING, .75 X 1.00 X 1.00, PLASTIC
(Superseded to 5023344SM)

Note: (was 5020875P)

$9.49

$

Usually ships in 2-12 days

0

7

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

8

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

9

Ferris 5042560B

BLADE ENGAGE PIVOT

$26.99

$

Usually ships in 2-12 days

0

10

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

12

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5041600

SLEEVE
(Superseded to 5041600FS)

$5.99

$

Usually ships in 2-12 days

0

14

Ferris 5041852

TURNBUCKLE ASSY

$40.99

$

Usually ships in 2-12 days

0

15

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 5025128

NUT, 3/8-16 Hex Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

17

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 4 left!

0

18

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

19

Ferris 5020639

SPRING, Extension
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

20

Ferris 5025011X12

BOLT, 5/16-18 x 1-1/2
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

21

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

22

Ferris 5025013X40

BOLT, 3/8-16 x 5
(Superseded to 5025013X40SM)

$4.49

$

Usually ships in 2-12 days

0

23

Ferris 5042969B

BELT GUIDE

Note: (32" model only)

$

$

Currently unavailable

24

Ferris 5041629B

IDLER MOUNT

$26.99

$

Usually ships in 2-12 days

0

25

Ferris 5042563B

CLUTCH PIVOT PLATE

$

$

Currently unavailable

25

Ferris 5020874

BUSHING
(Superseded to 5020874FS)

$9.49

$

Usually ships in 2-12 days

0

26

Ferris 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

27

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

29

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, Qty 5

0

30

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

31

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

32

Ferris 5042528B

BELT GUIDE

$13.99

$

Usually ships in 2-12 days

0

33

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0
