HydroWalk DD (DDSBV) - Ferris HydroWalk DD Series Walk-Behind Mower, 18hp Briggs & Stratton Handle Bar Group Parts Diagram

HydroWalk DD Series Walk-Behind Mower, 18hp Briggs & Stratton

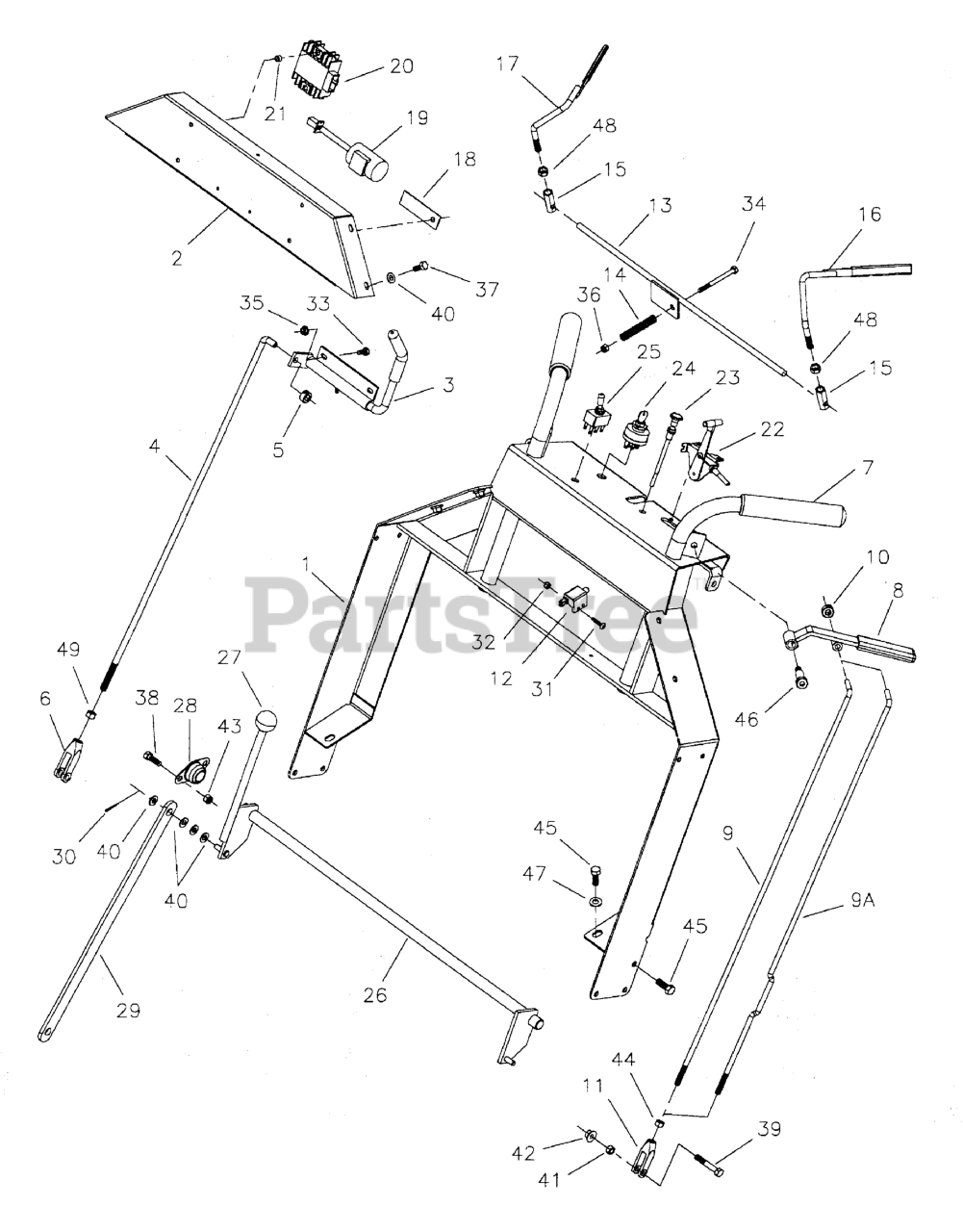

Handle Bar Group Parts Diagram

  • Title

1

Ferris 5031013B

DDS HANDLE BAR WELDMENT

Note: (S/N: 2887 & below)

$

$

Currently unavailable

1

Ferris 5045430B

DDS HANDLE BAR WELDMENT

Note: (S/N: 2888 & above)

$

$

Currently unavailable

2

Ferris 5043516B

COVER, Handle Bar

$51.99

$

Usually ships in 2-12 days

0

3

Ferris 5044715B

LEVER, Control

$75.99

$

Usually ships in 2-12 days

0

3

Ferris 5021880

GRIP, Foam
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

4

Ferris 5044717

ROD, Forward Control

$29.99

$

Usually ships in 2-12 days

0

5

Ferris 5010546

COLLAR, 3/8" Set
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

6

Ferris 5021171

CLEVIS, 3/8-24, Plastic
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

7

Ferris 5020837

GRIP, Foam
(Superseded to 5020837SM)

$12.99

$

Usually ships in 2-12 days

0

8

Ferris 5043184B

ASSM, HANDLE CONTROLS - RED

$56.99

$

Usually ships in 2-12 days

0

8

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

9

Ferris 5043461

ROD, Reverse Control
(Superseded to 5043461FS)

$29.99

$

Usually ships in 2-12 days

0

9A

Ferris 5045353

ROD, DDSKAV23 Reverse-Left

$29.99

$

Usually ships in 2-12 days

0

10

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

11

Ferris 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

12

Ferris 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

$14.99

$

In Stock, only 1 left!

0

13

Ferris 5043424

SWITCH ROD

$51.99

$

Usually ships in 2-12 days

0

14

Ferris 5020637

SPRING, Compression
(Superseded to 5020637YP)

$5.99

$

Usually ships in 2-12 days

0

15

Ferris 5043417

HEX ADJUSTER

$

$

Currently unavailable

16

Ferris 5049038

ASSM, OPERATOR PRESENCE, LH

$52.99

$

Usually ships in 2-12 days

0

16

Ferris 5021490

GRIP, Vinyl
(Superseded to 5021490SM)

$4.49

$

In Stock, Qty 8

0

17

Ferris 5049039

ASSM, OPERATOR PRESENCE, RH

$49.99

$

Usually ships in 2-12 days

0

18

Ferris 5044674B

Condenser Hold Down

Note: (14HP Kawasaki only)

$

$

Currently unavailable

19

CONDENSER, Kawasaki #21013-2064

Note: (14HP Only)

$

$

Not available

20

REGULATOR, Kawasaki #21066-2071

Note: (14HP)

$

$

Not available

20

REGULATOR, Kawasaki #21066-2070

Note: (17HP Single)

$

$

Not available

21

Ferris 5021878

SPACER, .25 X .37 X .25
(Superseded to 5021878YP)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5021151

CABLE, Throttle, 31"

Note: (Kawasaki)

$55.99

$

Usually ships in 2-12 days

0

22

Ferris 5021662

CABLE, Throttle, 54"

Note: (Briggs)

$80.99

$

Usually ships in 2-12 days

0

23

Ferris 5021675

CABLE, CHOKE CONTROL, 45

Note: (Briggs)

$63.99

$

In Stock, only 1 left!

0

23

Ferris 5021675

CABLE, CHOKE CONTROL, 45

Note: (23HP Kawasaki only)

$63.99

$

In Stock, only 1 left!

0

23

Ferris 5048473

CABLE, CHOKE CONTROL, 27.5"

Note: (15HP & 17HP Kawasaki only)

$

$

Currently unavailable

24

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

24

Ferris 5021842

SWITCH, Ignition, Complete
(Superseded to 5021842SM)

Note: (Manual Start)

$37.99

$

Usually ships in 2-12 days

0

25

Ferris 5021545

SWITCH, Electric Clutch
(Superseded to 5021545SM)

Note: (S/N: 2887 & below)

$68.99

$

In Stock, only 2 left!

0

25

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

Note: (S/N: 2888 & above)

$33.99

$

In Stock, Qty 20+

0

26

Ferris 5043084B

SHAFT, Brake Handle

$193.99

$

Usually ships in 2-12 days

0

27

Ferris 5021733

KNOB
(Superseded to 5021733SM)

$9.49

$

In Stock, only 2 left!

0

28

Ferris 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

29

Ferris 5043452B

Brake Push Rod

$40.99

$

Usually ships in 2-12 days

0

30

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

31

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

32

Ferris 5025271

NUT, #10-24 Hex Nylon Lock
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

33

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

34

Ferris 5025010X24

BOLT, 1/4-20 x 3
(Superseded to 5025010X24YP)

$3.99

$

Usually ships in 2-12 days

0

35

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

36

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

37

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

38

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

39

Ferris 5025011X16

BOLT, 5/16-18 X 2
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

40

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

41

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

42

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

43

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

44

Ferris 5025033

NUT, 5/16-24 Hex
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

45

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

46

Ferris 5025220

SHOULDER BOLT, 1/2 x 1-1/2
(Superseded to 5025220SM)

$11.99

$

Usually ships in 2-12 days

0

47

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

48

Ferris 5025034

NUT, 3/8-16 Hex
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

49

Ferris 5025035

NUT, 3/8-24 Hex
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0
