HydroWalk DD (DD61BVE) - Ferris HydroWalk DD Series 61" Walk-Behind Mower, 18hp Briggs & Stratton 61" Mower Deck - Complete Parts Diagram

HydroWalk DD Series 61" Walk-Behind Mower, 18hp Briggs & Stratton

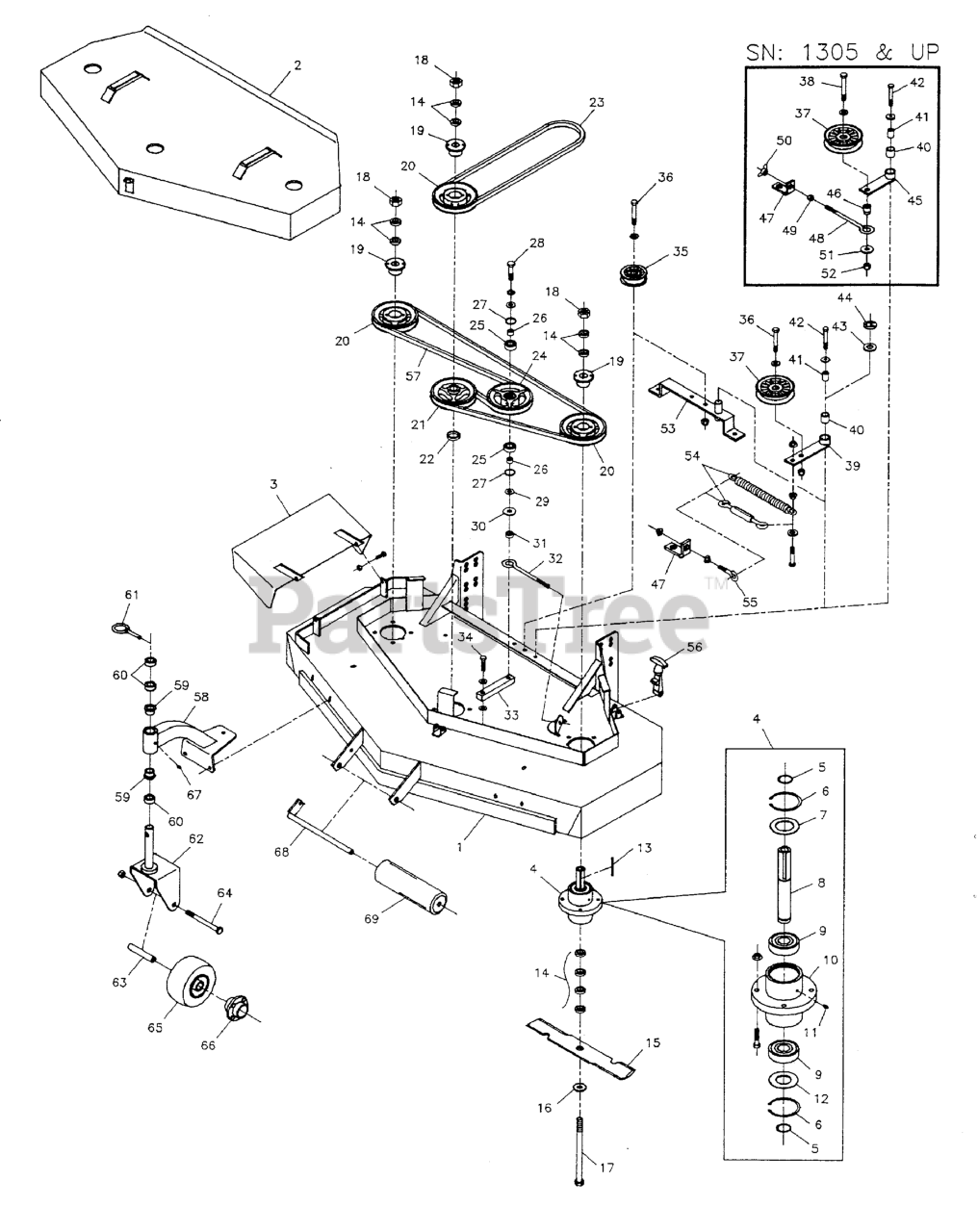

61" Mower Deck - Complete Parts Diagram

  • Title

1

Ferris 5630724

61" MOWER HOUSING ASSEMBLY

Note: (Includes safety decals)

$1994.99

$

Usually ships in 2-12 days

0

2

Ferris 5030725B

61" DECK GUARD

$

$

Currently unavailable

3

Ferris 5041668B

CHUTE, DISCHARGE WELDMENT

$131.99

$

Usually ships in 2-12 days

0

4

Ferris 5030301

SPINDLE ASSEMBLY, Complete
(Superseded to 5061033SM)

$269.99

$

Usually ships in 2-12 days

0

5

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5020866

SNAP RING, Internal
(Superseded to 5020866SM)

$5.99

$

In Stock, only 2 left!

0

7

Ferris 5041653

SPINDLE WASHER, Top

$10.99

$

Usually ships in 2-12 days

0

8

Ferris 5041480

SPINDLE SHAFT
(Superseded to 5041480SM)

$112.99

$

Usually ships in 2-12 days

0

9

Ferris 5020828

BEARING
(Superseded to 5020828SM)

$36.99

$

In Stock, only 2 left!

0

10

Ferris 5030293

SPINDLE HOUSING

$

$

Not available

11

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

12

Ferris 5041672

SPINDLE WASHER, Bottom

$15.99

$

Usually ships in 2-12 days

0

13

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

14

Ferris 5041477

SPACER, .63 x 1.06 x .23
(Superseded to 5041477SM)

$5.99

$

Usually ships in 2-12 days

0

15

Ferris 5020842

MOWER BLADE, 21"
(Superseded to 5020842ASM)

$28.99

$

In Stock, only 3 left!

0

16

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

17

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

18

Ferris 5025040

NUT, 5/8-11 Hex
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

19

Ferris 5020819

BUSHING, Tapered Hub
(Superseded to 5020819SM)

$26.99

$

In Stock, only 4 left!

0

20

Ferris 5020814

PULLEY, Spindle

$82.99

$

Usually ships in 2-12 days

0

21

Ferris 5041478

Pulley

$106.99

$

Usually ships in 2-12 days

0

22

Ferris 5041484

SPACER, 1.00 X 1.25 X .25
(Superseded to 5041484FS)

$8.99

$

Usually ships in 2-12 days

0

23

Ferris 5021510

BELT, Deck Drive

$85.99

$

Usually ships in 2-12 days

0

24

Ferris 5030819

IDLER PULLEY, Complete

$148.99

$

Usually ships in 2-12 days

0

24

Ferris 5041481

PULLEY, Idler
(Superseded to 5041481FS)

$98.99

$

Usually ships in 2-12 days

0

25

Ferris 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

26

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0

27

Ferris 5020865

SNAP RING, Internal
(Superseded to 5020865FS)

$2.99

$

Usually ships in 2-12 days

0

28

Ferris 5025018X18

BOLT, 1/2-20 X 2-1/4 GD5 CZ
(Superseded to 5025018X18SM)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

Note: (S/N: 1304 & below)

$2.99

$

Usually ships in 2-12 days

0

29

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (S/N: 1305 & above)

$3.99

$

In Stock, Qty 12

0

30

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

Note: (S/N: 1305 & above)

$3.99

$

In Stock, only 2 left!

0

31

Ferris 5044609

SPACER, .52 X 1.00 X .38
(Superseded to 5044609SM)

Note: (S/N: 1305 & above)

$6.49

$

Usually ships in 2-12 days

0

32

Ferris 5021811

EYEBOLT, 3/8" x 8"
(Superseded to 5021811SM)

$8.49

$

In Stock, Qty 12

0

32

Ferris 5041671

J-BOLT

$9.49

$

Usually ships in 2-12 days

0

33

Ferris 5044610B

ARM, Idler

$41.99

$

Usually ships in 2-12 days

0

33

Ferris 5041622

IDLER ARM

Note: (S/N: 1304 & below)

$

$

Not available

34

Ferris 5025016X14

BOLT, 7/16-20 X 1-3/4" GD.5
(Superseded to 5025016X14YP)

$5.99

$

Usually ships in 2-12 days

0

35

Ferris 5044099

PULLEY, Idler

$55.99

$

Usually ships in 2-12 days

0

36

Ferris 5025018X18

BOLT, 1/2-20 X 2-1/4 GD5 CZ
(Superseded to 5025018X18SM)

$3.99

$

Usually ships in 2-12 days

0

37

Ferris 5044098

PULLEY, Idler

$72.99

$

Usually ships in 2-12 days

0

38

Ferris 5025018X24

BOLT, 1/2-20 x 3
(Superseded to 5025018X24SM)

$4.99

$

Usually ships in 2-12 days

0

39

Ferris 5043104B

Idler Arm

$39.99

$

Usually ships in 2-12 days

0

39

Ferris 5044452B

Idler Arm

Note: (S/N: 274 - 1304)

$19.99

$

Usually ships in 2-12 days

0

40

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

41

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

42

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

43

Ferris 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

44

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

45

Ferris 5044687B

ARM, Idler

$

$

Currently unavailable

46

Ferris 5021168

INSERT, Bearing Shoulder
(Superseded to 5021168FS)

$10.99

$

In Stock, only 2 left!

0

47

Ferris 5042142B

SPRING ANCHOR
(Superseded to 5042142BFS)

$12.99

$

Usually ships in 2-12 days

0

48

Ferris 5021811

EYEBOLT, 3/8" x 8"
(Superseded to 5021811SM)

$8.49

$

In Stock, Qty 12

0

49

Ferris 5025034

NUT, 3/8-16 Hex
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

50

Ferris 5025143

NUT, 3/8-16 Wing Nylon Lock

$4.99

$

Usually ships in 2-12 days

0

51

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

52

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

53

Ferris 5043102

Idler Mount

$

$

Currently unavailable

54

Ferris 5021103

SPRING, Extension
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

54

Ferris 5020943

Turnbuckle
(Superseded to 5041852)

Note: S/N: 274-1304

$40.99

$

Usually ships in 2-12 days

0

55

EYEBOLT

$

$

Not available

56

Ferris 5020841X1

RUBBER LATCH
(Superseded to 5020841X1SM)

$23.99

$

Usually ships in 2-12 days

0

57

Ferris 5020824

BELT, Blade Spindle
(Superseded to 5020824SM)

$112.99

$

Usually ships in 2-12 days

0

58

Ferris 5043887

CASTER MOUNT, Complete
(Superseded to 5043887FS)

$251.99

$

Usually ships in 2-12 days

0

59

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

60

Ferris 5041476

SPACER, 1.02 x 1.56 x .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

61

Ferris 5020655

PIN, Lynch
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

62

Ferris 5041702B

YOKE, Caster

$253.99

$

Usually ships in 2-12 days

0

63

Ferris 5041657

AXLE, Caster Wheel
(Superseded to 5041657SM)

$13.99

$

Usually ships in 2-12 days

0

64

Ferris 5025017X44

BOLT, 1/2-13 x 5-1/2
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 3 left!

0

65

Ferris 5021181

WHEEL & TIRE ASSEMBLY, White, 9 x 3.5 x 4, Complete
(Superseded to 5021181SSM)

$100.99

$

In Stock, only 4 left!

0

66

Ferris 5021181X4

4 BOLT HUB W/ BEARING

$

$

Currently unavailable

66

Ferris 21262

Hub Complete (Stamped T)

$

$

Currently unavailable

67

Ferris 121729

GREASE FITTING

$

$

Currently unavailable

68

Ferris 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

Note: SECURED W/ 5025013X8 & 5101414

$46.99

$

In Stock, only 2 left!

0

69

Ferris 5020785

ROLLER
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 20+

0
