HydroWalk DD (5901019) - Ferris HydroWalk DD Series 48" Walk-Behind Mower, 14hp Kawasaki Transaxle Drive Group Parts Diagram

HydroWalk DD Series 48" Walk-Behind Mower, 14hp Kawasaki

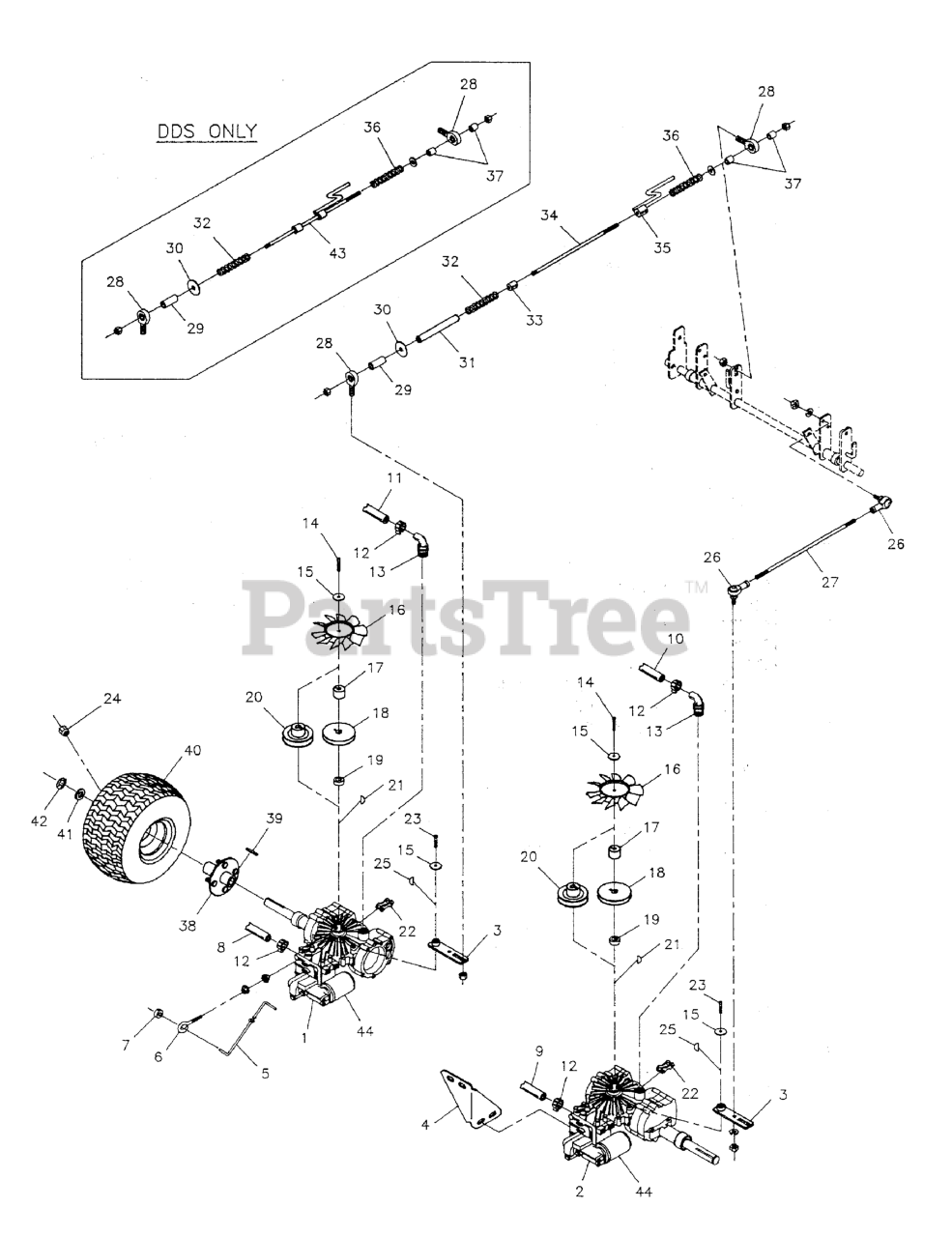

Transaxle Drive Group Parts Diagram

  • Title

1

Ferris 5021423

Transmission Right Side

$

$

Currently unavailable

2

Ferris 5021424

Transmission Left Side
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

3

Ferris 5043442B

Stroke Arm

$79.99

$

Usually ships in 2-12 days

0

4

Ferris 5043124B

BRACE, Transmission

$27.99

$

Usually ships in 2-12 days

0

5

Ferris 5043454B

LEVER, Dump Valve
(Superseded to 5043454)

$66.99

$

Usually ships in 2-12 days

0

6

Ferris 5025189X32

EYEBOLT, 1/4-20 x 4

$4.49

$

In Stock, only 2 left!

0

7

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

8

Ferris 5050860X35

HOSE, 3/8" PUSH-LOCK, 35.00"
(Superseded to 5050860X35FS)

$29.99

$

Usually ships in 2-12 days

0

9

Ferris 5050860X26

HOSE, 3/8 PUSH-LOCK, 26.00
(Superseded to 5050860X26FS)

$22.99

$

Usually ships in 2-12 days

0

10

Ferris 5050860X37

HOSE, 3/8" PUSH-LOCK, 37.00"
(Superseded to 5050860X37FS)

$31.99

$

Usually ships in 2-12 days

0

11

Ferris 5050860X43

HOSE, 3/8" PUSH-LOCK, 43.00"

$34.99

$

Usually ships in 2-12 days

0

12

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

13

Ferris 5021423X1

FITTING, 7/8" O-Ring - 3/8" Hose, 90 Degree

$

$

Currently unavailable

14

Ferris 5025268

BOLT, Allen Head, 1/4-20 x 1-3/4
(Superseded to 5025268SM)

$

$

Not available

15

Ferris 5044577

WASHER, .265 x 1.50 x .109
(Superseded to 5044577SM)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 5021081

FAN

$23.99

$

Usually ships in 2-12 days

0

17

Ferris 5042128

Fan Pulley Spacer

$68.99

$

Usually ships in 2-12 days

0

18

Ferris 5043073

Pulley 17mm Bore

$

$

Currently unavailable

18

Ferris 5043647

PULLEY, Transmission Input
(Superseded to 5043647SM)

Note: (S/N: 628 & above)

$

$

Not available

19

Ferris 5043088

SPACER, .67 x 1.25 x .50

$67.99

$

Usually ships in 2-12 days

0

20

Ferris 5043647

PULLEY, Transmission Input
(Superseded to 5043647SM)

$

$

Not available

21

Ferris 5021839

KEY, Hi-Pro Woodruff

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5021426

LINK, Connecting
(Superseded to 5021426FS)

$6.99

$

Usually ships in 2-12 days

0

23

Ferris 5025269

BOLT, Allen Head, 1/4-20 x 1-1/2

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

25

Ferris 5020149

KEY, #3 Woodruff

$2.49

$

Usually ships in 2-12 days

0

26

Ferris 5104495

BALL JOINT 5/16-24 LH FEMALE W/STUD, BR
(Superseded to 5104495YP)

$22.99

$

Usually ships in 2-12 days

0

27

Ferris 5043458

ROD, Reverse

$6.99

$

Usually ships in 2-12 days

0

28

Ferris 5043500

BALL JOINT

$

$

Currently unavailable

29

Ferris 5043296

BUSHING, Brass
(Superseded to 5043296FS)

$11.99

$

Usually ships in 2-12 days

0

29

Ferris 5022036

BUSHING, Brass

Note: (S/N: 649 & above)

$

$

Currently unavailable

30

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

31

Ferris 5043460B

Spring Guide

$

$

Currently unavailable

32

Ferris 5021494

SPRING, Compression
(Superseded to 5021494SM)

$13.99

$

Usually ships in 2-12 days

0

32

Ferris 5022035

SPRING, Compression
(Superseded to 5022035SM)

Note: (S/N: 649 & above)

$17.99

$

Usually ships in 2-12 days

0

33

Ferris 5043439

Double Set Collar

$

$

Currently unavailable

34

Ferris 5043459

Control Rod
(Superseded to 5043459FS)

$12.99

$

Usually ships in 2-12 days

0

35

Ferris 5043502

Anit-Rotation Weldment

$

$

Currently unavailable

36

Ferris 5020006

SPRING, Compression

$6.99

$

Usually ships in 2-12 days

0

37

Ferris 5041600

SLEEVE
(Superseded to 5041600FS)

$5.99

$

Usually ships in 2-12 days

0

38

Ferris 5043070

Hub

$116.99

$

Usually ships in 2-12 days

0

39

Ferris 5050407X9

KEY, 1/4 SQ. X 2-1/2
(Superseded to 5050407X20SM)

$5.99

$

In Stock, only 1 left!

0

40

Ferris 5021045

TIRE & WHEEL ASSEMBLY, 18 X 8.5 X 8

$251.99

$

Usually ships in 2-12 days

0

40

Ferris 5021074

Tire Only

$210.99

$

Usually ships in 2-12 days

0

40

Ferris 5021075

Rim Only

$

$

Currently unavailable

40A

Ferris 5021207

WHEEL & TIRE ASSEMBLY, 18 x 7.50 x 8

Note: (DD48 & DDS48 only)

$219.99

$

Usually ships in 2-12 days

0

41

Ferris 5020929

SHIM, 1.0 X 1.5 X 0.125
(Superseded to 84005968)

$2.99

$

Usually ships in 2-12 days

0

42

Ferris 5021210

RING, Retaining

$2.49

$

Usually ships in 2-12 days

0

43

Ferris 5044729

ROD, Stroke Arm

$70.99

$

Usually ships in 2-12 days

0

44

Ferris 5021068X1

FILTER, Transmission Oil

$47.99

$

Usually ships in 2-12 days

0
