HydroWalk DD (5901019) - Ferris HydroWalk DD Series 48" Walk-Behind Mower, 14hp Kawasaki Engine & PTO Group (Multi-Piece Engine Deck) Parts Diagram

HydroWalk DD Series 48" Walk-Behind Mower, 14hp Kawasaki

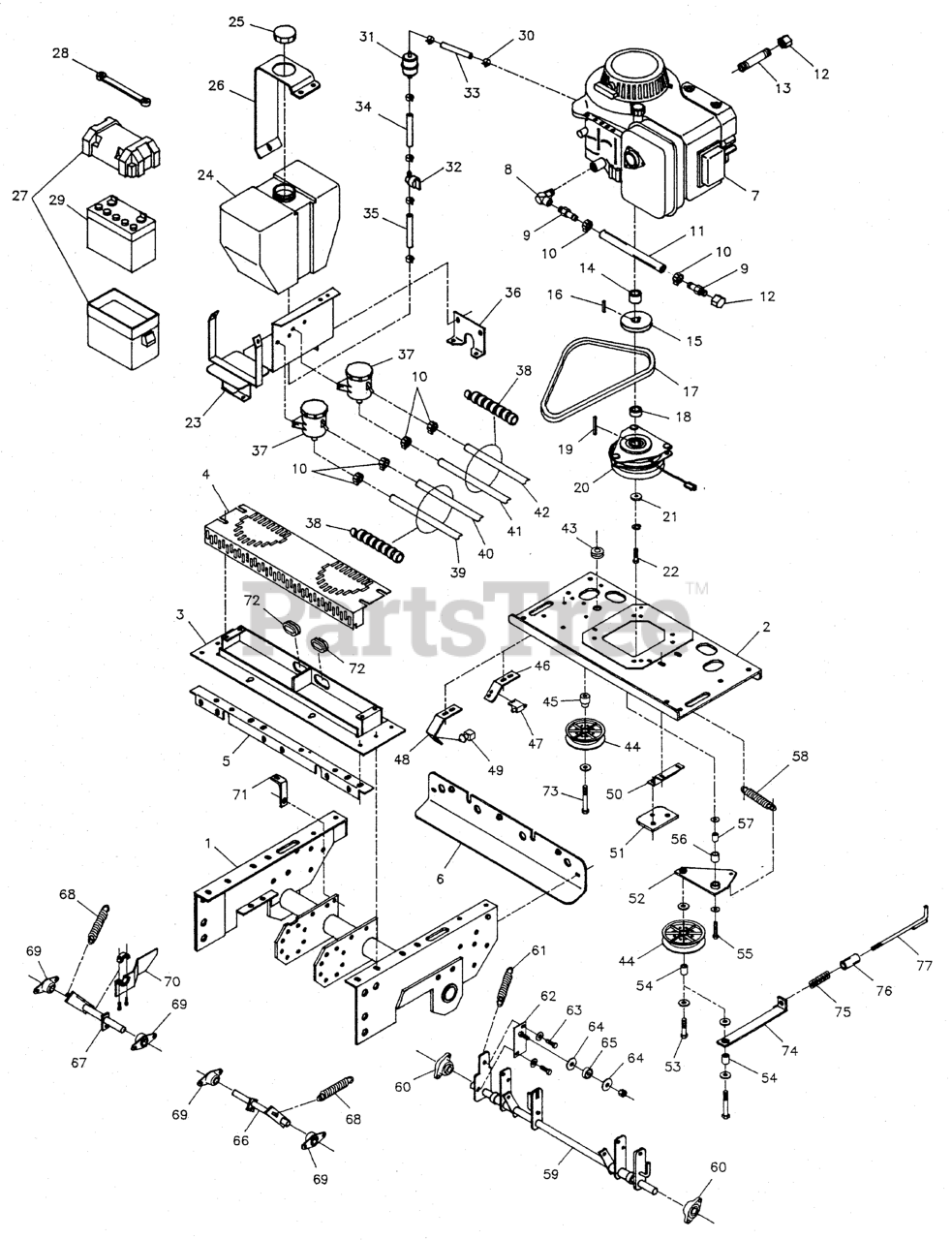

Engine & PTO Group (Multi-Piece Engine Deck) Parts Diagram

  • Title

1

Ferris 5043467B

ENGINE DECK

$598.99

$

Usually ships in 2-12 days

0

2

Ferris 5030714B

Engine Deck Plate

$

$

Currently unavailable

3

Ferris 5043466B

FAN SHROUD

$142.99

$

Usually ships in 2-12 days

0

4

Ferris 5043445B

FAN COVER

$

$

Currently unavailable

5

Ferris 5043474B

SUPPORT, Engine Deck

$

$

Currently unavailable

6

Ferris 5043515

Engine Deck Back Plate
(Superseded to 5043515B)

$176.99

$

Usually ships in 2-12 days

0

7

ENGINE, 14HP Kawasaki (Model FC420V)

$

$

Not available

7

ENGINE, 17HP Kawasaki Electric (Model FC540V)

$

$

Not available

7

ENGINE, 18HP Briggs Electric (Model 350777)

$

$

Not available

7

ENGINE, 14HP Kohler (Model CV145)

$

$

Not available

8

Ferris 5021465

90 Degree Fitting

$

$

Currently unavailable

9

Ferris 5021372

FITTING, 3/8NPT-1/2" Hose, Straight
(Superseded to 5021372SM)

$15.99

$

Usually ships in 2-12 days

0

10

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

11

Ferris 5050857X18

1/2" Hose, 18" Long
(Superseded to 5050857X18FS)

$10.99

$

Usually ships in 2-12 days

0

12

Ferris 5021466

CAP, 3/8 NPT
(Superseded to 5021466SM)

$6.49

$

Usually ships in 2-12 days

0

13

Ferris 5021122

Pipe Nipple

Note: (Briggs & Kohler)

$

$

Currently unavailable

14

Ferris 5043518

SPACER, 1.00 X 1.50 X 1.12

$12.99

$

Usually ships in 2-12 days

0

15

Ferris 5042129

PULLEY, Crankshaft

$94.99

$

Usually ships in 2-12 days

0

16

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

17

Ferris 5021427

Belt

$66.99

$

In Stock, only 2 left!

0

18

Ferris 5025162

WASHER, 1" SAE
(Superseded to 5025162SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

20

Ferris 5021083

CLUTCH, Electric, 1" Shaft
(Superseded to 5021083SM)

$683.99

$

Usually ships in 2-12 days

0

21

Ferris 5042132

SPACER, .45 x 1.62 x .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

22

Ferris 5025243

BOLT, M10 x 70MM

$4.49

$

Usually ships in 2-12 days

0

23

Ferris 5030707

Gas Tank Mount (Electric)

$

$

Currently unavailable

23

Ferris 5030705

Gas Tank Mount (Manual)

$

$

Currently unavailable

24

Ferris 5021437

FUEL TANK, 4 Gallon

$160.99

$

Usually ships in 2-12 days

0

25

Ferris 5021468

CAP, Fuel Tank

$

$

Not available

26

Ferris 5043312

FUEL TANK STRAP

$

$

Currently unavailable

27

Ferris 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

28

Ferris 5021670

RUBBER STRAP
(Superseded to 5021670SM)

$13.99

$

In Stock, only 1 left!

0

29

BATTERY, Lawn & Garden, 12V (BCIU1, 340 CCA)

$

$

Not available

30

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

31

Ferris 5021178X3

FUEL FILTER
(Superseded to 5021178X3FS)

$12.99

$

In Stock, Qty 14

0

32

Ferris 5021235

VALVE, Fuel Shut-Off

$

$

Currently unavailable

33

Ferris 5050831X3

1/4" Fuel Line, 3" Long

Note: (Kawasaki)

$

$

Not available

33

Ferris 5050831X4

1/4" Fuel Line, 4" Long
(Superseded to 5050831X4YP)

Note: (Kohler)

$6.49

$

Usually ships in 2-12 days

0

33

Fuel Line

$

$

Not available

34

Ferris 5050831X3

1/4" Fuel Line, 3" Long

Note: (Kawasaki)

$

$

Not available

34

Ferris 5050831X7

1/4" Fuel Line, 7" Long
(Superseded to 5050831X7YP)

Note: (Kohler)

$5.99

$

Usually ships in 2-12 days

0

34

Ferris 5050831X4

1/4" Fuel Line, 4" Long
(Superseded to 5050831X4YP)

Note: (Briggs)

$6.49

$

Usually ships in 2-12 days

0

35

Ferris 5050831X11

1/4" Fuel Line, 11" Long
(Superseded to 5050831X11FS)

Note: (Kawasaki)

$6.49

$

Usually ships in 2-12 days

0

35

Ferris 5050831X9

HOSE, 1/4" FUEL, 9.00"
(Superseded to 5050831X9YP)

Note: (Kohler)

$6.99

$

Usually ships in 2-12 days

0

35

Ferris 5050831X12

1/4" Fuel Line, 12" Long
(Superseded to 5050831X12SM)

Note: (Briggs)

$5.99

$

Usually ships in 2-12 days

0

36

Ferris 5043477B

Gas Tank Mount Leg

$

$

Currently unavailable

37

Ferris 5021491

RESERVOIR, Hydraulic

$52.99

$

Usually ships in 2-12 days

0

38

Ferris 5050837X10

Protective Coil, 10" Long

$6.49

$

Usually ships in 2-12 days

0

39

Ferris 5050860X35

HOSE, 3/8" PUSH-LOCK, 35.00"
(Superseded to 5050860X35FS)

$29.99

$

Usually ships in 2-12 days

0

40

Ferris 5050860X43

HOSE, 3/8" PUSH-LOCK, 43.00"

$34.99

$

Usually ships in 2-12 days

0

41

Ferris 5050860X26

HOSE, 3/8 PUSH-LOCK, 26.00
(Superseded to 5050860X26FS)

$22.99

$

Usually ships in 2-12 days

0

42

Ferris 5050860X37

HOSE, 3/8" PUSH-LOCK, 37.00"
(Superseded to 5050860X37FS)

$31.99

$

Usually ships in 2-12 days

0

43

Ferris 5021077

GROMMET, 1/2"

$

$

Currently unavailable

44

Ferris 5021002

PULLEY, Backside Idler
(Superseded to 5021002SM)

$40.99

$

In Stock, only 3 left!

0

45

Ferris 5021168

INSERT, Bearing Shoulder
(Superseded to 5021168FS)

$10.99

$

In Stock, only 2 left!

0

46

Ferris 5043470B

MOUNT, Switch

$6.99

$

Usually ships in 2-12 days

0

47

Ferris 5021451

SWITCH, Plunger, NO
(Superseded to 5021451SM)

$11.99

$

In Stock, Qty 13

0

47

Ferris 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

Note: (Kohler)

$14.99

$

In Stock, only 1 left!

0

48

Ferris 5044454B

Switch Mount Plate

Note: (Briggs Only)

$

$

Currently unavailable

49

Ferris 5021765

Parking Brake Switch

Note: (Briggs Only)

$

$

Currently unavailable

50

Ferris 5044441B

ANCHOR, Clutch

$16.99

$

Usually ships in 2-12 days

0

51

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

52

Ferris 5043473B

ASSM, MOUNT, GROUND DRIVE IDLER - RED

Note: (Includes 5020876B bushing and 5022289 rivet.)

$94.99

$

Usually ships in 2-12 days

0

53

Ferris 5025018X12

BOLT, 1/2-20 X 1-1/2, GD5 CZ
(Superseded to 5025018X12FS)

$4.99

$

Usually ships in 2-12 days

0

54

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0

55

Ferris 5025011X12

BOLT, 5/16-18 x 1-1/2
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

56

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

57

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

58

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, Qty 10

0

59

Ferris 5043503

Control Shaft

$

$

Currently unavailable

60

Ferris 5021499

BEARING, Flange
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

61

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

Note: (S/N: 1101 & below)

$8.49

$

In Stock, Qty 10

0

62

Ferris 5044597B

Lock Mount Plate

Note: (S/N: 1102 & above)

$

$

Currently unavailable

63

Ferris 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

Note: (S/N: 1102 & above)

$3.99

$

In Stock, Qty 20+

0

64

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

Note: (S/N: 1102 & above)

$3.99

$

In Stock, only 2 left!

0

65

Ferris 5021807

Bearing

Note: (S/N: 1102 & above)

$15.99

$

In Stock, only 1 left!

0

66

Ferris 5043435B

SHAFT, Brake, Left

$136.99

$

Usually ships in 2-12 days

0

67

Ferris 5043349B

Brake Shaft Right

$136.99

$

Usually ships in 2-12 days

0

68

Ferris 5021103

SPRING, Extension
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

69

Ferris 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

70

Ferris 5044598B

Neutral Lock Plate

Note: (S/N: 1102 & above)

$

$

Currently unavailable

71

Ferris 5043510B

Deck Support

$

$

Currently unavailable

72

Ferris 5021397

GROMMET, 1-1/4"
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

73

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

74

Ferris 5043481B

Belt Disengagement Link

$19.99

$

Usually ships in 2-12 days

0

75

Ferris 5021004

SPRING, Compression

$5.99

$

Usually ships in 2-12 days

0

76

Ferris 5050933X7

5/8" Hose, 1-5/16" Long

$

$

Currently unavailable

77

Ferris 5043480

Belt Disengagement Rod

$21.99

$

Usually ships in 2-12 days

0
