HydroWalk DD (5900080) - Ferris HydroWalk DD Series Walk-Behind Mower, 23hp Kawasaki (SN: 3585 & Above) Engine Frame, Engine & PTO Group - 23HP (S/N: 3585 & above) Parts Diagram

HydroWalk DD Series Walk-Behind Mower, 23hp Kawasaki

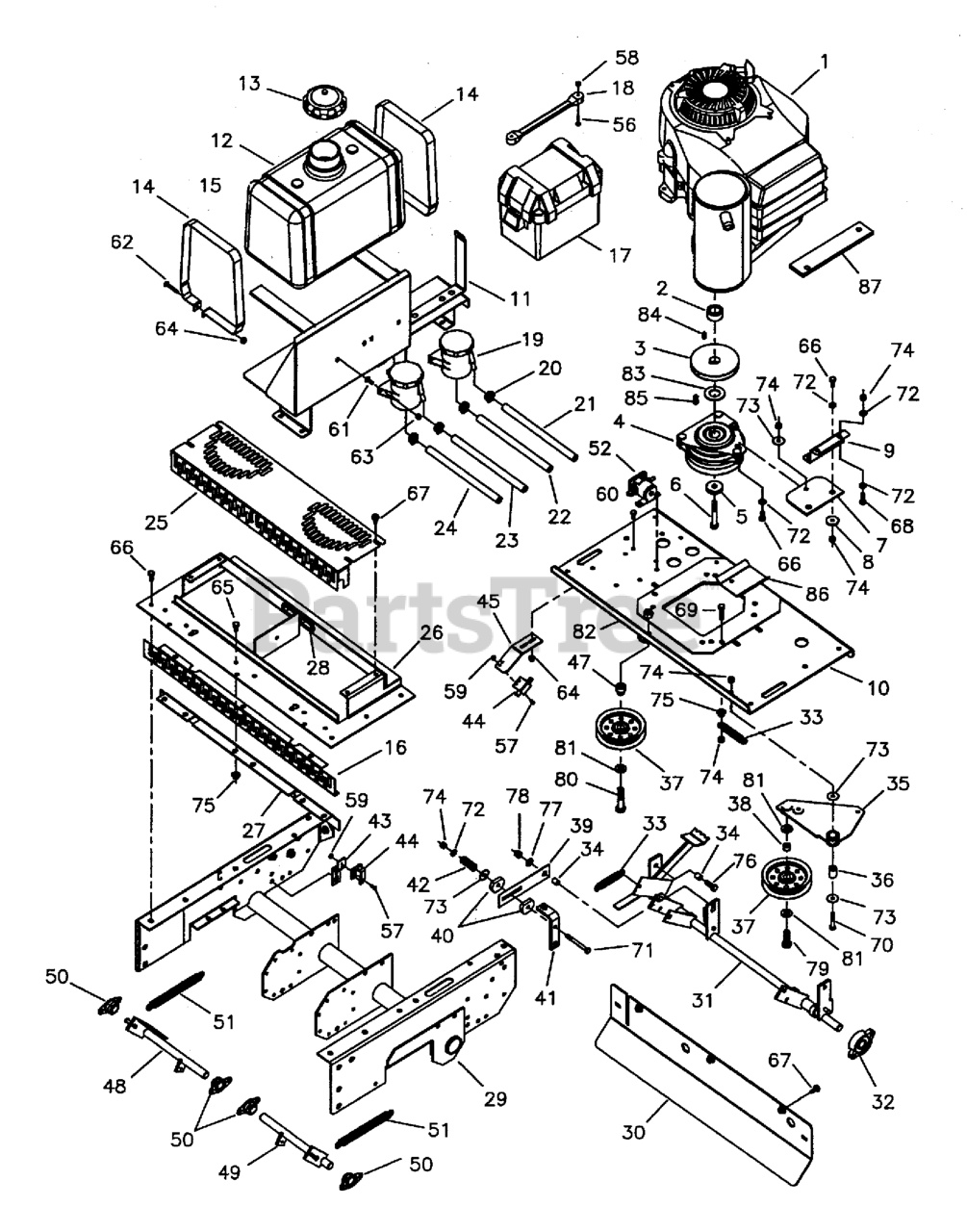

Engine Frame, Engine & PTO Group - 23HP (S/N: 3585 & above) Parts Diagram

  • Title

1

ENGINE, 23HP Kawasaki (Model FH680V)

$

$

Not available

-

Ferris 5022300

MANIFOLD, DDSKAV23

Note: (not shown)

$

$

Currently unavailable

-

Ferris 5022304X1

MUFFLER, DDSKAV23

Note: (not shown)

$

$

Currently unavailable

-

Ferris 5045340B

BRACKET, Muffler Mount

Note: (not shown)

$60.99

$

Usually ships in 2-12 days

0

-

Ferris 5045341B

SHIELD, Manifold Heat

$98.99

$

Usually ships in 2-12 days

0

2

Ferris 5045321

SPACER, 1.13 x 1.75 x 1.50

$18.99

$

Usually ships in 2-12 days

0

3

Ferris 5045376

PULLEY, DDSKAV23 Crankshaft

$86.99

$

Usually ships in 2-12 days

0

4

Ferris 5021145SM

CLUTCH, Electric, 1-1/8" Shaft

$687.99

$

Usually ships in 2-12 days

0

5

Ferris 5042132

SPACER, .45 x 1.62 x .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

6

Ferris 5045289

CRANKSHAFT BOLT, 7/16 x 2-1/2
(Superseded to 5102864)

$5.49

$

In Stock, only 1 left!

0

7

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

8

Ferris 5044617

WASHER, Clutch Anchor
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

9

Ferris 5044441B

ANCHOR, Clutch

$16.99

$

Usually ships in 2-12 days

0

10

Ferris 5044699B

PLATE, Engine Deck

$

$

Currently unavailable

11

Ferris 5046015B

MOUNT, Fuel Tank

$188.99

$

Usually ships in 2-12 days

0

12

Ferris 5410708

TANK, FUEL, PLASTIC, 5 GALLON W/ FUEL LINE

$240.99

$

Usually ships in 2-12 days

0

-

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

13

Ferris 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

14

Ferris 5044694B

FUEL TANK STRAP

$31.99

$

Usually ships in 2-12 days

0

15

Ferris 5021877

RUBBER PAD
(Superseded to 5021877SM)

$7.49

$

Usually ships in 2-12 days

0

16

Ferris 5046021B

ENGINE DECK GUARD

$

$

Currently unavailable

17

Ferris 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

18

Ferris 5021670

RUBBER STRAP
(Superseded to 5021670SM)

$13.99

$

In Stock, only 1 left!

0

19

Ferris 5021491

RESERVOIR, Hydraulic

$52.99

$

Usually ships in 2-12 days

0

20

Ferris 5021392

CLAMP, #6 Hose
(Superseded to 5021392SM)

$4.99

$

Usually ships in 2-12 days

0

21

Ferris 5050860X37

HOSE, 3/8" PUSH-LOCK, 37.00"
(Superseded to 5050860X37FS)

$31.99

$

Usually ships in 2-12 days

0

22

Ferris 5050860X26

HOSE, 3/8 PUSH-LOCK, 26.00
(Superseded to 5050860X26FS)

$22.99

$

Usually ships in 2-12 days

0

23

Ferris 5050860X43

HOSE, 3/8" PUSH-LOCK, 43.00"

$34.99

$

Usually ships in 2-12 days

0

24

Ferris 5050860X35

HOSE, 3/8" PUSH-LOCK, 35.00"
(Superseded to 5050860X35FS)

$29.99

$

Usually ships in 2-12 days

0

25

Ferris 5043445B

FAN COVER

$

$

Currently unavailable

26

Ferris 5043466B

FAN SHROUD

$142.99

$

Usually ships in 2-12 days

0

27

Ferris 5043474B

SUPPORT, Engine Deck

$

$

Currently unavailable

28

Ferris 5021397

GROMMET, 1-1/4"
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

29

Ferris 5043467B

ENGINE DECK

$598.99

$

Usually ships in 2-12 days

0

30

Ferris 5044700B

PLATE, Engine Deck Back

$182.99

$

Usually ships in 2-12 days

0

31

Ferris 5031035B

SHAFT, Control

$227.99

$

Usually ships in 2-12 days

0

32

Ferris 5021499

BEARING, Flange
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

33

Ferris 5020807

SPRING, Extension
(Superseded to 5020807SM)

$8.49

$

In Stock, Qty 10

0

34

Ferris 5041600

SLEEVE
(Superseded to 5041600FS)

$5.99

$

Usually ships in 2-12 days

0

35

Ferris 5043473B

ASSM, MOUNT, GROUND DRIVE IDLER - RED

Note: (Includes 5020876B bushing and 5022289 rivet.)

$94.99

$

Usually ships in 2-12 days

0

-

Ferris 5020876B

BUSHING, Brass
(Superseded to 5020876BSM)

$11.99

$

In Stock, only 1 left!

0

-

Ferris 5022289

RIVET, Plastic Push-In
(Superseded to 5022289SM)

$3.99

$

Usually ships in 2-12 days

0

36

Ferris 5042134

SPACER, .32 x .75 x 1.06
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

37

Ferris 5021002

PULLEY, Backside Idler
(Superseded to 5021002SM)

$40.99

$

In Stock, only 3 left!

0

38

Ferris 5020870

INSERT, Bearing
(Superseded to 5020870SM)

$5.49

$

In Stock, Qty 12

0

39

Ferris 5044716

PLATE, Friction

$19.99

$

Usually ships in 2-12 days

0

40

Ferris 5044726

PUCK, Brake
(Superseded to 5104176)

$11.99

$

Usually ships in 2-12 days

0

41

Ferris 5044702B

SUPPORT, Engine Deck

$

$

Currently unavailable

42

Ferris 5021773

SPRING, Compression
(Superseded to 5021773FS)

$10.99

$

Usually ships in 2-12 days

0

43

Ferris 5044710B

MOUNT, Switch

$27.99

$

Usually ships in 2-12 days

0

44

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

45

Ferris 5043470B

MOUNT, Switch

$6.99

$

Usually ships in 2-12 days

0

46

Ferris 5021465

FITTING, 90 Degree, 3/8" NPT Swivel

Note: (not shown)

$

$

Currently unavailable

47

Ferris 5021168

INSERT, Bearing Shoulder
(Superseded to 5021168FS)

$10.99

$

In Stock, only 2 left!

0

48

Ferris 5043349B

SHAFT, Brake, Right

$136.99

$

Usually ships in 2-12 days

0

49

Ferris 5043435B

SHAFT, Brake, Left

$136.99

$

Usually ships in 2-12 days

0

50

Ferris 5021098

BEARING, Flange
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

51

Ferris 5021103

SPRING, Extension
(Superseded to 5021103SM)

$19.99

$

Usually ships in 2-12 days

0

52

Ferris 5020801

SOLENOID, Starter
(Superseded to 5020801SM)

$133.99

$

Usually ships in 2-12 days

0

53

Ferris 5050857X18

1/2" Hose, 18" Long
(Superseded to 5050857X18FS)

Note: (not shown)

$10.99

$

Usually ships in 2-12 days

0

54

Ferris 5021372

FITTING, 3/8NPT-1/2" Hose, Straight
(Superseded to 5021372SM)

Note: (not shown)

$15.99

$

Usually ships in 2-12 days

0

55

Ferris 5021466

CAP, 3/8 NPT
(Superseded to 5021466SM)

Note: (not shown)

$6.49

$

Usually ships in 2-12 days

0

56

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

57

Ferris 5025179X4

SCREW, #10-24 x 1/2

$

$

Currently unavailable

58

Ferris 5025271

NUT, #10-24 Hex Nylon Lock
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

59

Ferris 5025029

NUT, #10-24 Hex
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

60

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

61

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 2 left!

0

62

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

63

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

64

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

65

Ferris 5025011X5

BOLT, 5/16-18 x 5/8
(Superseded to 5025011X5YP)

$3.49

$

Usually ships in 2-12 days

0

66

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

67

Ferris 5025059X6

BOLT, Self-Tapping, 5/16-18 x 3/4
(Superseded to 5025059X6FS)

$3.49

$

Usually ships in 2-12 days

0

68

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

69

Ferris 5025055X12

BOLT, 5/16-18 x 1-1/2 TFL
(Superseded to 5025055X12SM)

$3.99

$

In Stock, only 2 left!

0

70

Ferris 5025011X14

BOLT, 5/16-18 x 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

71

Ferris 5025011X24

BOLT, 5/16-18 x 3
(Superseded to 5025011X24SM)

$3.99

$

Usually ships in 2-12 days

0

72

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

73

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

74

Ferris 5025057

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

75

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

76

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

77

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

78

Ferris 5025097

NUT, 3/8-24 Hex Nylon Lock
(Superseded to 5025097FS)

$2.49

$

Usually ships in 2-12 days

0

79

Ferris 5025018X12

BOLT, 1/2-20 X 1-1/2, GD5 CZ
(Superseded to 5025018X12FS)

$4.99

$

Usually ships in 2-12 days

0

80

Ferris 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

81

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

82

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

83

Ferris 5022303

SPACER, DDSKAV23 Clutch

$3.49

$

Usually ships in 2-12 days

0

84

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

85

Ferris 5050407X1

KEY, 1/4 SQ. X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

86

Ferris 5045202B

PAN, Oil Drain

$18.99

$

Usually ships in 2-12 days

0

87

Ferris 5045352B

SPACER, Engine Block

$

$

Currently unavailable
