HydroDrive (5900806) - Ferris HydroDrive Series 48" Walk-Behind Mower, 16hp Fuel Tank & Mount Group Parts Diagram

HydroDrive Series 48" Walk-Behind Mower, 16hp

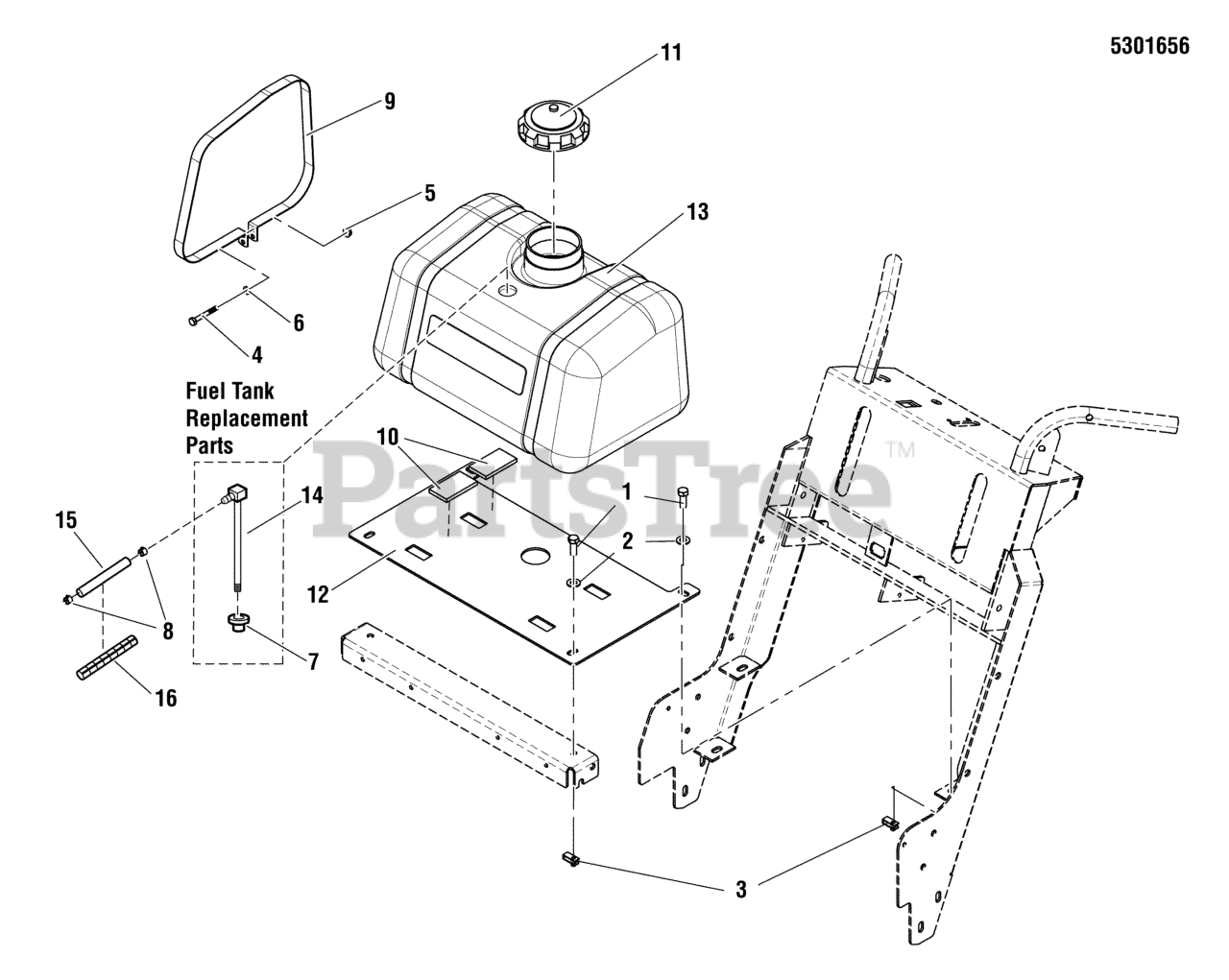

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

2

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5022649

BODY CLIP, 3/8-16 X .688" DEEP
(Superseded to 5022649FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025010X14

BOLT, 1/4-20 X 1-3/4", GD5
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

5

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

6

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

7

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 2 left!

0

8

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

9

Ferris 5403445A

STRAP, FUEL TANK
(Superseded to 5403445AYP)

$22.99

$

Usually ships in 2-12 days

0

10

Ferris 5101270

PAD, RUBBER MOUNT, 1/4 MAT
(Superseded to 5101270FS)

$7.49

$

Usually ships in 2-12 days

0

11

Ferris 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

12

Ferris 5403229B

PLATE, FUEL TANK MOUNT - RED

$

$

Currently unavailable

13

Ferris 5101231

TANK, FUEL, WALK BEHIND

$139.99

$

Usually ships in 2-12 days

0

14

Ferris 5101261

PICKUP TUBE ASM, FUEL TANK, 8.0" (SV)

$35.99

$

Usually ships in 2-12 days

0

15

Ferris 5050831X19

HOSE, 1/4" FUEL, 19.00"
(Superseded to 5050831X19FS)

$6.49

$

Usually ships in 2-12 days

0

16

Ferris 5050833X17

WIRE LOOM, 1/2" ID, 17" LONG

$5.49

$

Usually ships in 2-12 days

0
