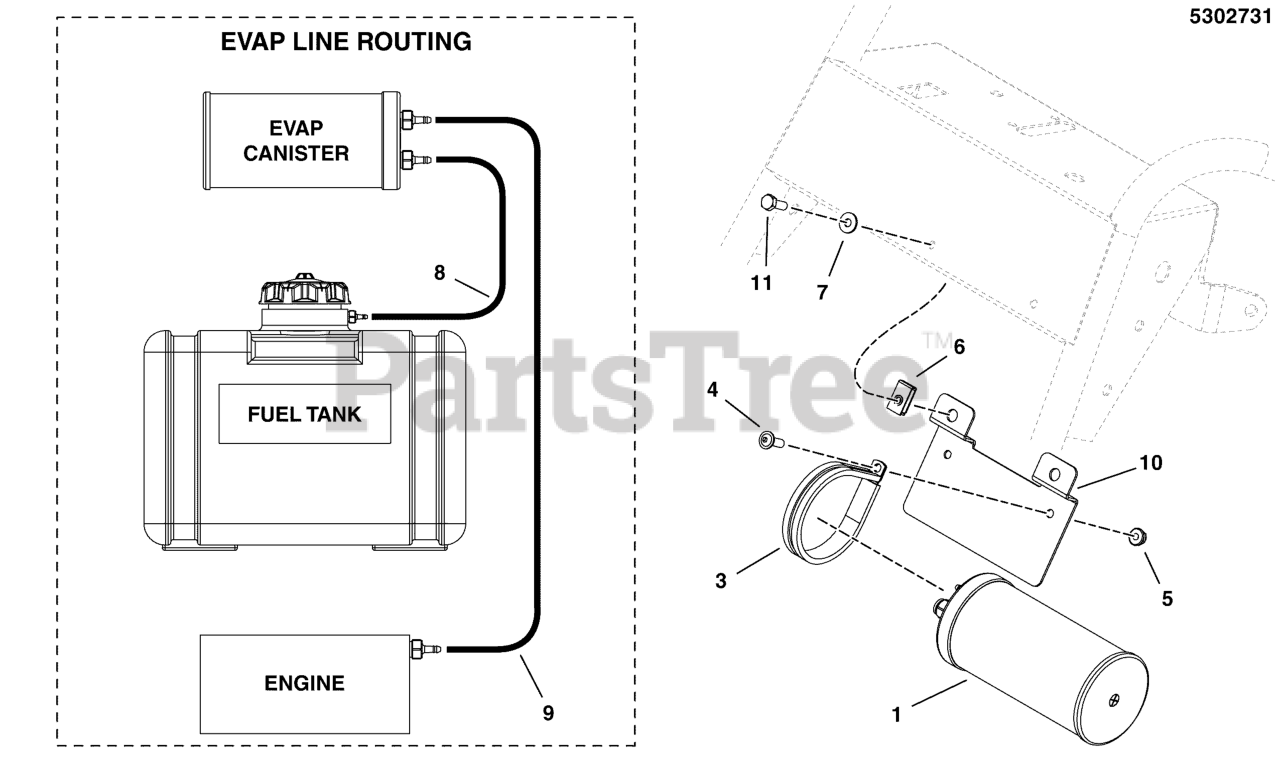

HydroCut (5900963) - Ferris HydroCut Series 36" Walk-Behind Mower, 16hp Kawasaki Evap Canister Group Parts Diagram

HydroCut Series 36" Walk-Behind Mower, 16hp Kawasaki

Evap Canister Group Parts Diagram

  • Title

1

Ferris 313036

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$217.99

$

Usually ships in 2-12 days

0

2

DECAL, EPA CERT, WALKS

Note: (Located on frame near Serial Tag)

$

$

Not available

3

Ferris 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$7.99

$

Usually ships in 2-12 days

0

4

Ferris 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

6

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 7700552X11P5

HOSE, VAPOR, 5MM ID, 11.50 LG
(Superseded to 7700552X11P5YP)

$7.49

$

Usually ships in 2-12 days

0

9

Ferris 7700552X60

HOSE, VAPOR, 5MM ID, 60.00 LG

$11.99

$

Usually ships in 2-12 days

0

10

Ferris 5408348A

PLATE, CARB CANISTER MOUNT, HC/PACER

$

$

Currently unavailable

11

Ferris 5025010X6

BOLT, 1/4-20 X 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0
