HydroCut (5900963) - Ferris HydroCut Series 36" Walk-Behind Mower, 16hp Kawasaki 36" Mower Deck - Housing, Spindles, Blades & Pulleys Parts Diagram

HydroCut Series 36" Walk-Behind Mower, 16hp Kawasaki

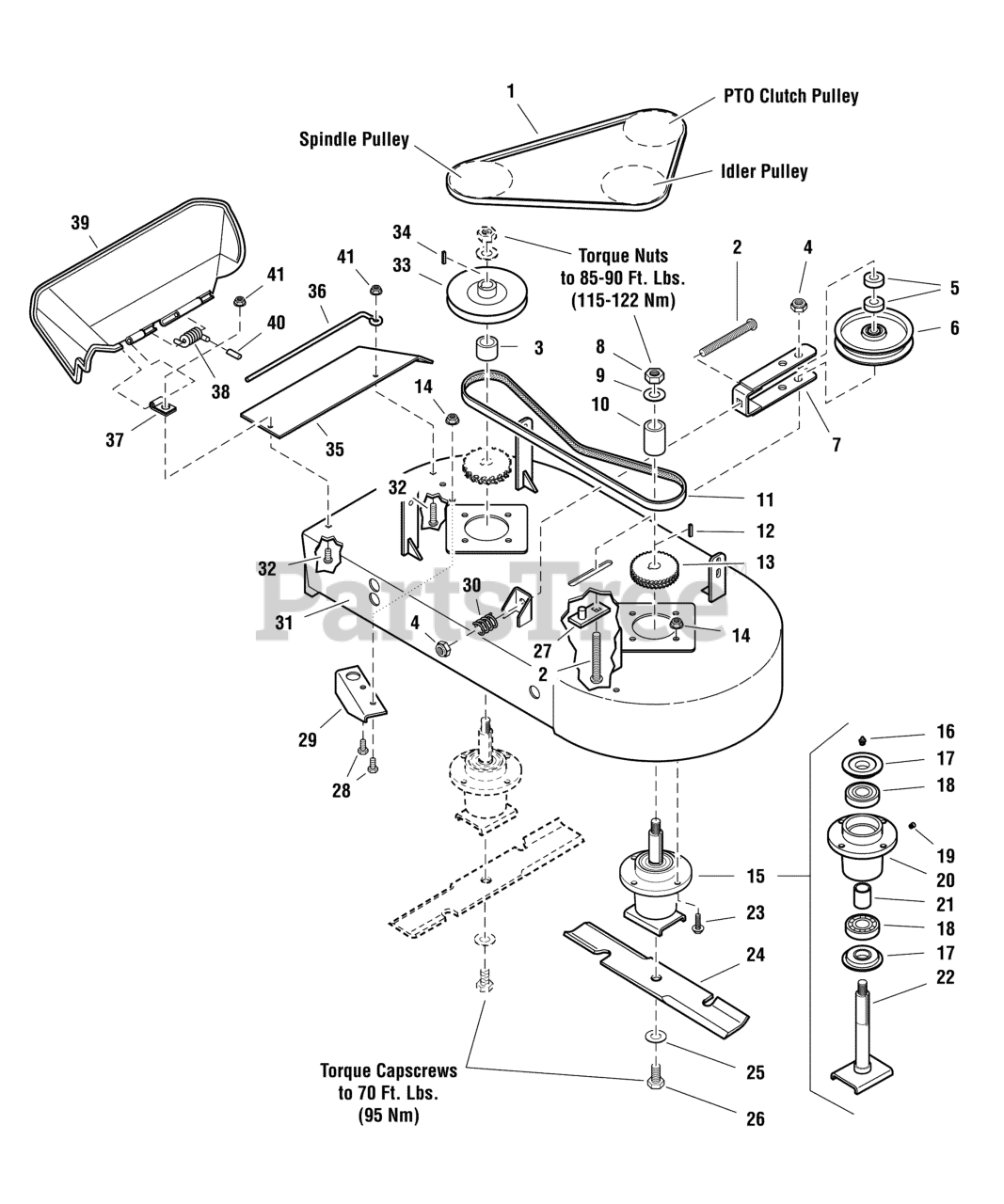

36" Mower Deck - Housing, Spindles, Blades & Pulleys Parts Diagram

  • Title

1

Ferris 5023262

BELT,#7-8390, 52

$48.99

$

Usually ships in 2-12 days

0

2

Ferris 5025324X32

BOLT, 1/2-13 X 4", CARRIAGE
(Superseded to 5025324X32FS)

$5.49

$

Usually ships in 2-12 days

0

3

Ferris 5049221

SPACER, 1.00 X 1.50 X 1.19

$14.99

$

Usually ships in 2-12 days

0

4

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5045023

SPACER, .52 X 1.00 X .44
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

6

Ferris 5023264

PULLEY, FLAT IDLER, 5.0X.75

$49.99

$

Usually ships in 2-12 days

0

7

Ferris 5048994B

WELD, IDLER PULLER

$

$

Currently unavailable

8

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

9

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 5049218

SPACER, 1.00 X 1.57 X 2.19

$22.99

$

Usually ships in 2-12 days

0

11

Ferris 5049238

BELT, SPROCKET DRIVE

$130.99

$

Usually ships in 2-12 days

0

12

Ferris 5025389

KEY, 1/4" SQ. X 3/4

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5048977

SPROCKET, GOODYEAR EAGLE PD

$326.99

$

Usually ships in 2-12 days

0

14

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5061175

ASSM, SPINDLE, BLADE SADDLE

Note: (Includes Ref. 16 - 22)

$308.99

$

Usually ships in 2-12 days

0

16

Ferris 5023329

GREASE FITTING
(Superseded to 5023329SM)

$5.49

$

In Stock, only 4 left!

0

17

Ferris 5049793

TRASH SHIELD
(Superseded to 5049793SM)

$16.99

$

In Stock, only 4 left!

0

18

Ferris 5023330

BEARING
(Superseded to 5023330SM)

$23.99

$

In Stock, Qty 20+

0

19

Ferris 5023296

RELIEF VALVE
(Superseded to 5023296SM)

$7.49

$

In Stock, only 1 left!

0

20

Ferris 5061097

SPINDLE HOUSING

$

$

Currently unavailable

21

Ferris 5061099

SPACER, 1.00 X 1.25 X 1.75
(Superseded to 5061099SM)

$11.99

$

In Stock, only 4 left!

0

22

Ferris 5061137

SPINDLE SHAFT w/ SADDLE
(Superseded to 5061137YP)

$109.99

$

Usually ships in 2-12 days

0

23

Ferris 5023156

BOLT, 5/16-18 X 1 1/4" FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

24

Ferris 5021227X2

BLADE, 18

Note: (SET OF TWO)

$53.99

$

Usually ships in 2-12 days

0

25

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

26

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5061727B

WELD, RETAINER PULLEY

$24.99

$

Usually ships in 2-12 days

0

28

Ferris 5025145X6

BOLT, 5/16-18 X 3/4", CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

29

Ferris 5048954B

PLATE, BAFFLE

$12.99

$

Usually ships in 2-12 days

0

30

Ferris 5022788

SPRING, COMPRESSION 2" MEDIUM
(Superseded to 5022788SM)

$36.99

$

In Stock, only 1 left!

0

31

Ferris 5600234

DECK SHELL W/DECALS, 36 HYDROCUT

$1282.99

$

Usually ships in 2-12 days

0

32

BOLT, 1/4-20 X 1", CARRIAGE

$

$

Not available

33

Ferris 5047638

PULLEY, SPINDLE
(Superseded to 5047638SM)

$57.99

$

Usually ships in 2-12 days

0

34

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

35

Ferris 5061511B

PLATE, CHUTE SUPPORT

$30.99

$

Usually ships in 2-12 days

0

36

Ferris 5061807B

WELD, MOUNT, DISCHARGE CHUTE

$6.99

$

Usually ships in 2-12 days

0

37

Ferris 1704873

CLAMP, WIRE, .312DIA . (1) .281 HOLE BLK
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

38

Ferris 1723938

SPRING, TORSION
(Superseded to 1723938SM)

$

$

Not available

39

Ferris 1705449

DEFLECTOR, BLACK
(Superseded to 1705449SM)

$122.99

$

In Stock, only 1 left!

0

40

Ferris 1723323

CAP, VINYL
(Superseded to 1723323SM)

$4.99

$

In Stock, only 1 left!

0

41

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0
