HydroCut (5900546) - Ferris HydroCut Series 32" Walk-Behind Mower, 15hp Kawasaki Tire & Wheel Group Parts Diagram

HydroCut Series 32" Walk-Behind Mower, 15hp Kawasaki

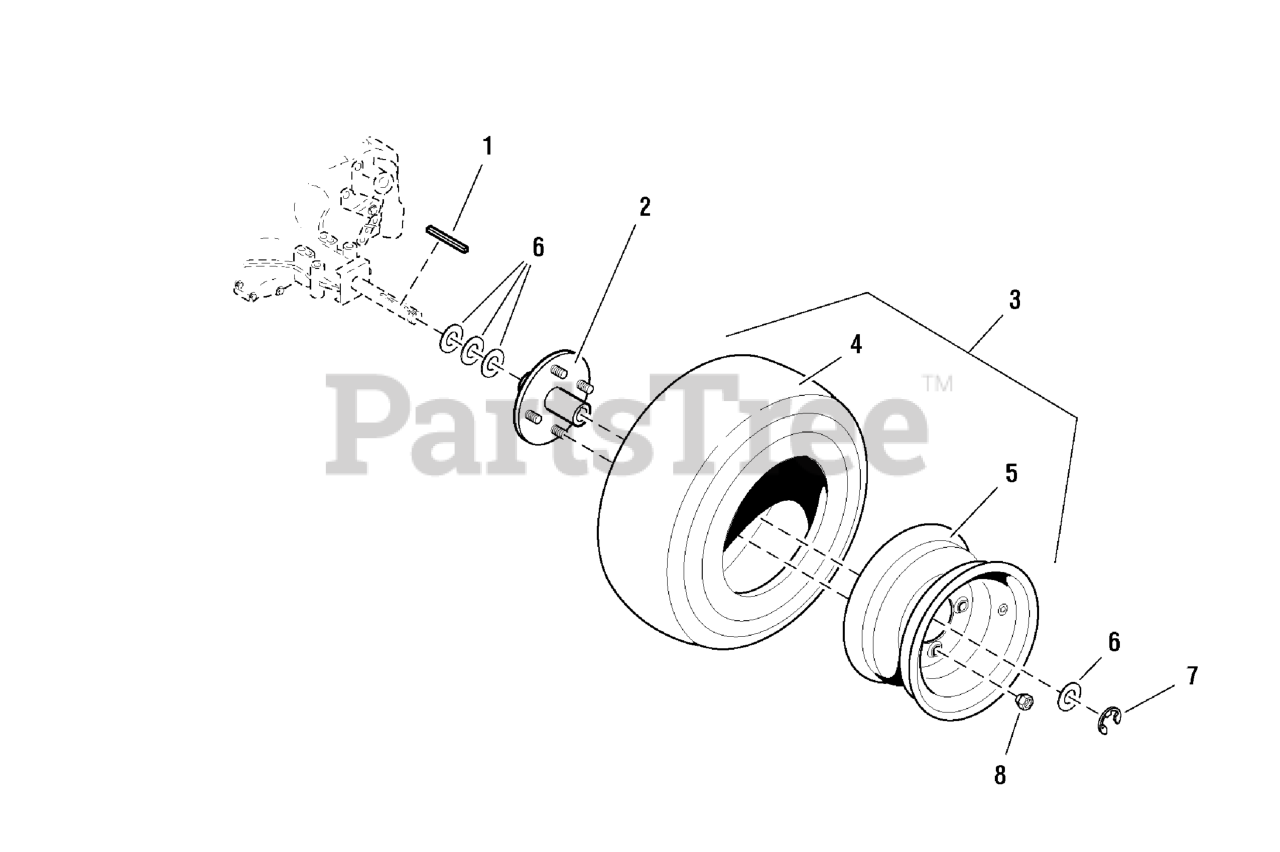

Tire & Wheel Group Parts Diagram

  • Title

1

Ferris 5048409

KEY, 3/16" SQ. X 2-1/2
(Superseded to 5048409SM)

$3.49

$

Usually ships in 2-12 days

0

2

Ferris 5048417

DRIVE HUB

Note: (Includes Ref No. 8)

$

$

Currently unavailable

3

NLA - Must order 5023104X1 and 5023104X2 individually

$

$

Not available

4

Ferris 5023104X2

TIRE, 16. x 6.5 x 8 (SV)

$99.99

$

Usually ships in 2-12 days

0

5

Ferris 5023104X1

WHEEL ASSEMBLY, 8 x 5.38 (SV)
(Superseded to 5023104X1SM)

$43.99

$

Usually ships in 2-12 days

0

6

Ferris 5025520X3

SHIM
(Superseded to 5025520X3SM)

$4.49

$

Usually ships in 2-12 days

0

7

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0
