HydroCut (5900545) - Ferris HydroCut Series 36" Walk-Behind Mower, 15hp Kawasaki 36" Mower Deck - Frame, Caster & Shield Parts Diagram

HydroCut Series 36" Walk-Behind Mower, 15hp Kawasaki

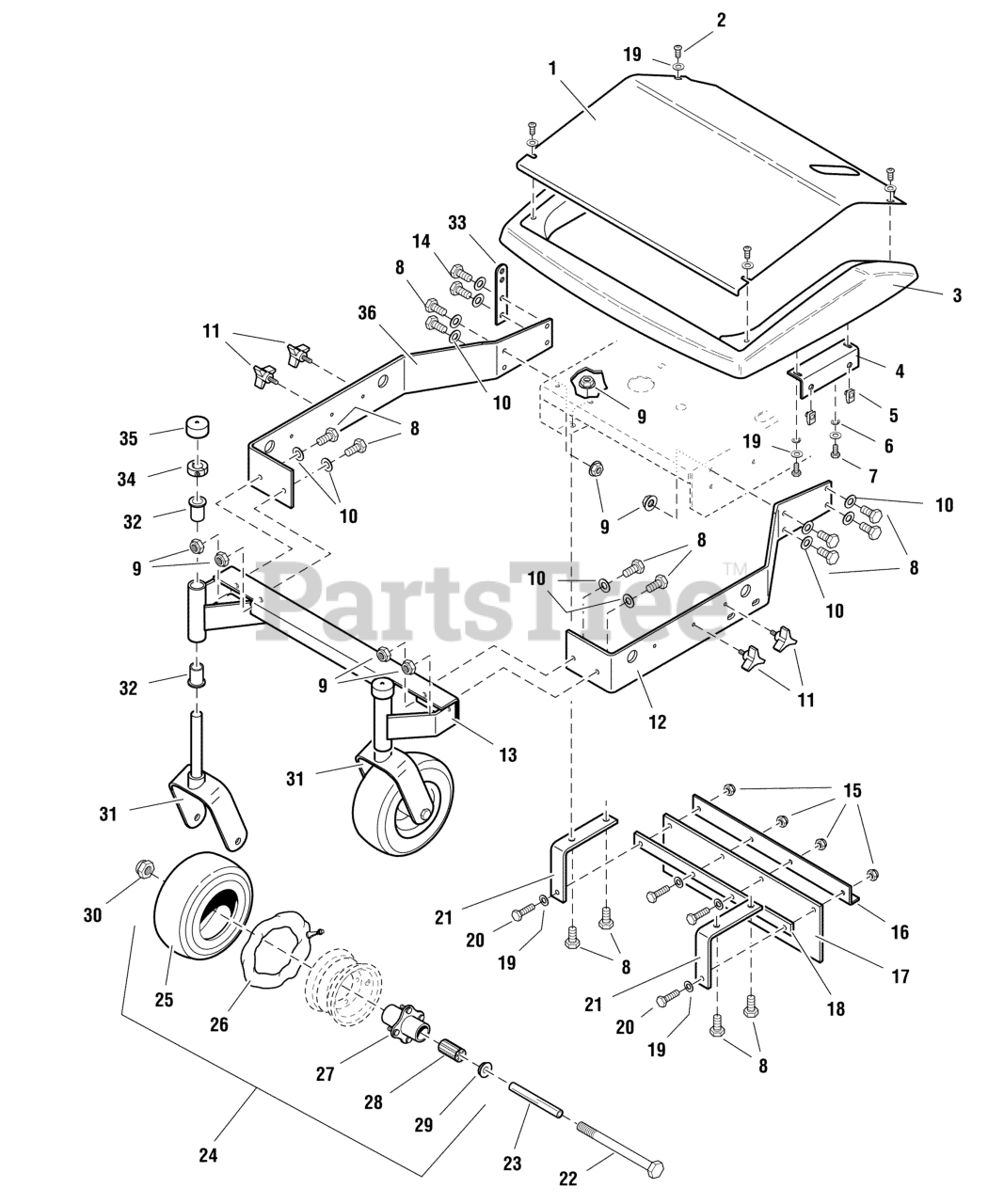

36" Mower Deck - Frame, Caster & Shield Parts Diagram

  • Title

1a

Ferris 5048145B

GUARD, INSERT

Note: (S/N: 2014433878 & Below)

$61.99

$

Usually ships in 2-12 days

0

1b

Ferris 5407385B

SHIELD INSERT

Note: (S/N: 2014433879 & Above)

$61.99

$

Usually ships in 2-12 days

0

2

Ferris 5025299X4

SCREW, 1/4-20 X 1/2" ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

3

Ferris 5048150

GUARD, MOWER DECK

$

$

Currently unavailable

4

Ferris 5048353B

BRACKET, GUARD

$23.99

$

Usually ships in 2-12 days

0

5

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

6

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 2 left!

0

7

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

8

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

9

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5102355

KNOB, PLASTIC, 5/16-18 X 1

$7.99

$

Usually ships in 2-12 days

0

12

Ferris 5047648B

RAIL, DECK FRAME - LEFT

$71.99

$

Usually ships in 2-12 days

0

13

Ferris 5049262

CASTER MOUNT FRAME, COMPLETE

Note: (Includes Ref No. 14 & 32)

$284.99

$

Usually ships in 2-12 days

0

14

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

15

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

16

Ferris 5049214B

ANGLE, DECK ARM FLAP

$21.99

$

Usually ships in 2-12 days

0

17

Ferris 5049217

FLAP, RUBBER

$40.99

$

Usually ships in 2-12 days

0

18

Ferris 5049216B

BAR, RUBBER FLAP

$17.99

$

Usually ships in 2-12 days

0

19

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5025010X10

BOLT, 1/4-20 X 1-1/4", GD5
(Superseded to 5025010X10SM)

$3.99

$

In Stock, only 4 left!

0

21

Ferris 5049215B

BRACKET, RUBBER FLAP

$

$

Currently unavailable

22

Ferris 5025017X44

BOLT, 1/2-13 X 5-1/2" GD5 YZ
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 3 left!

0

23

Ferris 5041657

AXLE, CASTER WHEEL
(Superseded to 5041657SM)

$13.99

$

Usually ships in 2-12 days

0

24

Ferris 5021181S

TIRE ASSM, 9 X 3.5 X 4, SILVER
(Superseded to 5021181SSM)

Note: (Includes Ref No. 25 - 29)

$100.99

$

In Stock, only 4 left!

0

25

Ferris 5021181X1

TIRE, Front, 9 x 3.5 x 4

$

$

Currently unavailable

26

Ferris 5021181X2

TUBE

$

$

Currently unavailable

27

Ferris 5021181SX3

HUB & BEARING ASSEMBLY, Complete, Silver
(Superseded to 5021181SX3SM)

Note: (Includes Ref No. 28 & 29)

$59.99

$

Usually ships in 2-12 days

0

28

Ferris 5021182

BEARING, ROLLER 3/4" ID X 3.25" (ONE PER TIRE)(SV)

Note: (1 per tire)

$

$

Currently unavailable

29

Ferris 5021043

RETAINER, Bearing

Note: (2 per tire)

$6.99

$

Usually ships in 2-12 days

0

30

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

31

Ferris 5048172B

WELD, CASTER YOKE

$87.99

$

Usually ships in 2-12 days

0

32

Ferris 5020823

BUSHING, FLANGE, 3/4 X 1
(Superseded to 5020823SM)

$10.99

$

In Stock, only 4 left!

0

33

Ferris 5061717B

GUARD, WIRE

$

$

Currently unavailable

34

Ferris 5010114

COLLAR, 3/4" SPLIT
(Superseded to 5010114SM)

$19.99

$

Usually ships in 2-12 days

0

35

Ferris 5023274

CAP,VINYL, 1.375 X 1
(Superseded to 5023274SM)

$5.99

$

Usually ships in 2-12 days

0

36

Ferris 5047649B

RAIL, DECK FRAME - RIGHT

$64.99

$

Usually ships in 2-12 days

0
